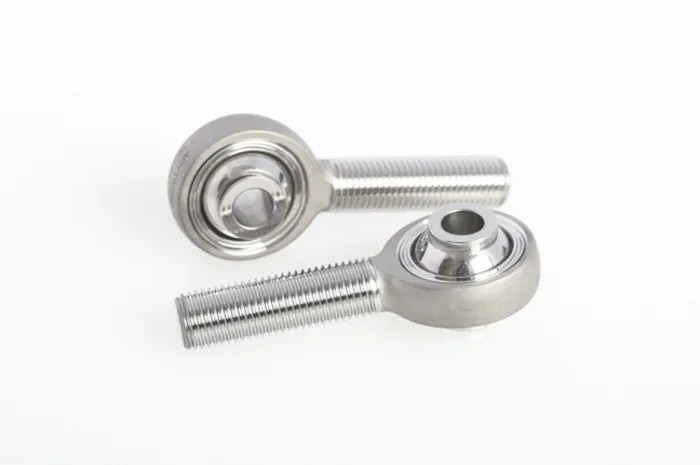

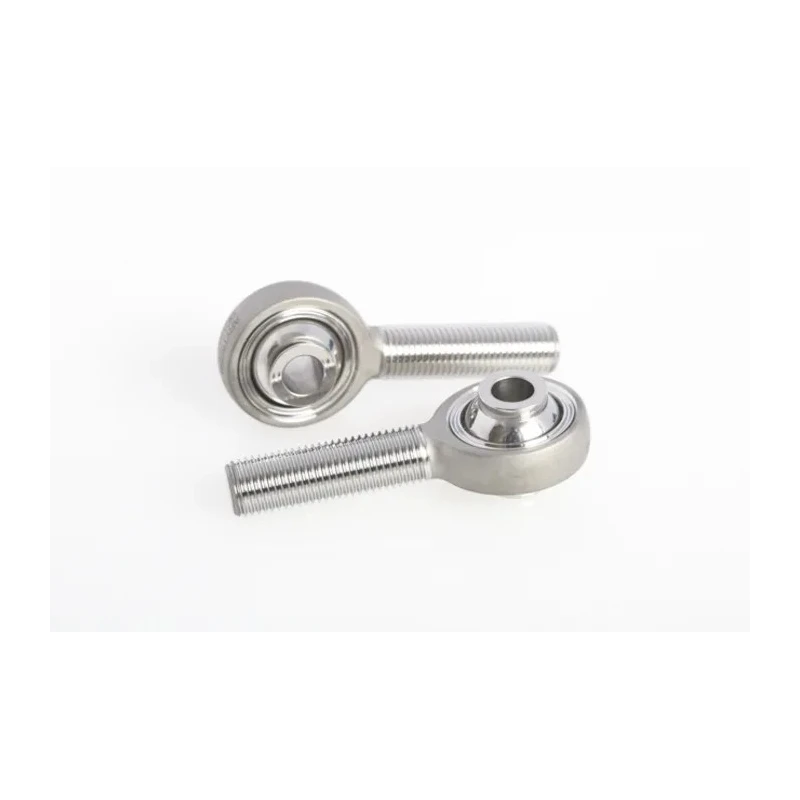

NMB 7/16-20 Male Stainless Steel Rod End Bearing UNF Thread, 7.93mm Bore ARYT5E(R)
Specifications
| Country of Origin | India |
|---|---|
| Brand | NMB |
| Material | Stainless Steel |
| Model | ARYT5E(R) |
| Overall Width | 9.02mm |
| Outside diameter | 28.58mm |
| Maximum Operating Temperature | 121°C |
| Connection Size | 7/16-20 Male |
| Minimum Operating Temperature | -54°C |
| Bore Diameter | 7.93mm |
| Thread Standard | UNF |
| Static Load Rating | 36.74kN |
| Connection Gender | Male |
Key Features
- Constructed from stainless steel materials with CRES 440C bearing and CRES 410 outer cage for enhanced corrosion resistance.
- Self-lubricating 3-piece design with Teflon coating ensures long service life and high reliability.
- Right-hand thread male connection sized 7/16-20 UNF for secure fitment in rotary bearing assemblies.
- Suitable for operating temperatures ranging from -54°C to 121°C.
- Features an outside diameter of 28.58mm and an overall width of 9.02mm.
- Static load rating of 36.74kN supports demanding mechanical and fluid power applications.
- Rod body is made from carbon manganese steel with heat treatment and surface coating for durability.
- Ideal for use on cylinder ends, linkages, shafts, and rods requiring articulating joints to accommodate angular misalignment.
Product Description
NMB ARYT5E(R) 7/16-20 Male Stainless Steel Rod End Bearing UNF Thread with 7.93mm bore diameter is designed to accommodate high misalignment in mechanical linkages and rotary assemblies.
This rod end bearing features a self-lubricating, three-piece construction combining stainless steel components including CRES 440C bearing and CRES 410 outer cage treated for heat resistance. The rod body is composed of carbon manganese steel with specialized heat treatment and surface coating to enhance strength and corrosion resistance.
With a connection size of 7/16-20 male UNF thread and an outside diameter of 28.58mm, this component offers reliable articulation and load support. It supports a static load rating of 36.74kN and can withstand operating temperatures from -54°C to 121°C, making it suitable for extreme industrial environments.
Typical applications include use on cylinder ends, shafts, rods, and linkages where angular misalignment must be compensated with a dependable articulating joint. The bearinng serves wide industry sectors including mechanical machinery, fluid power systems, construction equipment, and manufacturing automation.
Stainless steel construction with Teflon coating for durability and corrosion resistance. High misalignment capability via 3-piece self-lubricating design. Right-hand male thread connection 7/16-20 UNF ensuring strong engagement.
Broad temperature operating range from -54°C to 121°C. Robust static load rating of 36.74kN for demanding applications.
This reliable NMB Rod End Bearing supports long service life, low maintenance demands, and high reliability in critical industrial mechanical assemblies. For browsing related rotary bearing components and rod ends, refer to the Industrial Tools & Equipment Rotary Bearings & Housing Units category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The static load rating of this rod end bearing is 36.74kN, making it suitable for demanding mechanical and fluid power applications.
This model has an outside diameter of 28.58mm and an overall width of 9.02mm, with a bore diameter of 7.93mm.
It can operate within a temperature range of -54°C to 121°C, making it suitable for extreme industrial environments.
The bearing features a right-hand male connection with a 7/16-20 UNF thread, ensuring secure fitment in rotary bearing assemblies.
It is constructed from stainless steel, specifically featuring a CRES 440C bearing and a CRES 410 outer cage for enhanced corrosion resistance.
The self-lubricating three-piece design with Teflon coating ensures long service life and high reliability, reducing maintenance needs.
This bearing is ideal for use on cylinder ends, linkages, shafts, and rods that require articulating joints to accommodate angular misalignment.
The connection gender of this model is male, designed for compatibility with corresponding female threads in rotary assemblies.
The rod body is made from carbon manganese steel and undergoes heat treatment and surface coating to enhance its strength and corrosion resistance.
This rod end bearing is manufactured in India, ensuring adherence to specific quality standards.
The thread standard for this model is UNF, which is commonly used in various mechanical applications for secure connections.
The bearing's design allows for high misalignment capability, making it suitable for applications where angular misalignment must be compensated.
