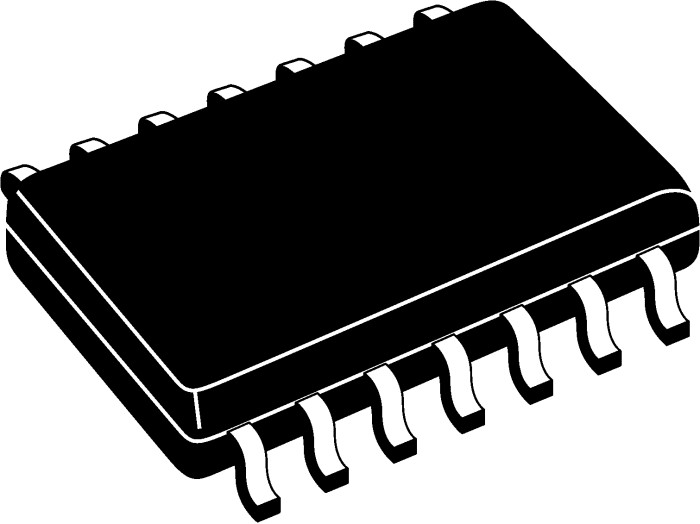

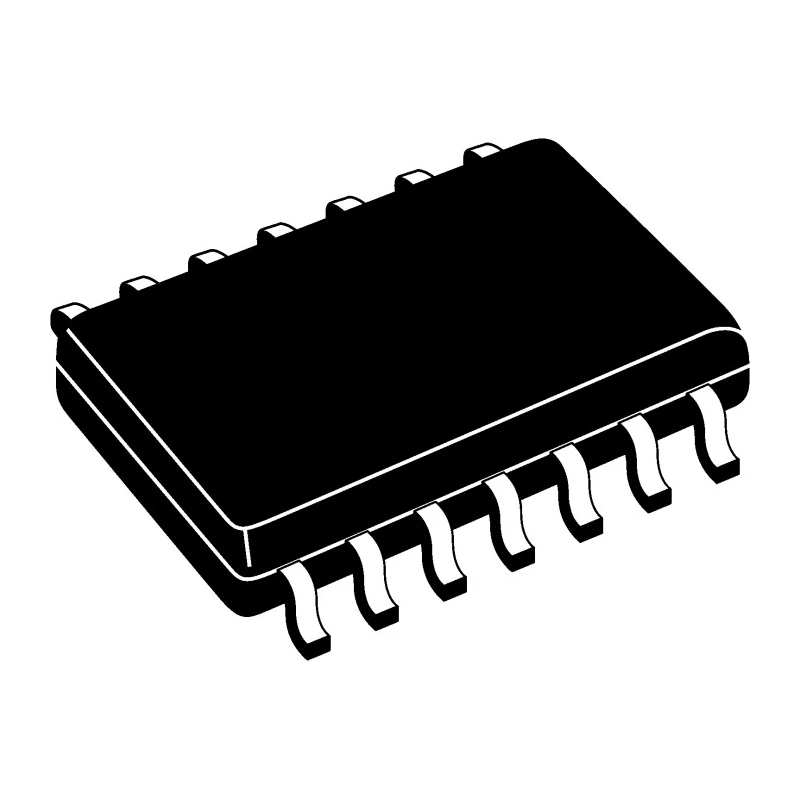

onsemi 4 2-Input NAND Logic Gate, 14-Pin SOIC MM74HC00MX

onsemi MM74HC00MX is a 4 2-input NAND logic gate IC housed in a 14-pin SOIC package designed for surface mounting on PCB boards. This device is part of the 74HC series of high-speed CMOS logic integrated circuits, offering high-performance logic functions with low power consumption. It is engineered to operate reliably across a wide voltage range from 2 V up to 6 V, making it compatible with a variety of digital circuits that require CMOS logic levels.

The MM74HC00MX IC contains four independent NAND gates, each with two inputs, enabling versatile logic design configurations within a compact and space-saving dual in-line package. It boasts a maximum propagation delay time of 23 nanoseconds at a standard load capacitance, ensuring swift signal processing for fast switching applications. The device is rated for operation between -40°C and 85°C ambient temperatures, supporting use in diverse industrial and commercial environments.

This logic gate features CMOS input and buffer output characteristics suitable for driving CMOS devices and ensuring signal integrity. It is optimized for surface mount technology with a pin pitch and package height of 1.5 mm, length of 8.75 mm, and a total pin count of 14, facilitating modern PCB assembly processes.

The MM74HC00MX is suitable for a wide array of applications including industrial automation logic control, embedded systems, digital computing projects, and consumer electronics. Its high-speed logic performance, coupled with low power consumption, enables efficient design for power-sensitive devices and circuits.

Includes 4 independent 2-input NAND gates. High-speed CMOS logic family (74HC series) for efficient digital logic operations. Operating voltage range between 2 V and 6 V for wide compatibility. Compact 14-pin SOIC surface-mount package.

Propagation delay time of 23 ns allowing fast switching. Operating temperature range from -40°C to 85°C accommodates industrial use. CMOS input and buffer output type ensuring signal stability. Not compliant with automotive standards; designed for commercial and industrial electronics.

Pin count: 14; package dimensions: height 1.5 mm, length 8.75 mm.

Ideal for electronics engineers designing logic circuits requiring reliable NAND gate functionality in compact surface-mounted form factors. Explore related semiconductor and Logic Gate products in the EnvMart catalog.
