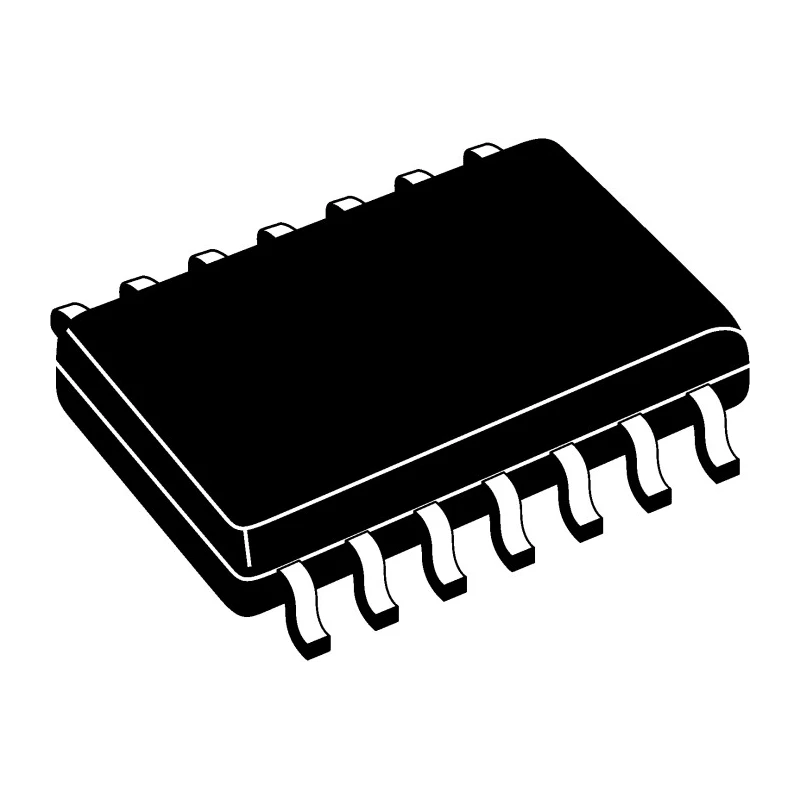

onsemi 4 2-Input NAND Logic Gate, 14-Pin SOIC MM74HC00MX 2 to 6 V 23ns High-Speed CMOS Logic

onsemi MM74HC00MX is a 4 2-Input NAND Logic Gate designed for high-speed CMOS logic applications. Operating at a voltage range from 2 V to 6 V, it provides fast logic processing with a maximum propagation delay time of 23ns, making it suitable for timing-critical electronic circuits.

This 14-pin SOIC surface mount package contains four NAND gates, each with two CMOS inputs. The device operates effectively within a temperature range of -40°C to 85°C, ensuring reliability in various industrial and commercial electronic environments.

The device is part of the 74HC family, known for compatibility with CMOS logic levels on both inputs and outputs. It supports a maximum high level output current of -5.2mA and a maximum low level output current of 5.2mA, providing the needed buffer capabilities for driving multiple loads or interfacing with other digital components.

Its compact SOIC package with dimensions of 8.75 mm length and 1.5 mm height allows integration in space-constrained applications on printed circuit boards. The absence of Schmitt Trigger inputs indicates standard CMOS logic behavior without hysteresis.

Typical use cases include digital logic circuits, signal processing in industrial automation, embedded systems, and electronics manufacturing where high-speed NAND gate functionality is required.

High-speed CMOS logic operation ensures low propagation delay. Multiple gates in single IC package enhance circuit integration. Wide operating voltage range for flexible power supply options. Suitable for surface mount technology with SOIC package.

Robust operating temperature range for industrial applications.

This product is ideal for electronics designers and manufacturers requiring reliable digital logic gates within compact footprints. Explore more Logic Gate options and related semiconductor products in the EnvMart catalog for your electronic component needs.
