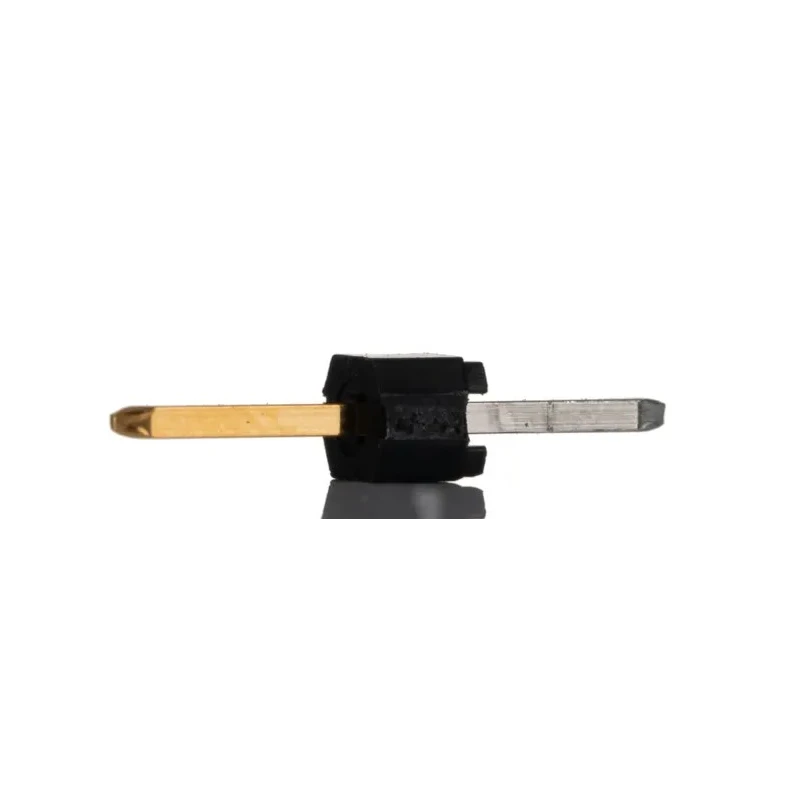

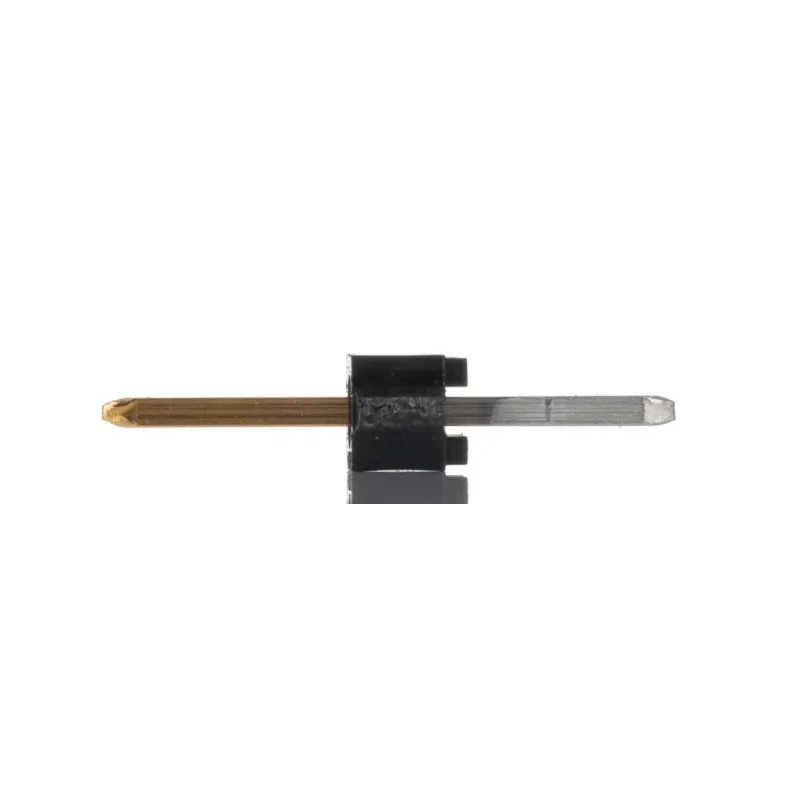

Molex Pin Header C-Grid III Series, Gold-Plated Brass Contacts, Polyester Body, 1 Contact, 2.54 mm Pitch, 1 Row 90120-0761

Molex 90120-0761 Pin Header from the C-Grid III Series is designed for reliable wire-to-board connections, featuring gold-plated brass contacts and a flame-retardant polyester body. With a 2.54 mm pitch and a single unshrouded row, it provides a precise, durable interface for electronic assemblies.

The unit supports a current rating of 3 A and can operate safely up to 350 V and temperatures from -55°C to 125°C. Its through hole mounting offers robust solder joints, while the straight orientation simplifies installation in various PCB layouts.

The contacts have a high retention force to ensure secure mating connections that resist vibration and mechanical shocks, making it suited for demanding industrial and automotive environments. The gold plating on brass contact material minimizes corrosion and supports stable electrical performance over repeated mating cycles.

This pin header is versatile for use in automotive safety systems, telecommunications equipment, transportation applications, medical instruments, and other industrial electronic devices requiring dependable PCB interfacing. Its compact single-contact design allows flexible circuit board configuration and efficient space utilization.

The 2.54 mm pitch and single-row, unshrouded design enable precise connections. Gold-plated brass contacts provide excellent conductivity and corrosion resistance. Polyester housing is flame-retardant and non-conductive for user safety.

Through hole mount type ensures strong solder joints for durability. Rated for 3 A current, 350 V voltage, and wide operating temperatures (-55°C to 125°C). High retention force ensures secure mating resistant to vibration.

Male contact gender with 2.9 mm tail pin length and 6.75 mm mating length. Suitable for industrial, automotive, telecommunications, and medical sectors.

Choosing Molex ensures compliance with industry standards and lasting performance in critical electronic systems. Browse the full range of connectors and PCB headers in our Electronics & Electricals category for tailored solutions.
