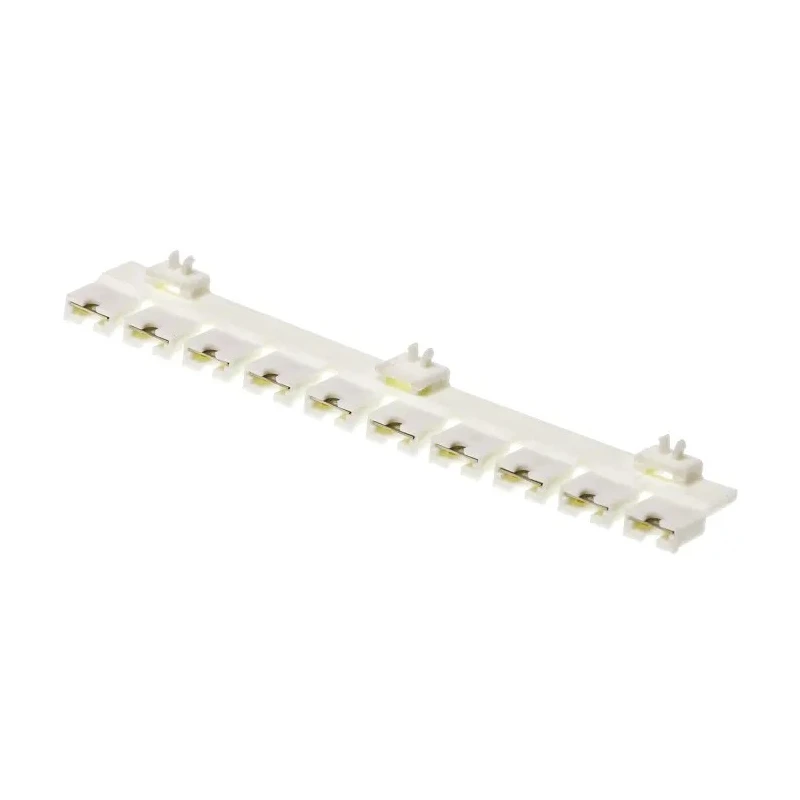

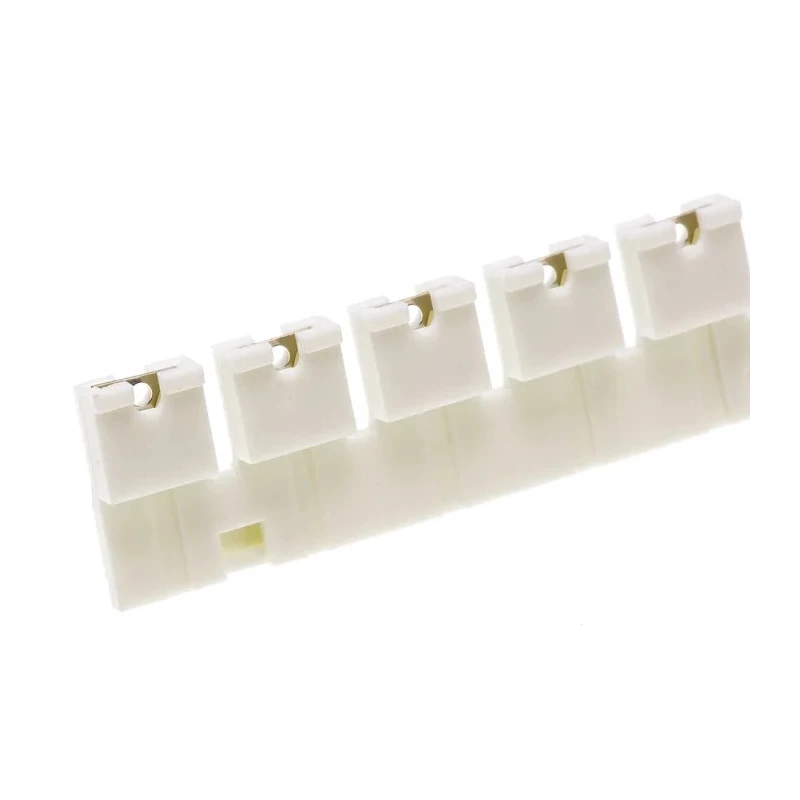

Molex Shunt Straight Female Natural Open Top 2 Way 1 Row 2.54 mm Pitch 90059-0009
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 60V |
| Brand | Molex |
| Colour | Natural |
| Orientation | Straight |
| Current | 1.5A |
| Length | 5.1mm |
| Depth | 4.85mm |
| Width | 2.54mm |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | 90059 |
| Sub Type | Open Top |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | CSA LR19980, UL E29179 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 12mΩ |
| Molex, 90059 Shunt Straight Female Black Open Top 2 Way 1 Row 2.54 mm PitchBrand | Molex |
Key Features
- The shunt features a polyester housing with UL94V-0 flame rating for safety.
- Connector made with phosphor bronze and gold over nickel plating ensures excellent conductivity and corrosion resistance.
- Rated for 1.5 A current and 60 V voltage making it ideal for low-power electronic applications.
- Complies with CSA LR19980 and UL E29179 standards for reliability and safety.
- Suitable for use with 0.64 mm square or round pins in PCB connector assemblies.
- Ideal for electronics manufacturing, power connectors, and PCB applications requiring reliable jumper solutions.
Product Description
Molex 90059-0009 shunt is a high-quality straight female micro shunt designed with a natural open top polyester housing material and a 2 way, 1 row contact configuration with a pitch of 2.54 mm. It supports currents up to 1.5 A and voltages up to 60 V, suitable for precise and reliable electrical connections in PCB assemblies.
The contacts are made from phosphor bronze and plated with gold over nickel to ensure minimal contact resistance (maximum 12 mΩ) and excellent corrosion resistance. This ensures optimal signal transmission and longevity in various industrial electronics environments.
Compact physical dimensions (5.1 mm length, 2.54 mm width, 4.85 mm depth) facilitate integration in confined PCB designs. The shunt meets rigorous CSA LR19980 and UL E29179 safety and performance standards ensuring compliance with industry tests.
Use cases include industrial and commercial electronics manufacturing, power connector wiring assemblies, automation systems, and lab-grade PCB applications where low-profile, reliable jumper components are required. It is compatible with Molex C-Grid III connector series and designed for easy insertion and removal while maintaining electrical integrity.
The shunt housing is made of flame-retardant UL94V-0 polyester for safety and durability. Phosphor bronze contacts plated with gold over nickel minimize oxidation and assure reliable conduction. Rated for electrical current of 1.5 A and voltage up to 60 V.
Low maximum contact resistance of 12 milliohms supports efficient signal flow. Compliance with CSA LR19980 and UL E29179 approvals for quality and safety. Compact size dimensions allow for dense PCB configurations. Suitable for a wide range of industrial electronics, power connectors, and automation projects.
This product is new and made in India, endorsed for industrial and commercial use. Explore the comprehensive range of Molex connectors and jumpers on EnvMart for advanced electronics integration and industrial connectivity solutions.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This shunt is rated for a maximum current of 1.5 A and a voltage of 60 V, making it suitable for low-power electronic applications.
The housing is made of polyester, while the contacts are constructed from phosphor bronze and plated with gold over nickel to ensure excellent conductivity and corrosion resistance.
The shunt has compact dimensions of 5.1 mm in length, 2.54 mm in width, and 4.85 mm in depth, facilitating integration in confined PCB designs.
It complies with CSA LR19980 and UL E29179 standards, ensuring reliability and safety in its applications.
The maximum contact resistance is 12 milliohms, supporting efficient signal flow in electrical connections.
Yes, it is suitable for use with 0.64 mm square or round pins in PCB connector assemblies.
It is ideal for industrial and commercial electronics manufacturing, power connector wiring assemblies, automation systems, and lab-grade PCB applications.
This model features a 2 way, 1 row contact configuration with a pitch of 2.54 mm.
The shunt has a straight orientation, facilitating easy insertion and removal in PCB assemblies.
This product is manufactured in India, ensuring compliance with industry standards.
The housing of this shunt is natural in color, which is typical for many electronic connectors.
This shunt features a female connector gender, designed for compatibility with other female connectors in PCB applications.
