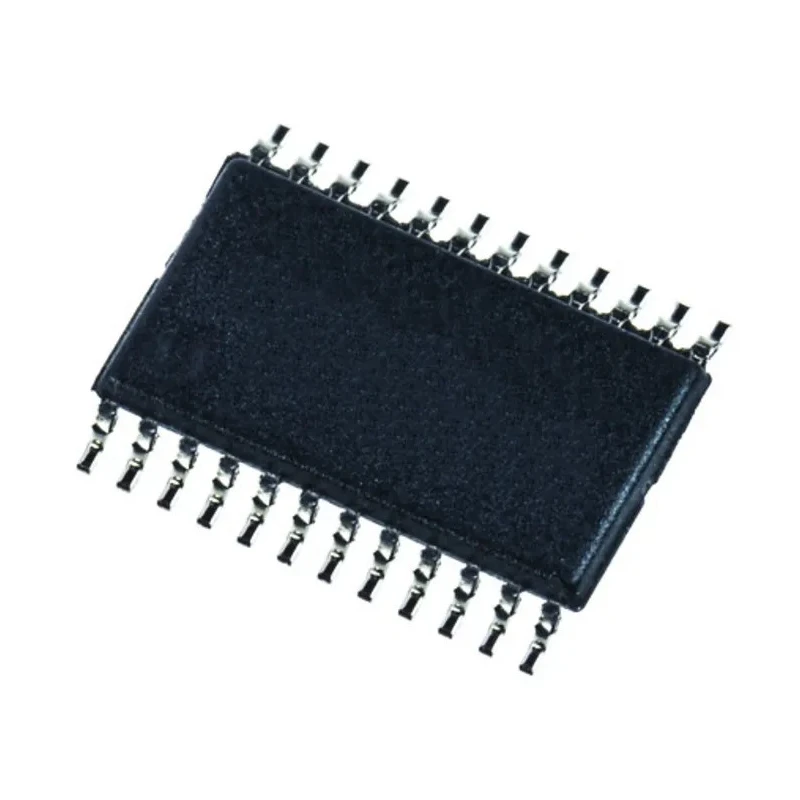

Texas Instruments 8-Bit Non-Inverting LVTTL Bus Transceiver 24-Pin TSSOP SN74LVCC3245APW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.15mm |
| Length | 7.8mm |
| Model | SN74LVCC3245APW |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | 3 State |
| Series | SN74LVCC3245A |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 8 |
| Operating Voltage | 1.65 to 3.6V |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 2.3V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 11.2ns |
| Maximum Low Level Output Current | 24mA |
| Output Level | LVTTL |
| Input Level | LVTTL |
Key Features
- Operates with a supply voltage ranging from 1.65V to 3.6V, allowing low power consumption.
- 5V tolerant inputs enhance compatibility with legacy systems.
- Features 8 channels with non-inverting logic function for bus transceiver operations.
- Compact 24-pin TSSOP surface mount package with a height of 1.15mm and length of 7.8mm.
- Maximum propagation delay time of 11.2 nanoseconds at capacitive load.
- Operating temperature range from -40°C to 85°C ensures robust performance in industrial environments.
- Latch-up immunity exceeds 250 mA according to JESD 17 standards for reliable operation.
- Electrostatic discharge protection meets or exceeds JESD 227 guidelines.
Product Description
Texas Instruments SN74LVCC3245APW is an 8-bit non-inverting LVTTL bus transceiver designed for low-voltage CMOS logic circuits. Packaged in a compact 24-pin TSSOP surface mount form factor, this device operates over a voltage range from 1.65V to 3.6V, providing efficient power consumption suitable for modern electronic designs.
Its 5V tolerant inputs allow seamless interfacing with legacy 5V logic systems, enhancing versatility across applications. Featuring 8 channels, it performs as a bus transceiver with non-inverting logic functions, supporting 3-state outputs which enable bus-oriented architectures and simplify board design.
The device exhibits a maximum propagation delay time of 11.2ns at capacitive load, ensuring prompt signal transmission for timing-critical circuits. Its operating temperature range from -40°C to 85°C meets industrial standards, offering reliable performance in harsh environmental conditions.
The SN74LVCC3245APW incorporates robust latch-up immunity exceeding 250mA as per JESD 17 standards and electrostatic discharge protection compliant with JESD 227. This ensures device longevity and reliability in electrically noisy environments.
This bus transceiver is optimized for use in industrial, laboratory, and manufacturing electronics that require precise and efficient data bus management. Its compatibility with both LVTTL and TTL input levels and LVCMOS output levels provides broad system integration options.
Operates at low voltages from 1.65 to 3.6V for power-efficient designs. 5V tolerant inputs endure higher voltage levels safely. Compact 24-pin TSSOP package suitable for surface mounting. Maximum propagation delay of 11.2 ns enables fast signal control.
Wide operating temperature range supports diverse industrial installations. Conforms to strict latch-up and ESD protection standards for durability. Explore the extensive portfolio of semiconductor and logic ICs at EnvMart for reliable components supporting advanced electronic system designs.
Explore more products in our Bus Transceivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a voltage range of 1.65V to 3.6V, making it suitable for low power consumption applications.
This model features 8 channels, providing non-inverting logic functions for bus transceiver operations.
The maximum propagation delay time is 11.2 nanoseconds at capacitive load, ensuring fast signal transmission.
It comes in a compact 24-pin TSSOP package with a height of 1.15mm and a length of 7.8mm.
It is compatible with LVTTL and TTL input levels, allowing for versatile integration with different systems.
The operating temperature range is from -40°C to 85°C, suitable for industrial applications.
It provides a 3-state output, which is essential for bus-oriented architectures.
The latch-up immunity exceeds 250 mA according to JESD 17 standards, ensuring reliable operation.
It meets or exceeds JESD 227 guidelines for electrostatic discharge protection, enhancing reliability in noisy environments.
The maximum supply voltage is 5.5V, allowing for compatibility with higher voltage systems.
The logic function of this model is non-inverting, which is typical for bus transceivers.
It is designed for surface mounting, making it suitable for compact electronic designs.
