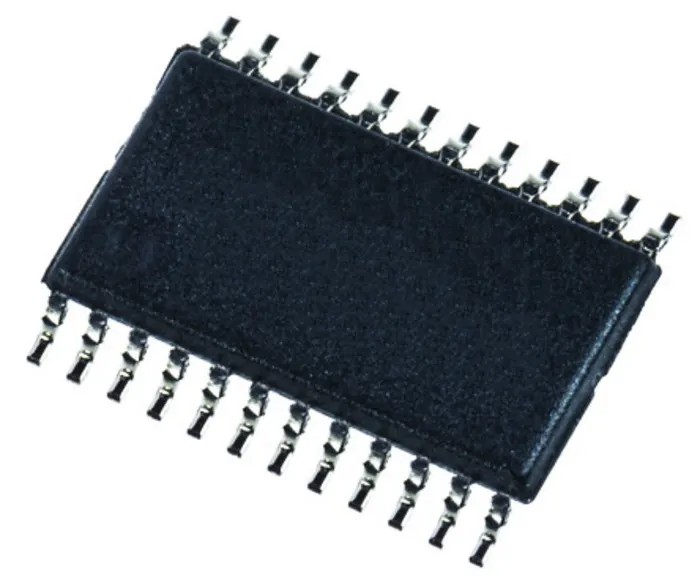

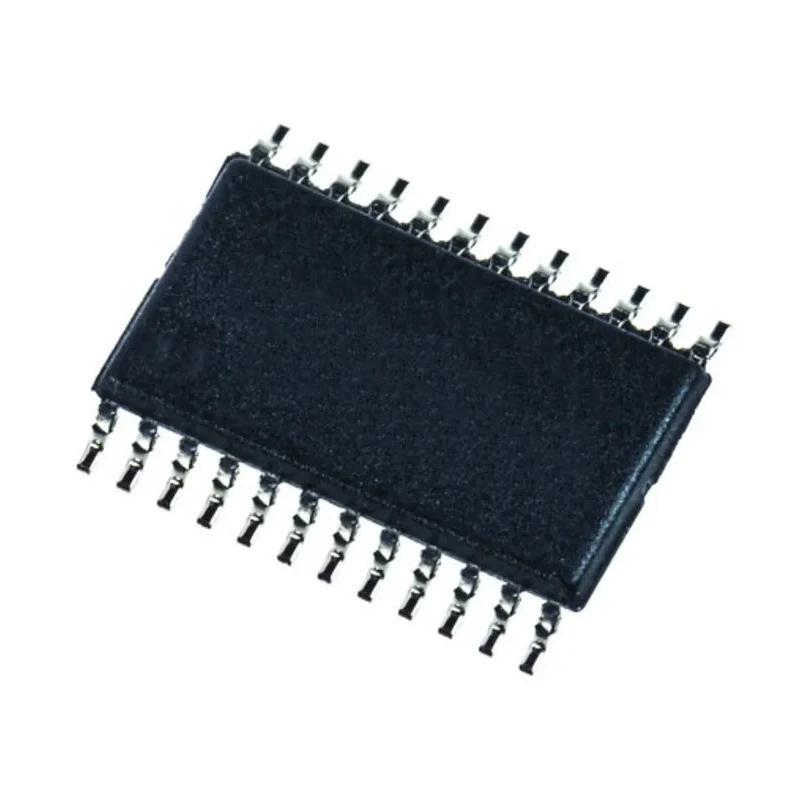

Texas Instruments 8-Bit Non-Inverting LVTTL Bus Transceiver, Surface Mount 24-Pin TSSOP SN74LVCC3245APW

Texas Instruments SN74LVCC3245APW is a high-performance 8-bit non-inverting LVTTL bus transceiver designed for surface mount applications. It is housed in a compact 24-pin TSSOP package with a length of 7.8 mm and height of 1.15 mm, enabling efficient use of PCB space.

This transceiver is part of the 74LVC family, employing silicon gate CMOS technology that reduces power consumption while maintaining robust operation across a supply voltage range of 1.65 to 3.6 volts. Its inputs are compatible with LVTTL and TTL levels, while outputs provide LVCMOS levels, ensuring broad compatibility with modern digital logic circuits.

With a maximum propagation delay time of 11.2 nanoseconds at the specified load, the SN74LVCC3245APW supports high-speed data communication, suitable for demanding industrial and laboratory electronic systems. The device operates reliably over a temperature range of -40°C to 85°C and supports a 3-state output type, providing flexibility in bus line management.

The device features maximum high-level output current of -24mA and low-level output current of 24mA, suitable for typical bus driving requirements. Its surface mount package type is designed for automated assembly and integration in complex electronic equipment.

Operates at a voltage range of 1.65 to 3.6 V, enabling low power consumption. Compatible with LVTTL and TTL inputs and LVCMOS outputs. Compact 24-pin TSSOP surface mount package. Maximum propagation delay of 11.2 ns for fast switching.

Supports temperature range from -40°C to 85°C for reliable operation. 3-state output functionality for bus control applications. Utilizes silicon gate CMOS technology from Texas Instruments 74LVC family. Suitable for industrial, laboratory, and electronic device bus transmission needs.

The SN74LVCC3245APW bus transceiver is ideal for enhancing data integrity and speed in semiconductor-based industrial and laboratory equipment. This component enables efficient signal management in bus systems, ensuring performance under varying environmental conditions.
