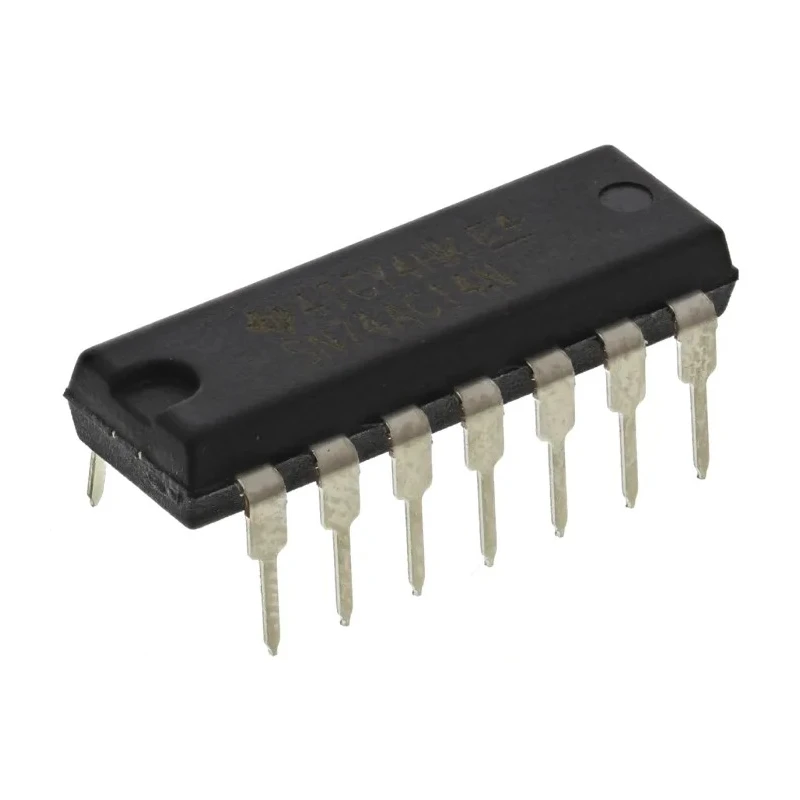

Texas Instruments Schmitt Trigger Input CMOS Inverter 6-Element 14-Pin PDIP SN74AC14N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN74AC14N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Compatibility | Input CMOS, Output CMOS |
| Series | SN74AC14 |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 1.5 to 5.5 V and 2 to 6 V |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 6V |
| Logic Family | AC |
| Logic Function | Inverter |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 15ns |
| Maximum Low Level Output Current | 24mA |
Key Features
- Operates with a supply voltage range of 1.5 to 5.5 V and 2 to 6 V.
- Through hole mount type with a standard 14-pin PDIP package.
- Maximum propagation delay time of 15 nanoseconds.
- Maximum high level output current of -24mA and maximum low level output current of 24mA.
- Wide operating temperature range from -40°C to 85°C.
- Compatible with AC logic family; input CMOS and output CMOS compatible.
- Schmitt Trigger input provides enhanced noise immunity and signal conditioning.
Product Description
Texas Instruments SN74AC14N is a CMOS inverter integrated circuit featuring Schmitt Trigger inputs and 6 inverter elements per chip, housed in a 14-pin PDIP through-hole package. This device is designed for advanced CMOS logic applications requiring reliable switching and noise immunity.
The operating voltage range is from 1.5 to 5.5 volts (typical) and up to 6 volts maximum supply voltage, making it suitable for various low voltage applications. It provides a maximum propagation delay time at a load capacitance of 15 nanoseconds, ensuring fast switching performance. Electrical characteristics include a maximum high-level output current of -24mA and maximum low-level output current of 24mA, sustaining robust drive capabilities.
This inverter IC supports a wide temperature range from -40°C to 85°C, suited for diverse industrial environments. The package offers easy through-hole mounting with a precise 14-pin PDIP form factor measuring 19.3mm in length, 6.35mm in width, and 4.57mm in height.
The SN74AC14N belongs to the SN74AC14 series and the AC logic family, providing compatibility with CMOS input and output logic levels. It offers Schmitt Trigger input functionality, which enhances noise immunity and signal conditioning, making it ideal for signal wave shaping and clean transitions in digital circuits.
Operates with a supply voltage range of 1.5 to 5.5 V and up to 6 V maximum. Through hole mount type with 14-pin PDIP package. Maximum propagation delay of 15 nanoseconds ensuring fast logic transitions. Maximum high level output current of -24mA and low level output current of 24mA for robust output drive.
Wide operating temperature range from -40°C to 85°C for versatility in industrial applications.
This device is widely used in industrial, laboratory, and embedded electronics environments requiring efficient signal inversion with enhanced noise immunity. It is applicable in logic signal conditioning, waveform shaping, and timing circuits.
Explore more Logic ICs and semiconductor components within the Texas Instruments lineup available at EnvMart for advanced electronic design and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN74AC14N operates with a supply voltage range of 1.5 to 5.5 V, with a maximum supply voltage of 6 V.
The maximum propagation delay time for the SN74AC14N is 15 nanoseconds at a specified load capacitance.
This model has a maximum high-level output current of -24mA and a maximum low-level output current of 24mA.
The SN74AC14N operates within a wide temperature range from -40°C to 85°C.
It comes in a 14-pin PDIP (Plastic Dual In-line Package) format, designed for through-hole mounting.
Yes, it is compatible with the AC logic family and supports both CMOS input and output levels.
This model features 6 inverter elements per chip.
The input type for this inverter IC is Schmitt Trigger, which enhances noise immunity and signal conditioning.
The dimensions of the SN74AC14N are 19.3mm in length, 6.35mm in width, and 4.57mm in height.
It is widely used in industrial, laboratory, and embedded electronics environments for signal inversion, logic signal conditioning, and waveform shaping.
The maximum supply voltage for the SN74AC14N is 6V.
The country of origin for the SN74AC14N is India.
