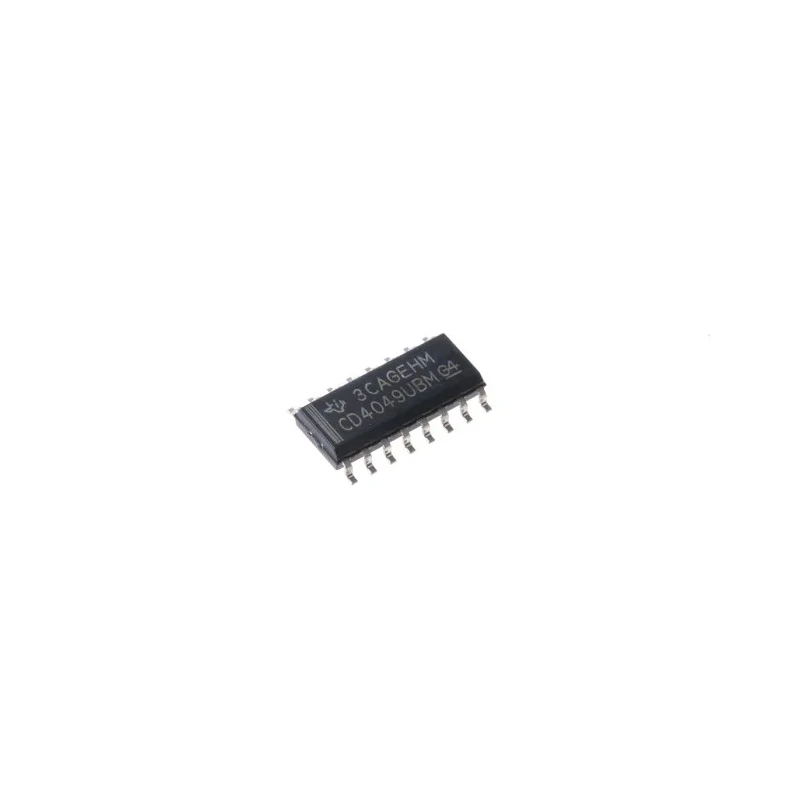

Texas Instruments 6-Channel Inverting Voltage Buffer & Converter Combination Circuit 16-Pin SOIC CD4049UBD

Texas Instruments CD4049UBD is a highly versatile 6-channel inverting voltage buffer and converter combination circuit housed in a compact 16-pin SOIC package. It is part of the 4000 CMOS logic family, designed for a wide operating voltage range from 3 to 18 volts, making it suitable for numerous industrial and electronic applications requiring signal buffering and voltage conversion.

This device provides six independent inverting buffer channels, each capable of converting voltage signals with reliable polarity inversion functions. The CD4049UBD operates efficiently over a broad temperature range of -55°C to 125°C, ensuring stable performance in harsh environmental conditions. It supports surface mount assembly with its 16-pin Small Outline IC package, offering easy integration into modern electronics systems.

Technical attributes include a maximum supply voltage of 20 volts and a low supply current draw of approximately 1 microampere, contributing to energy-efficient circuit designs. The maximum propagation delay time at capacitive load is rated at 120 nanoseconds, suitable for moderate-speed digital signal processing requirements. Output current capabilities reach up to -5.2 mA for the high-level output and 26 mA for the low-level output, providing robust drive strength for connected circuitry.

Without Schmitt trigger inputs and featuring single-ended inputs and voltage outputs, the logic device ensures simplicity and precision in signal buffering and voltage level conversion applications. The CD4049UBD is commonly used in industrial electronics, automation control systems, instrumentation, telecommunications, and laboratory equipment requiring reliable voltage signal processing.

Six inverting voltage buffer and converter channels. Wide operating voltage range from 3 to 18 volts. Low supply current for power-sensitive applications. Fast propagation delay time of 120 nanoseconds at capacitive load.

Surface mount 16-pin SOIC package for compact PCB design. High and low-level output current drive capabilities. Wide operating temperature range from -55°C to 125°C. Single-ended input type with voltage output and inverting polarity.

Part of the 4000 logic family known for CMOS technology advantages.

This product is ideal for design engineers and professionals working in industrial technology sectors, electronic component manufacturing, and automation. It supports a variety of applications requiring precision voltage buffering and conversion, enhancing circuit performance and operational reliability. Explore the selection of semiconductor logic ICs and Buffers at EnvMart for quality components from Texas Instruments and other top manufacturers.
