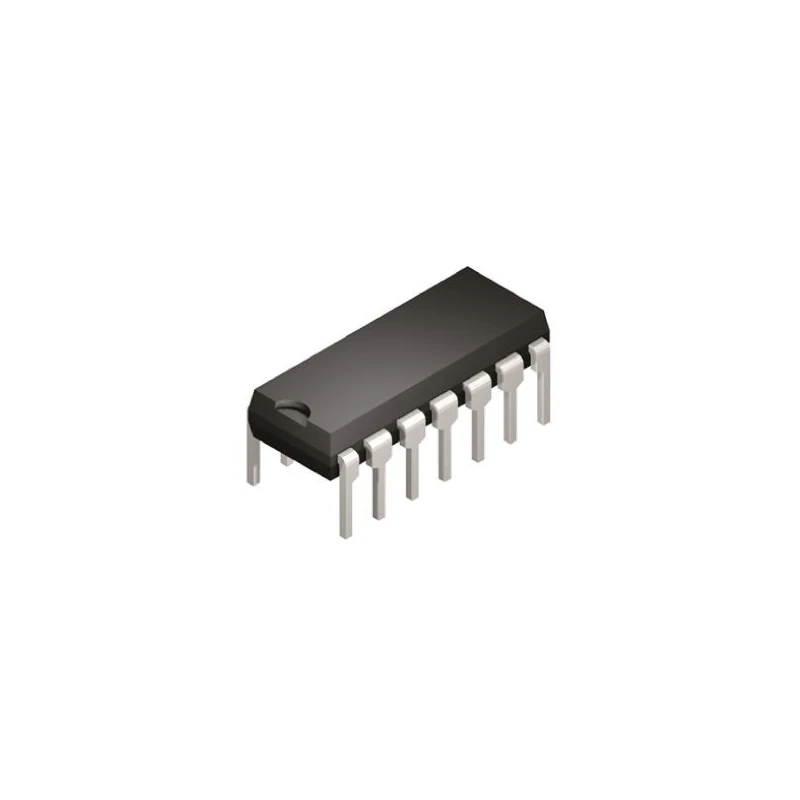

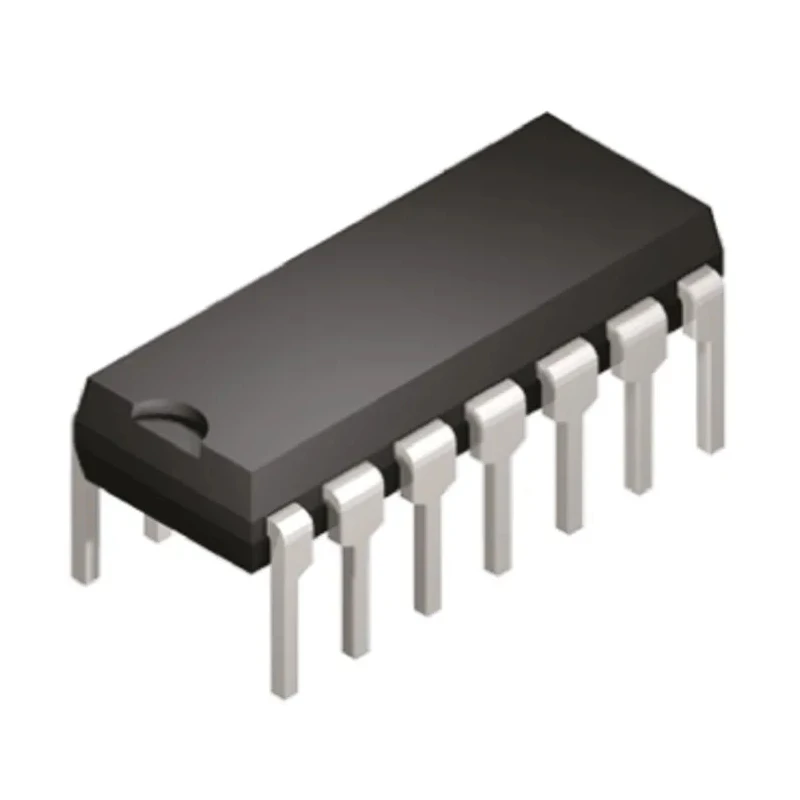

Texas Instruments Inverter Logic IC CMOS 3V to 18V 14-Pin PDIP CD4007UBE

Texas Instruments CD4007UBE is a reliable Inverter Logic IC from the 4000 CMOS Logic Family, featuring a 14-pin PDIP package designed for through-hole mounting. It operates efficiently over a wide voltage range between 3V and 18V, enabling versatile use in electronic circuits that require logic inversion functions.

This inverter IC contains a single logic element and provides a maximum propagation delay of 110 nanoseconds at a defined load capacitance, ensuring stable timing for signal inversion tasks. Its operating temperature range spans -55°C to 125°C, making it suitable for industrial, laboratory, and commercial electronics applications.

The CD4007UBE measures 19.3mm in length, 6.35mm in width, and 4.57mm in height, supporting compact PCB designs where space efficiency is essential. As a product within the 4000 series CMOS logic family, it offers compatibility with a broad range of logic devices commonly used in semiconductor-based electronic assemblies.

Key features include a CMOS input type, a 14-pin PDIP package for easy installation via through-hole soldering, and no built-in Schmitt Trigger functionality, which suits standard inverter use cases without additional hysteresis.

This IC is tailored for electronics designers in industrial automation, HVAC control systems, manufacturing equipment, and general electronic device prototyping that require logic inverter solutions without automotive-grade specifications.

Single inverter element per IC chip for precise logic functionality. Wide supply voltage range from 3V to 18V enhances application flexibility. Through-hole PDIP package facilitates straightforward PCB assembly. Robust operating temperature range accommodates varied environmental conditions.

Compact dimensions optimize board space utilization. Part of the trusted 4000 series CMOS family for consistent performance. No Schmitt Trigger input included to maintain basic inverter operation. Non-automotive standard rated, focusing on industrial and commercial electronics.

EnvMart customers can explore more Texas Instruments semiconductor Logic ICs in our Electronics & Electricals catalog, ensuring efficient electronic component sourcing for professional projects.
