Texas Instruments 2 2-Input AND Logic Gate, 8-Pin SSOP SN74LVC2G08DCTR

Texas Instruments SN74LVC2G08DCTR is a 2 2-input AND logic gate supplied in an 8-pin SSOP package. Designed using low voltage CMOS technology, it is suitable for modern digital circuits requiring energy efficiency and fast logic operations.

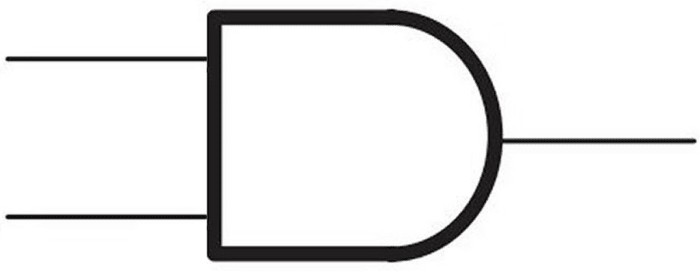

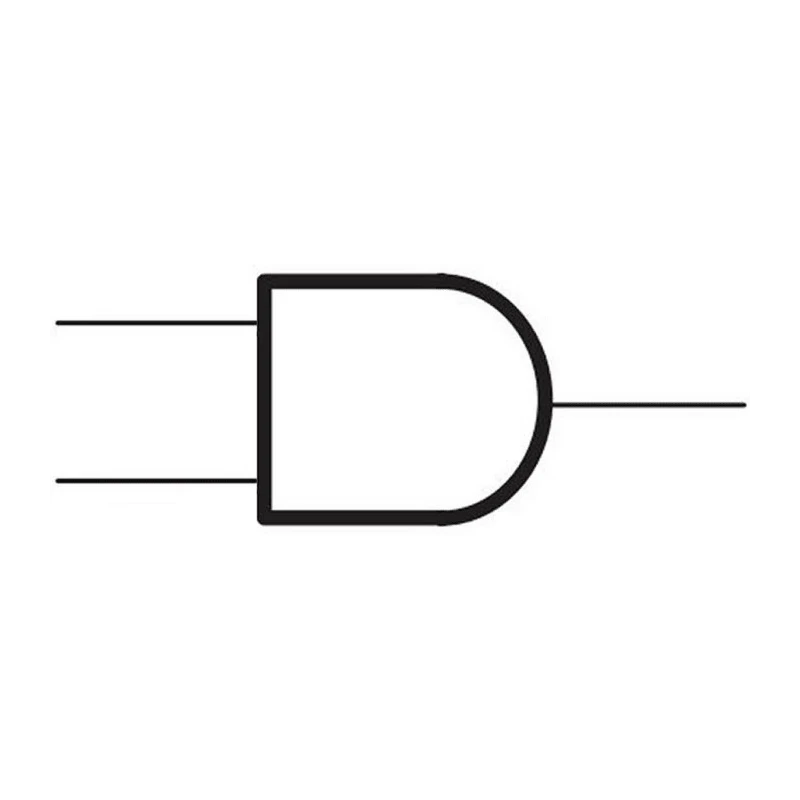

This device integrates two independent AND gates, each with two inputs, suitable for various digital logic implementations in industrial, electronic, and laboratory applications.

Operating voltage ranges from 1.65 V to 5.5 V with compatibility for LVTTL and TTL inputs and outputs delivered in LVCMOS format. It features a maximum propagation delay of 4.8 ns at the standard load, ensuring fast processing of logic signals.

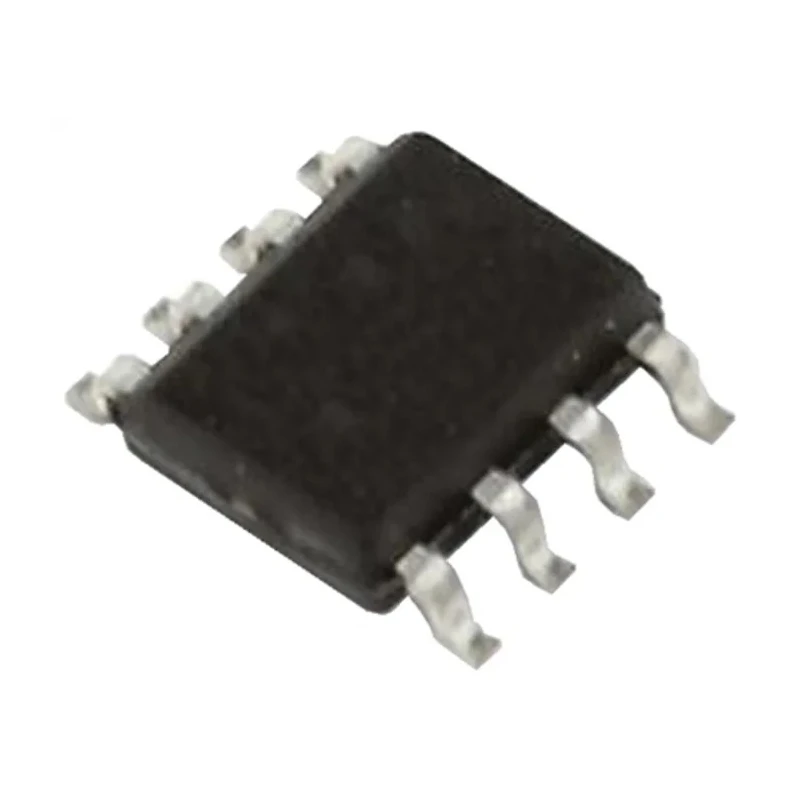

Manufactured for surface mount technology, the compact 8-pin SSOP package (dimensions approximately 2.95 mm length and 1.29 mm height) allows high-density PCB design and improved production efficiency.

This Logic Gate is ideal for integrated circuits requiring precise combination logic functions. Robust operating temperature range of -40°C to 85°C makes it suitable for industrial and commercial electronic devices. The device is not automotive certified but meets typical industrial performance standards.

Logic family is LVC with CMOS input and output stages ensuring low power consumption. Maximum output currents of ±32 mA support typical switching loads in logic circuits.

This product is commonly used in industrial automation, electronic control systems, embedded hardware design, and laboratory instrumentation where reliable digital logic processing is crucial.
