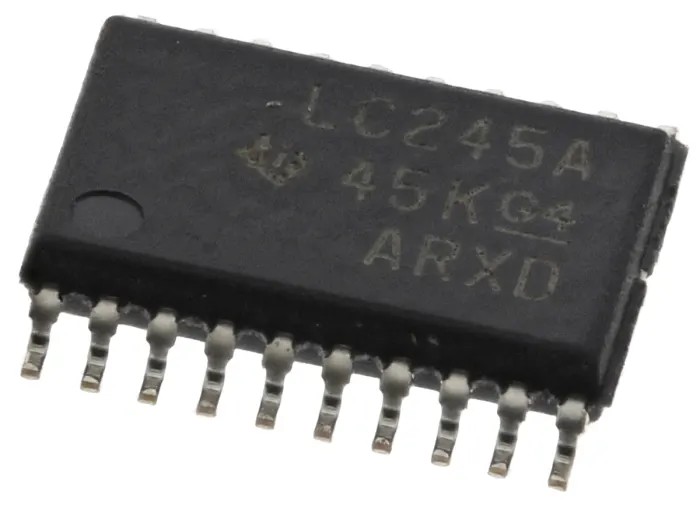

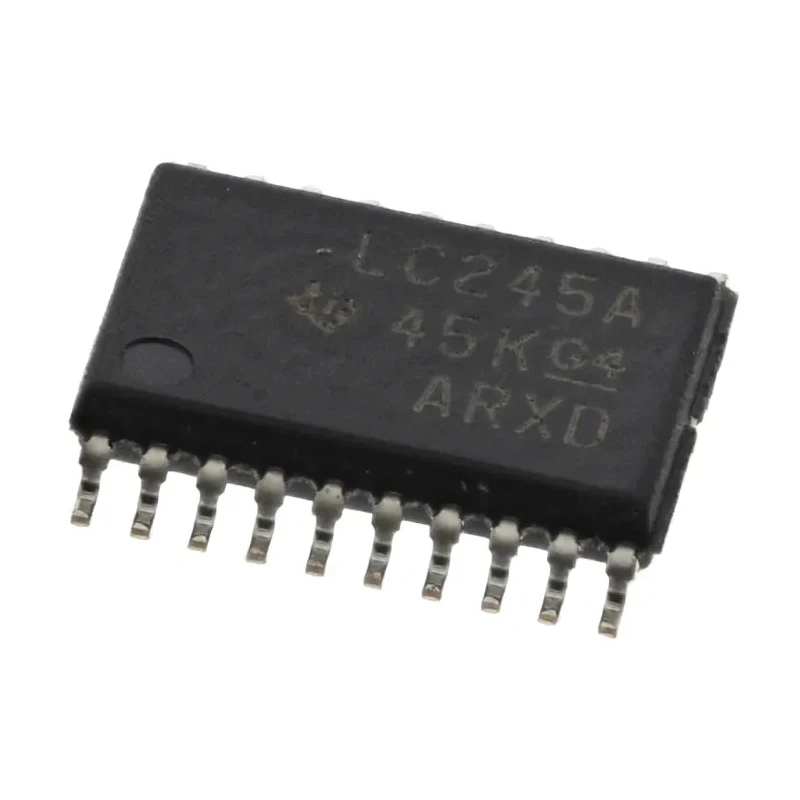

Texas Instruments Bus Transceiver 8-Bit Non-Inverting LVTTL 20-Pin TSSOP SN74LVC245APWR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.15mm |
| Length | 6.5mm |
| Model | SN74LVC245APWR |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | 3 State |
| Series | SN74LVC245A |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 8 |
| Operating Voltage | 1.65 to 3.6V |
| Pin Count | 20 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | LVC |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 13.7ns |
| Maximum Low Level Output Current | 24mA |
| Output Level | LVTTL |
| Input Level | LVTTL |
Key Features
- Operates with supply voltage range from 1.65V to 3.6V ensuring low power consumption.
- Supports 8 channels with non-inverting logic function for bus interfacing.
- Features 3-state outputs compatible with LVTTL levels for flexible bus control.
- Designed for industrial-grade operation with a temperature range from -40°C to 85°C.
- Provides a maximum propagation delay of 13.7 nanoseconds at CL.
- Pin count totals 20 in a TSSOP package with a height of 1.15 mm and length of 6.5 mm.
- Inputs are 5V tolerant and outputs are compatible with LVCMOS logic levels.
- Latch-up performance exceeds 250 mA in compliance with JESD-17 standards.
Product Description
Texas Instruments SN74LVC245APWR bus transceiver is an 8-bit non-inverting LVTTL logic device housed in a 20-pin TSSOP package designed for reliable surface mounting.
This device operates over a supply voltage range of 1.65 to 3.6 volts, providing energy-efficient performance suitable for low voltage CMOS systems. It supports 8 channels and 3-state output functionality enabling effective bus line management in complex digital systems.
The SN74LVC245APWR supports 5V tolerant inputs with output levels compatible with LVCMOS allowing seamless interfacing with a variety of standard logic families. Its propagation delay is rated at a maximum of 13.7 nanoseconds, making it suitable for timing-sensitive applications.
Engineered for industrial and commercial electronics applications, it maintains operation within temperature extremes from minus 40 degrees Celsius to plus 85 degrees Celsius. Package dimensions include a height of 1.15 millimeters and a length of 6.5 millimeters, facilitating compact circuit designs.
Additional attributes include compliance with latch-up immunity standards exceeding 250 milliamperes as per JESD 17 and robust electrostatic discharge protection beyond JESD 22 specifications, ensuring enhanced device reliability in harsh environments.
Operates between 1.65V and 3.6V supply voltage. Non-inverting 8 channel bus transceiver logic. 3-state LVTTL output compatible with LVCMOS. Industrial operating temperature range from -40°C to 85°C. Maximum propagation delay of 13.7 ns at CL.
20-pin TSSOP package with dimensions tailored for compact PCB layouts. 5V tolerant inputs enhancing interoperability. Meets stringent latch-up and ESD protection standards.
This device is ideal for industrial, laboratory, and manufacturing electronic applications requiring high speed and robust logic interfacing. Discover more technical datasheets and design resources within the semiconductor and logic IC categories at EnvMart.
Explore more products in our Bus Transceivers category.
