| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 900μm |
| Length | 2mm |
| Model | SN74AHC1G08DCKR |
| Mount Type | Surface |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 85°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Number of Elements | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | AHC |
| Logic Function | AND |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ CL | 9.5ns |
| Maximum Low Level Output Current | 8mA |
| Number of Inputs per Gate | 2 |

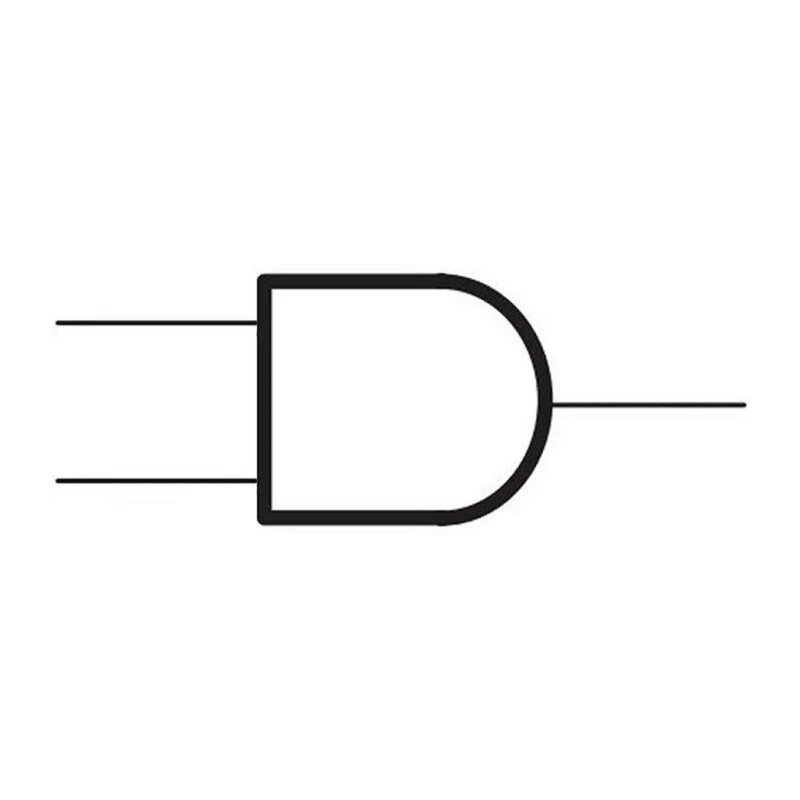

| Texas Instruments SN74AHC1G08DCKR 2-Input AND Logic Gate, 5-Pin SC-70Brand | Texas Instruments |
Texas Instruments SN74AHC1G08DCKR 2-Input AND Logic Gate provides a high-speed, low power CMOS logic function with a compact 5-pin SC-70 surface mount package. This device belongs to the AHC logic family and offers a voltage operating range from 2 V to 5.5 V, making it appropriate for use in a variety of electronic systems.
Designed for industrial, laboratory, and electronic manufacturing applications, this logic gate offers efficient switching with a maximum propagation delay of 9.5 ns, which supports fast and reliable signal processing in digital circuits. It operates across a wide temperature range, from -40°C to 85°C, ensuring stability and performance even under demanding environmental conditions.

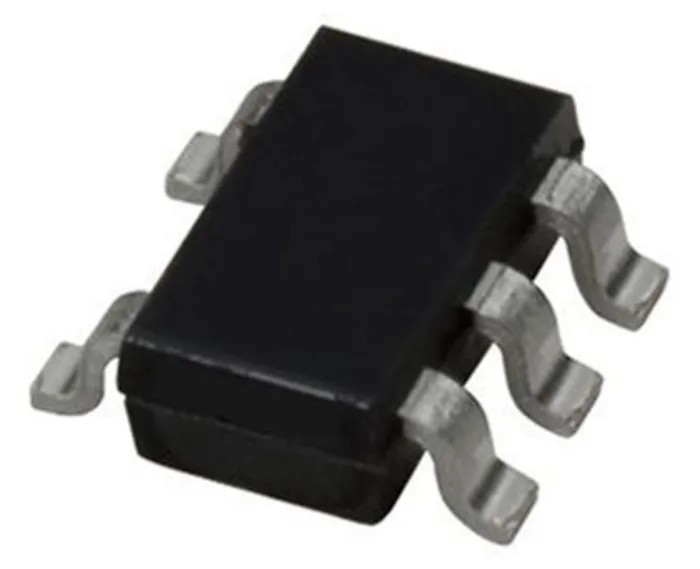

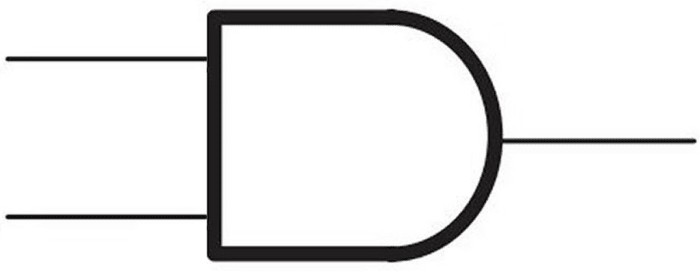

The device features a single 2-input AND Logic Gate with Schmitt Trigger inputs absent, optimizing it for standard digital logic applications. It provides a maximum output current of ±8 mA at 5 V supply, allowing for effective interfacing with other components. The compact SC-70 package with only 5 pins and dimensions of 2 mm length and 900 μm height helps minimize board space and facilitates surface mounting on PCBs in dense system designs.
This logic IC is ideal for use in automation, control systems, signal processing, consumer electronics, and general semiconductor applications where high-speed logical operations and energy efficiency are critical. It is not specified for automotive use.
High-speed CMOS logic technology for low power consumption. Wide operating voltage range supports flexible usage. Compact 5-pin SC-70 surface mount package optimizes board space. Stable performance over wide temperature range (-40°C to 85°C).
Efficient output drive capability allows signal integration. Single 2-input AND logic function suitable for digital circuits. Explore more semiconductor logic ICs from Texas Instruments and related electronic components at EnvMart for reliable, high-quality industrial and laboratory applications.
