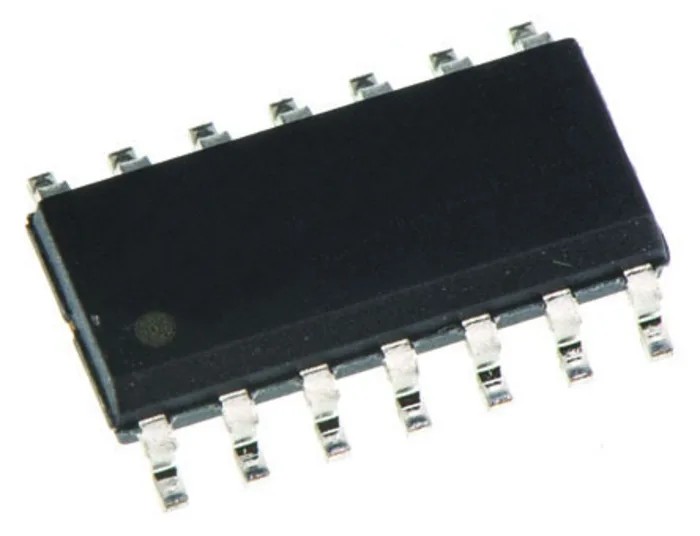

Texas Instruments 4 2-Input NAND CMOS Logic Gate SOIC 14-Pin CD4011BM96

Texas Instruments CD4011BM96 is a 4 2-input NAND CMOS logic gate integrated circuit housed in a 14-pin SOIC surface mount package. The device utilizes CMOS technology, belonging to the CD40 series logic family, and provides reliable NAND logic functions over a wide supply voltage range of 3 to 18 volts.

Each of the four gates has two inputs, enabling complex digital logic designs. The maximum propagation delay time of 90 nanoseconds at capacitive load ensures timely switching performance suitable for industrial and commercial electronics applications.

This device operates efficiently within a temperature range from -55°C to +125°C, making it suitable for use in harsh or industrial environments. Its maximum output current capabilities include a high-level output current of -4.2 mA and low-level output current of 4.2 mA, offering stable signal driving capabilities.

The 14-pin SOIC package facilitates compact and surface mount PCB layouts, supporting modern electronics manufacturing techniques. This logic gate IC does not feature Schmitt trigger inputs, adhering to standard NAND gate behavior.

Four independent 2-input NAND gates implemented using CMOS technology. Wide operating supply voltage range from 3 V up to 18 V. Industrial operating temperature range from -55°C to +125°C. Max propagation delay time of 90 ns enabling fast logic transitions.

Surface mount 14-pin SOIC package for space-saving PCB design. Output current capability suitable for driving standard CMOS and TTL inputs. Part of the well-known CD40 family of CMOS logic ICs. Appropriate for electronic and industrial control system designs.

This CD4011BM96 is widely used in digital logic circuits, control logic implementations, and signal processing modules in industrial, laboratory, and commercial electrical applications. Its robust operating range and industrial readiness provide versatility for diverse electronics engineering projects.
