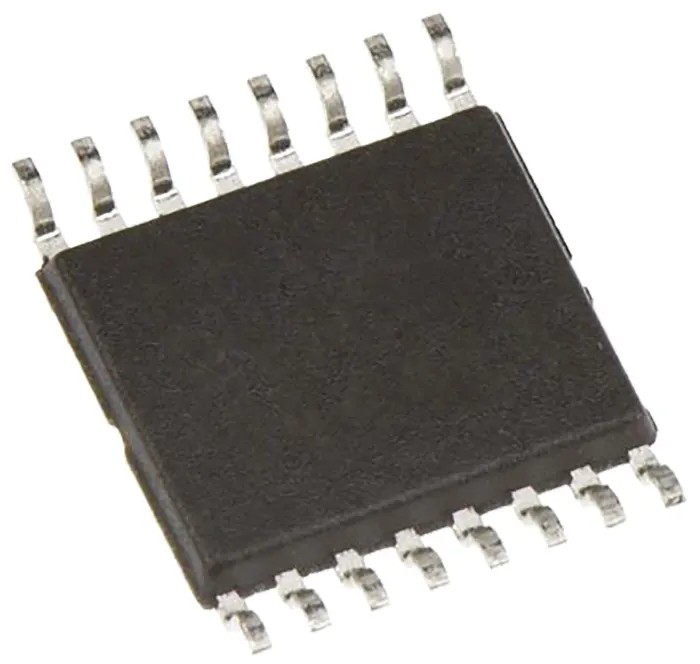

Texas Instruments 16-Pin TSSOP CMOS Triple Multiplexer/Demultiplexer Logic IC CD74HC4053PWR

Texas Instruments CD74HC4053PWR is a high-speed CMOS logic IC featuring triple multiplexer and demultiplexer functionality within a compact 16-pin TSSOP surface mount package. This device belongs to the 74HC4000 series of logic components, which combine the speed of LSTTL devices with the lower power consumption of CMOS technology. It is designed for switching and routing analog or digital signals in electronic applications including industrial control, telecommunications, and instrumentation.

The IC contains 4 multiplexing elements configured as triple multiplexers or demultiplexers, providing flexible signal routing options for complex circuit designs. It operates over a supply voltage range of 2 to 6 V, making it suitable for a wide range of power systems. Its outputs are compatible with both CMOS and TTL logic levels, ensuring easy integration with various logic families.

The package dimensions are compact, with a length of 5 mm, width of 4.4 mm, and height of 1.15 mm, supporting space-constrained PCB designs. The device maintains reliable operation over an extended temperature range from -55°C up to +125°C, catering to harsh industrial environments. With a maximum on-state resistance of 270 ohms, it provides efficient signal conduction during switching.

This multiplexer/demultiplexer IC is pin-compatible with the standard LS logic family, allowing direct substitution without board redesign. Its capability to drive up to 10 LSTTL loads makes it ideal for interfacing with legacy logic systems.

Typical applications include signal multiplexing in communication equipment, industrial automation control systems, test instrumentation, and other electronic devices requiring flexible signal management. The surface mount TSSOP package supports automated assembly processes for high volume manufacturing.

Contains 4 elements per chip in the 74HC4000 CMOS logic family. High-speed digital signal routing with low power consumption. Operates from 2 V to 6 V supply voltage. Compatible with input CMOS and output CMOS/TTL logic levels.

Surface mount 16-pin TSSOP reduces PCB footprint. Wide operating temperature range from -55°C to +125°C for reliability. Maximum on resistance of 270 ohms for efficient switching. Pin-compatible with LS logic family for easy upgrades.

Capable of driving 10 LSTTL loads simultaneously. Ideal for industrial, laboratory, telecommunications, and manufacturing uses. Explore EnvMart's extensive catalog in Semiconductors and Logic ICs for more advanced multiplexers and related components suitable for industrial and electronic applications.
