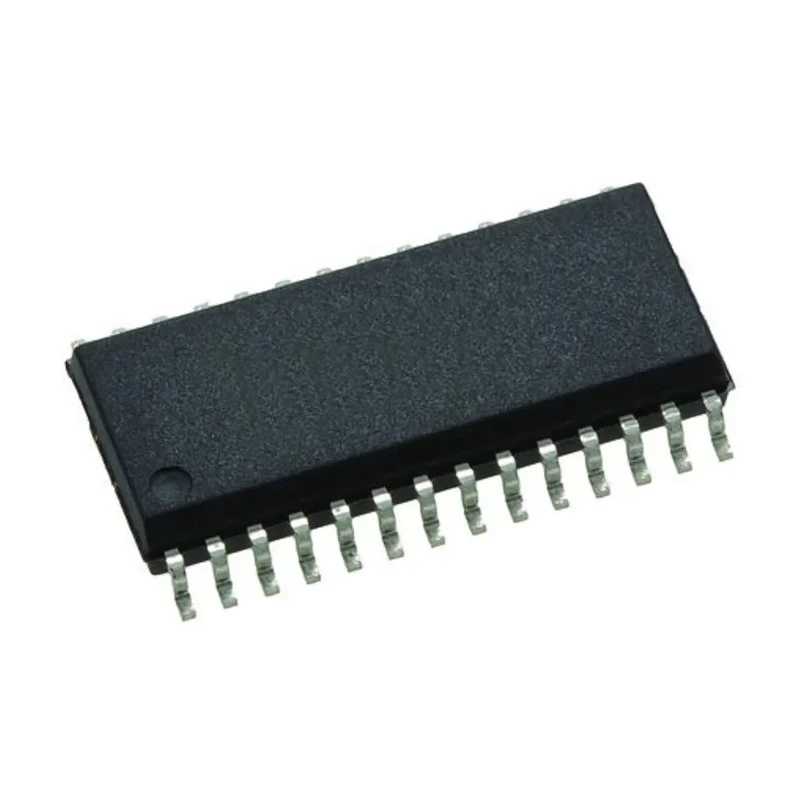

Texas Instruments Analogue to Digital Converter 16 Bit, 250 ksps, 28-Pin SOIC ADC ADS8505IDW

Texas Instruments ADS8505IDW is a high-performance Analogue to Digital Converter (ADC) designed for precise digital signal conversion in industrial, laboratory, and embedded electronics environments. This device features a 16-bit resolution and a sampling rate of 250 ksps to ensure accurate and timely data acquisition.

Employing SAR (Successive Approximation Register) architecture, it provides efficient and fast ADC conversion for single-channel input with voltage sensing capability. This ADC features a parallel interface output, making it compatible with a variety of digital systems requiring rapid data transfer.

The ADC operates reliably across a wide temperature range from -40°C up to 85°C, suitable for demanding environmental conditions. It requires a supply voltage between 5 V and 5.25 V and is housed in a 28-pin SOIC package that supports surface mount technology, providing compactness and ease of integration on printed circuit boards.

Typical uses include instrumentation, data acquisition, process control, industrial automation, and embedded signal processing systems. It supports applications demanding high accuracy and resolution in converting analogue signals to digital format.

Employs SAR architecture for precise and quick conversion. Single ADC channel supports voltage input type. Operates over temperature range from -40°C to 85°C. Requires supply voltage between 5 V to 5.25 V. Utilizes a parallel interface for data output.

Compact dimensions of 18.08 mm length and 2.64 mm height for easy PCB mounting. Compatible with industrial, laboratory, and embedded electronic applications. Surface mount 28-pin SOIC package ensuring small footprint. Explore more Texas Instruments semiconductor products at EnvMart for quality ADC solutions.
