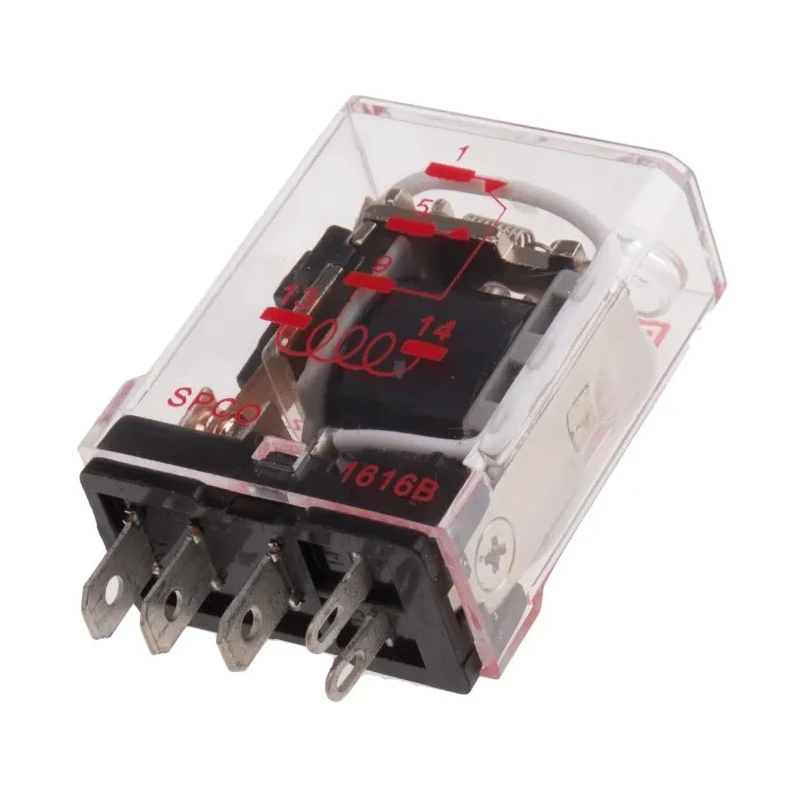

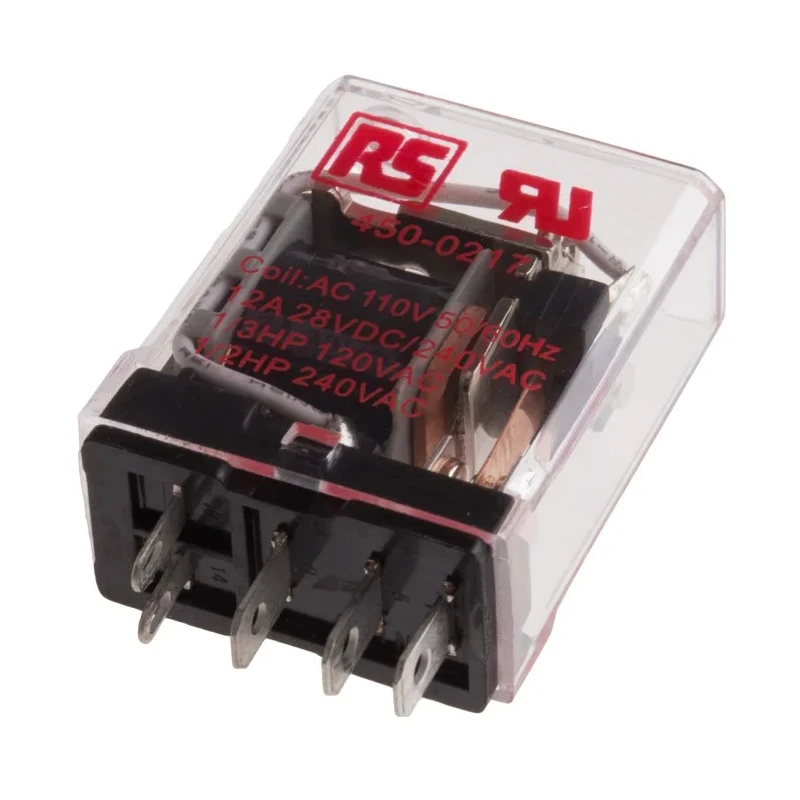

RS PRO PCB Power Relay with 110V AC Coil, 15A Switching Current, SPDT, Silver Alloy Contacts 450-0217

RS PRO 450-0217 PCB Power Relay is a high-performance industrial relay designed for precise electrical switching and control tasks. With a coil voltage of 110V AC and a switching current capacity of 15A, this relay supports robust electrical load management. It incorporates a Single Pole Double Throw (SPDT) contact configuration with silver alloy contacts, delivering reliable conductivity and low contact resistance, not exceeding 50mΩ.

The relay’s compact PCB mounting type and PCB pin terminals allow for straightforward integration into printed circuit boards. It measures 27mm in length, 13.5mm in width, and 35.6mm in height, making it suitable for use in constrained spaces within electrical devices. Operational temperature range spans from -45°C to 55°C, ensuring dependability under varied environmental conditions.

Designed to meet international standards UL, EN, and CE, the relay guarantees safety and compliance for industrial and automation environments. It has a mechanical life expectancy of 10 million operations and an electrical life expectancy of 100,000 operations, highlighting its durability for continuous use. The coil resistance is specified at 3.8kΩ with a coil power of 1.2W, enabling energy-efficient performance.

Switching capabilities include both AC and DC voltages, rated at 240V AC and 28V DC respectively, with a maximum switching power of 3.6kVA, making it versatile for multiple switching applications. This relay is ideal for Power Relay circuits, industrial control systems, automation equipment, and general electrical switching tasks.

Features a Single Pole Double Throw (SPDT) contact configuration for versatile switching applications. Silver alloy contact material provides durability and low resistance. Compact size suitable for PCB mounting with pin terminals.

Wide operating temperature range from -45°C to 55°C. Mechanical life of 10 million operations ensuring long-term reliability. Electrical life of 100,000 operations for high performance switching. Coil resistance of 3.8kΩ and coil power rating of 1.2W.

Supports switching voltages of 240V AC and 28V DC with 15A current capacity. Complies with UL, EN, and CE safety and quality standards. Manufactured in Taiwan, Province Of China.
