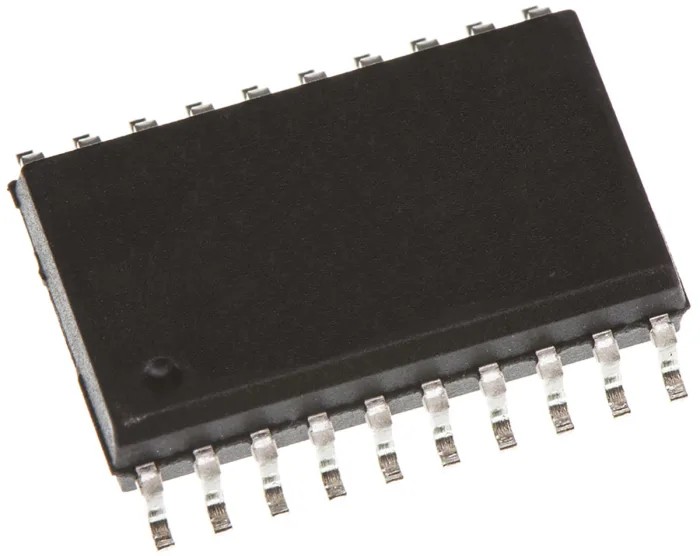

Texas Instruments 8-Bit Inverting Open Collector Line Transceiver, 20-Pin SOIC SN75160BDW

Texas Instruments SN75160BDW is an 8-bit inverting open collector line transceiver designed for robust and efficient signal transmission in electronic circuits. Packaged in a 20-pin SOIC surface mount device, this transceiver supports the transceiver logic family with a polarity inverting function, suitable for line driver applications across various industrial and embedded systems.

Operating within a supply voltage range of 4.75V to 5.25V and CMOS input level compatibility, the SN75160BDW delivers a maximum propagation delay of 20 nanoseconds, enabling fast and reliable data communication. It maintains performance between 0°C and 70°C, making it suitable for typical industrial environments.

The device outputs include open collector types with a maximum high-level output current of -5.2mA and a maximum low-level output current of 48mA. Its compact SOIC package measures 12.8mm in length and 2.35mm in height, optimized for surface mount technology aimed at efficient PCB layouts.

This line transceiver is commonly used in bus transceiver roles for communication between digital components, supporting industrial, manufacturing, and electronic device applications requiring reliable signal interfacing.

Supports 8-bit inverting transceiver logic with open collector outputs. Compact 20-pin SOIC surface mount package suitable for automated PCB assembly. Fast maximum propagation delay time of 20ns ensures efficient data flow.

Operates reliably in a temperature range of 0°C to 70°C for industrial applications. Designed to interface CMOS input levels for digital signal compatibility. Maximum supply voltage of 5.25V supports stable operation within standard logic voltage ranges.

No automotive-specific standards but fits common industrial equipment requirements. Utilized in electronic components, power, and connector sectors for bus transceiver functionality.

This product supports designers and engineers involved in electronic design, manufacturing, and power management applications. It is an ideal choice for improving production efficiency with ready insertion packaging.
