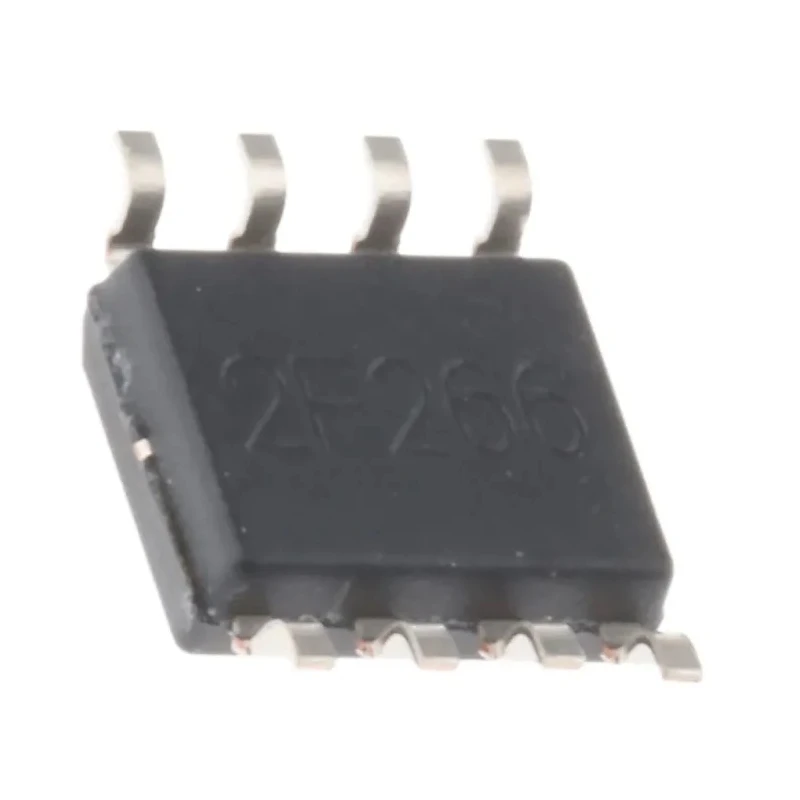

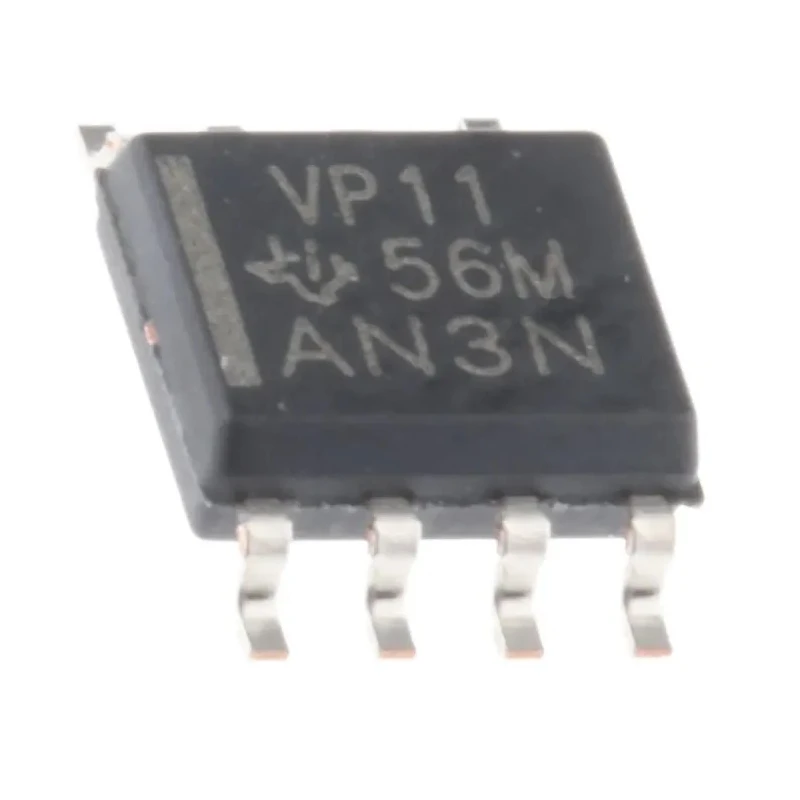

Texas Instruments Line Transceiver Differential Non-Inverting 8-Pin SOIC SN65HVD11D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 5mm |
| Model | SN65HVD11D |
| Width | 3.98mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | SN65HVD11 |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | SN74 |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -60mA |
| Maximum Propagation Delay Time @ CL | 400ns |
| Supply Current | 15.5mA |
| Maximum Low Level Output Current | 60mA |
Key Features
- The device supports differential input and output signals for noise immunity.
- Non-inverting polarity ensures signal integrity in transmission.
- Operates with a supply voltage range of 4.5V to 5.5V.
- Surface mount package type with an 8-pin SOIC form factor.
- Maximum propagation delay time of 400 nanoseconds supports high-speed data rates.
- Operating temperature range from -40°C to 85°C is suitable for industrial environments.
- Supply current is low at 15.5mA for efficient power usage.
- Supports a single communication channel for RS-485 bus systems.
Product Description
Texas Instruments SN65HVD11D is a line transceiver designed for differential, non-inverting signal transmission in high-speed RS-485 communication networks. Featuring an 8-pin SOIC surface mount package, it ensures compact PCB footprint integration. The device supports differential input and output, enhancing noise immunity and data integrity.
Operating within a supply voltage range of 4.5 to 5.5 volts, this line transceiver provides robust performance with a maximum propagation delay of 400 nanoseconds, enabling data rates of 10 Mbit/s or higher. It is optimized for industrial environments, withstanding temperatures from -40°C to 85°C.
This device consumes a low supply current of 15.5mA, facilitating power-efficient applications. Although not meeting automotive standards, it is suitable for a wide range of industrial and commercial electronics requiring reliable serial communication.
The component has precise dimensions (5mm length, 3.98mm width, and 1.75mm height) and mounts on the surface, making it ideal for compact electronic assemblies. It provides a single channel for data transmission, simplifying system design.
The device supports differential input and output signals for noise immunity. Non-inverting polarity ensures signal integrity in transmission. Operates with a supply voltage range of 4.5V to 5.5V. Surface mount 8-pin SOIC package for compact design.
Maximum propagation delay time of 400ns for high-speed communication. Wide operating temperature range from -40°C to 85°C. Low supply current of 15.5mA for energy efficiency. Single communication channel for RS-485 bus systems.
Compact dimensions ideal for PCB integration. Not automotive standard compliant, suitable for industrial applications.
Applications include industrial automation, data communication interfaces, and control systems requiring differential signaling for noise rejection. This component is critical in enhancing production efficiency through reliable machinery insertion.
Explore the Electronics & Electricals category for similar semiconductor products and interface ICs suited for diverse industrial needs on EnvMart.
Explore more products in our Line Transceiver IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 4.5V to 5.5V.
The maximum propagation delay time is 400 nanoseconds, supporting high-speed data rates.
It has precise dimensions of 5mm in length, 3.98mm in width, and 1.75mm in height.
The operating temperature range is from -40°C to 85°C, making it suitable for industrial environments.
It consumes a low supply current of 15.5mA, which is efficient for power usage.
The SN65HVD11D provides a differential output type, enhancing noise immunity.
This unit features a surface mount package type, specifically an 8-pin SOIC form factor.
It supports a single communication channel for RS-485 bus systems.
It has a non-inverting polarity, which ensures signal integrity during transmission.
This model is suitable for applications in industrial automation, data communication interfaces, and control systems requiring differential signaling.
It belongs to the SN74 logic family, designed for line transceiver functions.
The maximum high-level output current is -60mA, while the maximum low-level output current is 60mA.
