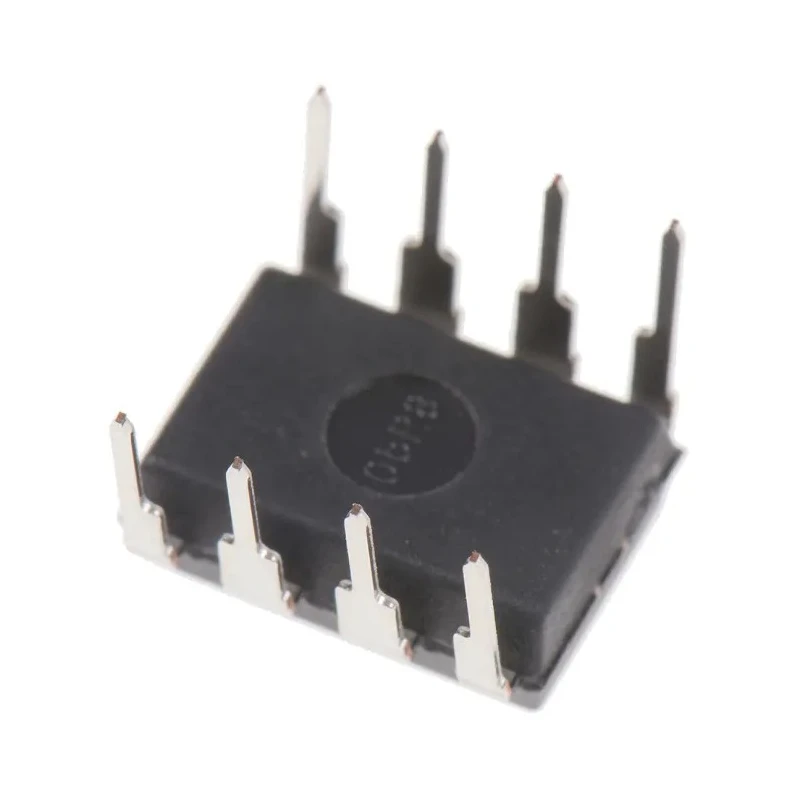

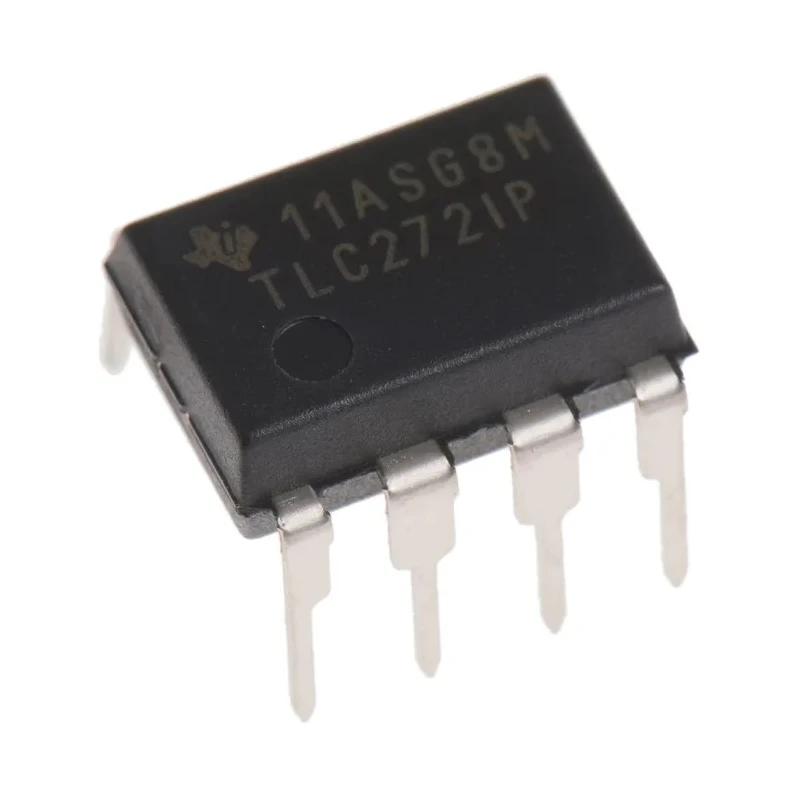

Texas Instruments Operational Amplifier, Dual Channel, 1.7 MHz Gain Bandwidth, 8-Pin PDIP, 5V to 16V TLC272IP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | TLC272IP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | TLC272 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.7MHz |
| Input Bias Current | 35 pA |
| Vos - Input Offset Voltage | 13 mV |
| Slew Rate | 3.6V/μs |
| Input Offset Current | 15 pA |
| TLC272CP Texas Instruments, Op Amp, 1.7MHz, 5 → 15 V, 8-Pin PDIPBrand | Texas Instruments |
Key Features
- This device features a low input offset voltage of 13 mV for precise signal amplification.
- It operates reliably within a temperature range from -40°C to 85°C.
- The operational amplifier has a slew rate of 3.6 V/µs and an output current capability of 30 mA.
- With ultra-low input bias and offset currents, it is suitable for precision analog circuits.
- The compact PDIP package measures 9.81 mm length by 6.35 mm width and 4.57 mm height.
- The TLC272 series provides CMOS precision linCMOS technology ensuring stability and low noise.
Product Description
The Texas Instruments TLC272IP is a precision dual-channel operational amplifier designed for applications requiring high gain bandwidth and stability. It operates at 1.7 MHz gain bandwidth product, suitable for signal conditioning, filtering, and amplification in both industrial and laboratory electronic circuits.
This dual op-amp features low input bias current of 35 pA and input offset current of 15 pA, minimizing error in sensitive analog measurements. Its low input offset voltage of 13 mV and a slew rate of 3.6 V/µs ensure quick response to input variations.
Housed in an 8-pin PDIP package for through-hole mounting, the chip measures 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, making it suitable for compact PCB layouts. It operates within a supply voltage range of 5 V to 16 V, with a maximum output current of 30 mA, enabling it to drive moderate loads.
The device is rated for operation between -40°C and 85°C, allowing use in harsh industrial environments. It employs linCMOS technology, enabling precision linear amplification with low power consumption.
Common applications include signal amplification in instrumentation, control systems, audio electronics, and industrial measurement equipment. Its reliable performance makes it ideal for industrial machines, laboratory instruments, semiconductor equipment, and HVAC control systems.
This device features a low input offset voltage of 13 mV for precise signal amplification. It operates reliably within a temperature range from -40°C to 85°C. The operational amplifier has a slew rate of 3.6 V/µs and an output current capability of 30 mA.
With ultra-low input bias and offset currents, it is suitable for precision analog circuits. The compact PDIP package measures 9.81 mm length by 6.35 mm width and 4.57 mm height. The TLC272 series provides CMOS precision linCMOS technology ensuring stability and low noise.
Explore more Operational Amplifiers and semiconductor components on EnvMart to enhance your electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.7 MHz, making it suitable for various signal conditioning and amplification applications.
The input offset voltage for the TLC272IP is 13 mV, which helps in achieving precise signal amplification.
This model operates reliably within a temperature range from -40°C to 85°C, allowing it to function in harsh environments.
The TLC272IP has an output current capability of 30 mA, enabling it to drive moderate loads effectively.
The PDIP package measures 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, making it suitable for compact PCB layouts.
This operational amplifier uses through-hole mounting, which is common for many electronic applications.
The slew rate of the TLC272IP is 3.6 V/µs, allowing for quick response to input variations.
The input bias current for this operational amplifier is 35 pA, which minimizes error in sensitive analog measurements.
The maximum supply voltage for the TLC272IP is 16 V, while the minimum is 5 V, providing flexibility in power supply options.
The TLC272IP is suitable for applications such as signal amplification in instrumentation, control systems, audio electronics, and industrial measurement equipment.
The input offset current of this operational amplifier is 15 pA, which contributes to its precision in analog circuits.
The TLC272IP belongs to the TLC272 series, which is known for its CMOS precision linCMOS technology ensuring stability and low noise.
