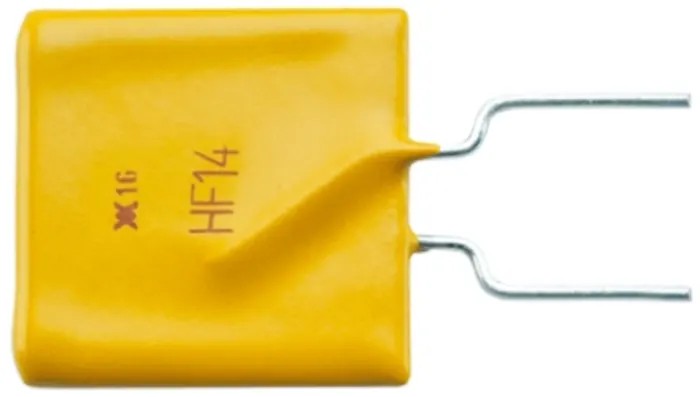

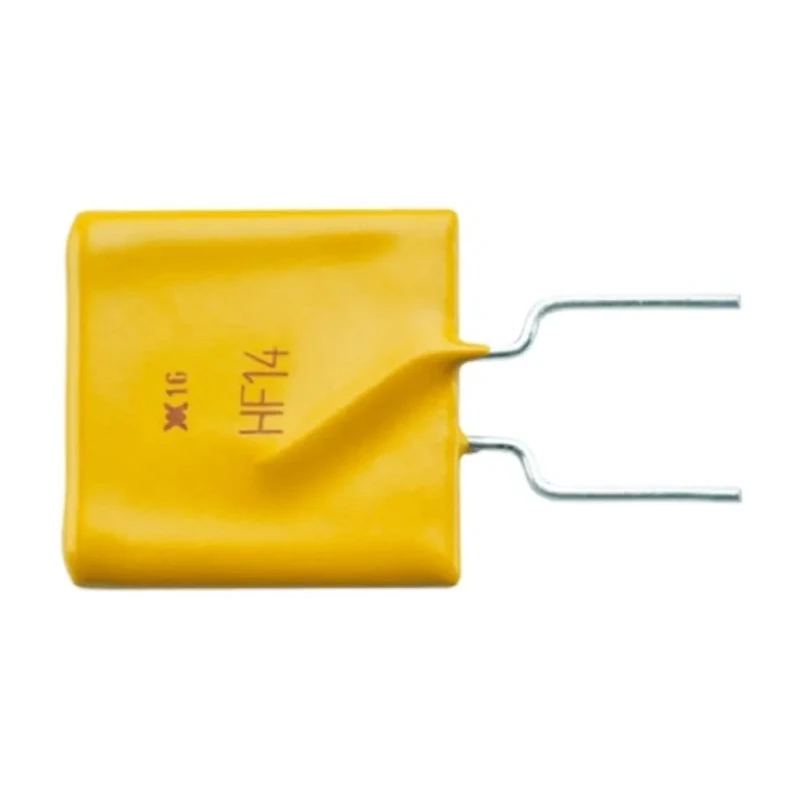

Littelfuse 14 A Resettable Fuse 16V DC, Radial Lead, Power Dissipation 6.9W RHEF1400

Littelfuse RHEF1400 Resettable Fuse 14 A 16V DC is an advanced PolySwitch™ PTC device designed for protecting electrical and electronic circuits from excessive current overloads and short circuits. Featuring a radial lead configuration, this fuse provides reliable automatic reset capability after fault conditions are cleared, making it maintenance-free and highly durable.

The device quickly transitions from a low resistance state to a high resistance state within approximately 13 seconds when the current exceeds the trip rating, effectively protecting sensitive components. After power is removed and the fault is cleared, it resets itself thousands of times without needing replacement.

Measuring 23.5mm in length, 28.6mm in height, and 3.6mm in width, this compact fuse has a hold current rating of 14A and a trip current of 27A at 16V DC, with a maximum current rating of 40A. It dissipates up to 6.9W of power and can operate safely within a temperature range of -40°C to 60°C.

Manufactured to meet rigorous safety standards including UL, CSA, and TUV certifications, and RoHS compliance, the RHEF1400 fuse is suitable for diverse industrial applications such as security systems, power supplies, transformers, automotive and medical equipment, instrumentation, control systems, computers, audiovisual devices, and telecommunications equipment.

Constructed for effective circuit protection with a radial lead orientation and low resistive losses, the fuse ensures enhanced reliability in industrial, laboratory, manufacturing, and commercial environments.

This resettable fuse features a hold current of 14 amperes and a trip current of 27 amperes. Operates at a voltage rating of 16 volts DC suitable for low voltage applications. Compact radial lead design with dimensions of 23.5mm length, 28.6mm height, and 3.6mm width.

Power dissipation is rated at 6.9 watts ensuring safe thermal performance. Quick response time to trip in approximately 13 seconds under fault conditions. Minimum resistance is 0.003 ohms with a maximum resistance of 9 milliohms.

Certified to UL, CSA, TUV standards and RoHS compliant for reliable and safe use. Minimum operating temperature is -40°C and maximum operating temperature is 60°C. Ideal for protecting electronic circuits in security systems, power supplies, automotive, and medical equipment.
