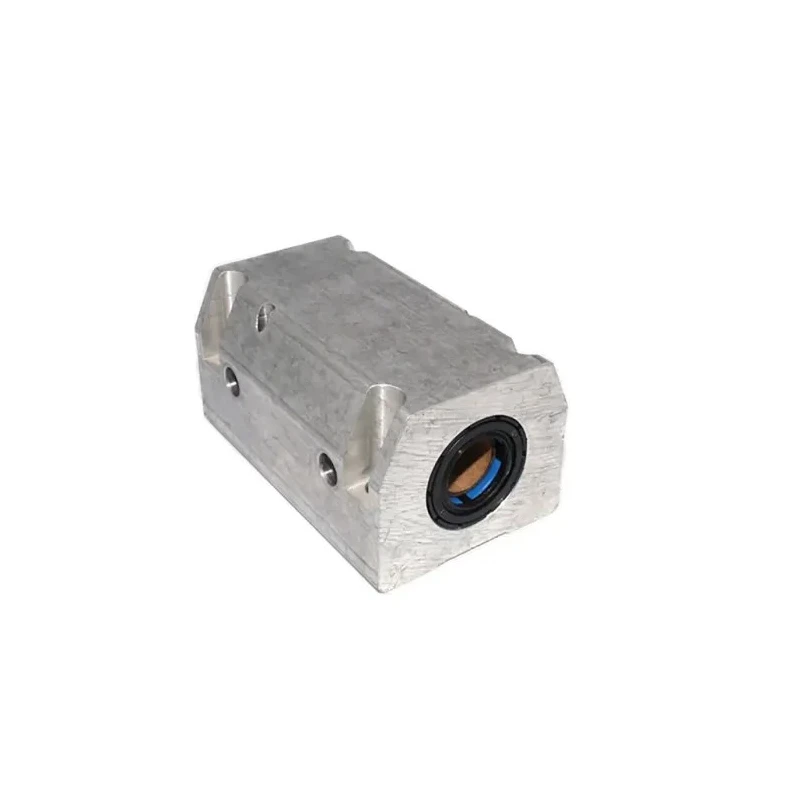

INA Bearing Unit Compact Mounted 20mm Bore 3.5kN Dynamic Load 4.6kN Static Load 50mm Length 60mm Height 96mm KTSG20-PP-AS
Specifications
| Country of Origin | India |
|---|---|
| Brand | INA |
| Model | KTSG20-PP-AS |
| Mount Type | 2-Bolt Base |
| Overall Length | 50mm |
| Series | KTSG |
| Overall Width | 96mm |
| Overall height | 60mm |
| Static Load Rating | 4.6kN |
| Dynamic Load Rating | 3.5kN |
| Bearing Inside Diameter | 20mm |
| Base to Bore Centerline | 25mm |
| Acceptable Bearing Type | Closed |
Key Features
- This unit has a dynamic load rating of 3.5kN suitable for continuous rotation.
- Static load rating of 4.6kN provides strength against peak stationary loads.
- The 2-bolt base mount simplifies secure installation.
- Compact housing designed with 96mm overall width and 60mm overall height for space-constrained setups.
- The 25mm base-to-bore centreline allows precise vertical alignment.
- Closed bearing design reduces contamination ingress during operation.
- Ideal for conveyor shaft supports, reduction gear shafts, and automated handling equipment pivots.
- Supports shafts of 20mm diameter, meeting standard industrial shaft sizing.
Product Description
INA KTSG20-PP-AS Bearing Unit is a compact mounted linear bearing unit designed with a closed insert bearing featuring a 20mm bore diameter. It is engineered for supporting rotating shafts in industrial assemblies, delivering strong resistance to static and dynamic loads.
This bearing unit's housing measures 96mm in width, 60mm in height, and 50mm overall length, providing a low-profile footprint for easy integration into machinery operating in confined spaces.
The unit offers a dynamic load rating of 3.5kN, suitable for continuous rotating loads, and a static load rating of 4.6kN, enabling it to withstand intermittent high loads without permanent deformation. Its 2-bolt base mount and 25mm base-to-bore centreline facilitate straightforward installation and precise vertical alignment.
The closed bearing construction reduces contamination ingress, enhancing durability and minimizing maintenance requirements. This product is ideal for conveyor shaft supports in light machinery, reduction gear shafts in compact drives, machine tool subassemblies requiring bearing replacement, pivot supports in automated handling, and packaging line mechanisms.
This bearing unit provides high static load resistance of 4.6kN. It supports continuous rotational loads with a 3.5kN dynamic rating. Compact dimensions suit installation in tight industrial spaces. Closed insert bearing design improves contamination resistance.
Standard 20mm bore accommodates common shaft sizes. 2-bolt base and 25mm centreline simplify secure alignment and mounting. Ideal for conveyor drives, gear shafts, automated equipment pivots, and packaging machinery. Explore more INA Bearing Units and linear motion components for industrial and mechanical engineering projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The INA KTSG20-PP-AS Bearing Unit has a dynamic load rating of 3.5kN, making it suitable for continuous rotating loads.
This model features a static load rating of 4.6kN, allowing it to withstand intermittent high loads without permanent deformation.
The overall dimensions of the INA KTSG20-PP-AS Bearing Unit are 50mm in length, 96mm in width, and 60mm in height.
The bearing unit has a bore diameter of 20mm, accommodating standard industrial shaft sizes.
It features a 2-bolt base mount, which simplifies secure installation and alignment.
The base-to-bore centerline measurement of this unit is 25mm, allowing for precise vertical alignment during installation.
This bearing unit has a closed bearing design, which helps reduce contamination ingress during operation.
This model is ideal for applications such as conveyor shaft supports, reduction gear shafts, and pivots in automated handling equipment.
The INA KTSG20-PP-AS Bearing Unit is manufactured in India.
This bearing unit belongs to the KTSG series, which includes compact mounted linear bearing units.
The acceptable bearing type for the INA KTSG20-PP-AS is a closed bearing.
The closed bearing design enhances durability by minimizing contamination ingress, which can lead to reduced maintenance requirements.
