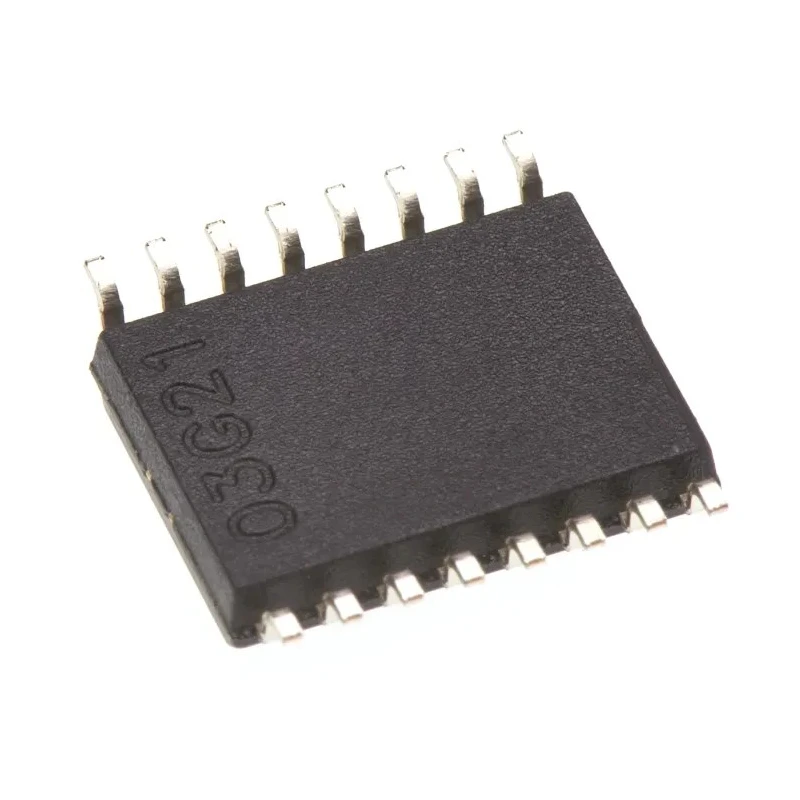

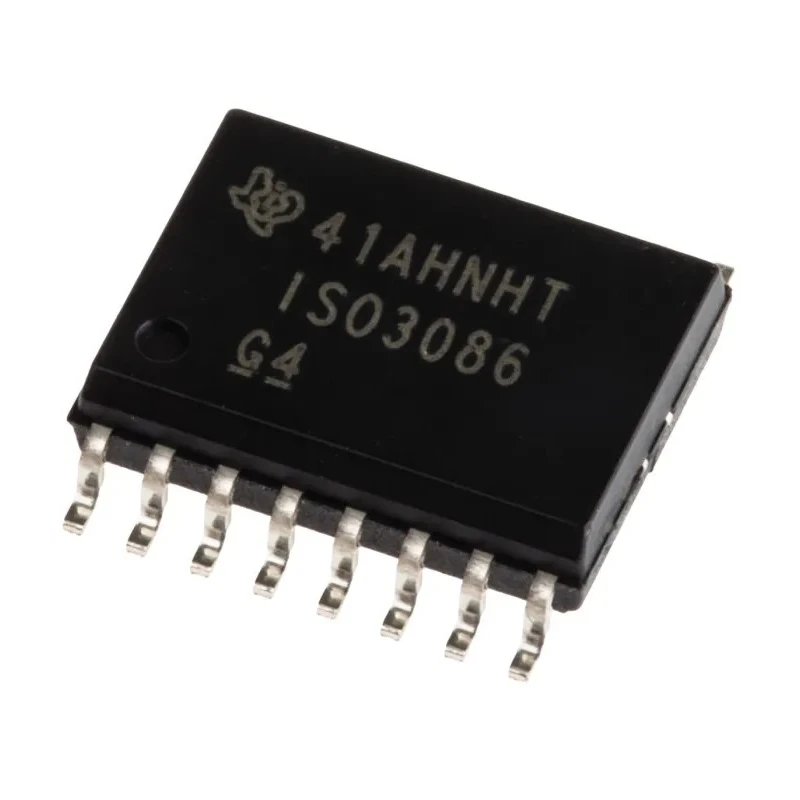

Texas Instruments CMOS Bipolar Line Transceiver IC, Surface Mount 16-Pin SOIC ISO3086DW

Texas Instruments ISO3086DW is a high-speed RS-485 line transceiver integrated circuit featuring CMOS logic family and bipolar polarity. Designed for surface mounting, it comes in a 16-pin SOIC package, making it suitable for compact and efficient PCB designs.

This line transceiver operates over a supply voltage range from -0.3V to 6V, enabling usage in a wide range of electronic applications. With a maximum propagation delay time of 45 nanoseconds at a given capacitive load, it ensures fast data transmission suitable for high-speed communication interfaces.

The IC is rated to operate reliably within a temperature range of -45°C to 85°C, allowing functionality in various industrial and commercial environments. It features CMOS outputs that contribute to low power consumption, making it an efficient choice for power-sensitive designs.

The 16-pin SOIC package physically measures 10.5mm in length, 7.6mm in width, and 2.65mm in height. Its surface mount design facilitates automated assembly in modern electronics manufacturing.

Texas Instruments’ ISO3086DW transceiver IC is commonly used in industrial automation, communication systems, and other electronic devices requiring robust and high-speed differential data transmission through RS-485 standard interfaces.

Operates within broad voltage and temperature ranges for industrial use. Compact 16-pin SOIC package for surface mount PCB applications. High-speed performance with a maximum propagation delay of 45ns. Low power CMOS output for energy-efficient operation.

Supports robust bipolar polarity line signaling. Suited for industrial, commercial, and communication equipment. Facilitates reliable RS-485 differential line driving and receiving. Dimensions are optimized for space-saving circuit board layouts.

Designed for high reliability and extended operating temperatures.

Explore additional Texas Instruments Line Transceiver ICs and related semiconductor products within EnvMart’s broad electronics component catalog to find the ideal match for your application needs.
