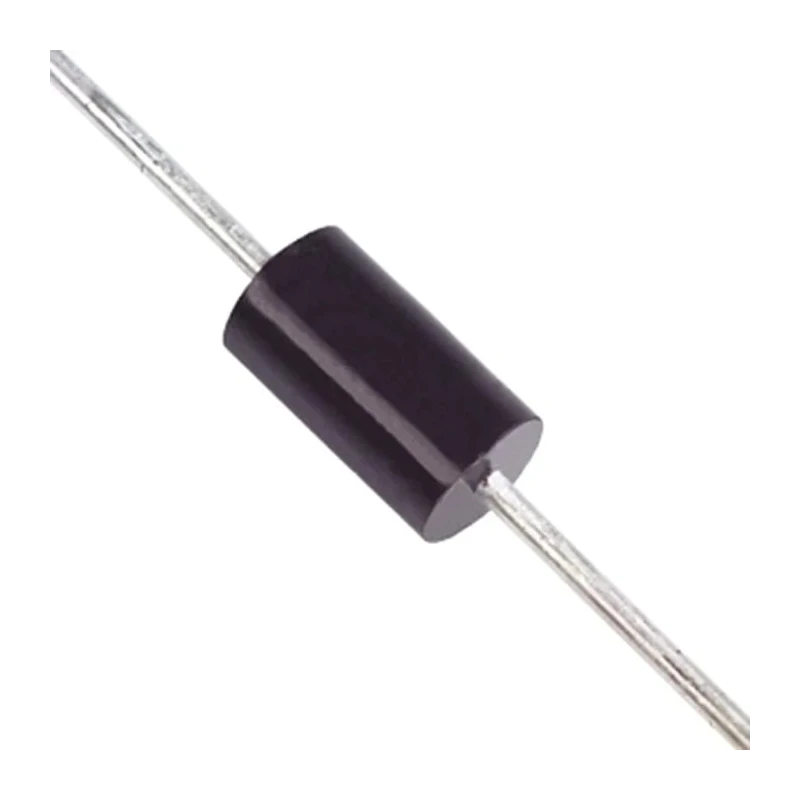

onsemi General Purpose 100 V 3 A Silicon Junction Diode DO-201AD 1N5401G
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | onsemi |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1N5401G |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1N5401 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 1V |
| onsemi 100V 3A, Silicon Junction Diode, 2-Pin DO-201AD 1N5401GBrand | ON Semiconductor |
Key Features
- Capable of managing high forward surge currents safely.
- Low forward voltage drop of 1V ensuring efficient conduction.
- Wide operating temperature range from -65°C to 150°C for reliable performance.
- Matte tin plated leads solderable per industry standards with flame retardant body.
- Single diode configuration in a molded epoxy DO-201AD package.
- Peak reverse current rated at 10μA minimizing leakage.
- Standard recovery time of more than 500 ns suitable for general purpose applications.
- Ideal for rectification in power supplies, converters, inverters, and freewheeling diodes.
Product Description
onsemi 1N5401G general purpose silicon junction diode is designed for reliable and efficient rectification in a variety of electronic circuits. It features a through-hole mount DO-201AD molded plastic package providing robust mechanical protection and ease of installation. With a maximum continuous forward current of 3 A and peak reverse repetitive voltage of 100 V, it fulfills requirements for medium power rectification tasks in industrial and consumer electronic applications.
The diode’s low forward voltage drop of 1 V allows for minimal power dissipation and improved efficiency in power supply circuits. It supports high forward surge currents up to 200 A, offering robustness during transient conditions. The maximum operating temperature of 150°C and a minimum operating temperature down to -65°C assure performance in harsh environments, making this diode suitable for automotive and industrial uses.
Its matte tin plated leads are compliant with J-STD-002 and JESD 22-B102 soldering standards, ensuring reliable solder joints. Flame retardant UL94 V-0 epoxy construction enhances safety. The coloured band on the diode body clearly marks the cathode, facilitating correct circuit placement. Standard recovery times exceeding 500 ns make it well suited for general purpose rectification tasks including converters, inverters, power supplies, and freewheeling diodes.
Capable of managing high forward surges safely. Low forward voltage drop reduces power loss. Wide temperature range suits diverse operating environments. Flame retardant epoxy construction meets safety standards. Matte tin plated leads ensure solderability.
Single diode configuration with 2-pin DO-201AD package. Compact size optimizes PCB layout. Ideal for general purpose rectification in power electronics. Reliable for industrial, automotive, and consumer electronics applications.
This onsemi diode is an excellent choice for engineers and technicians needing a dependable general purpose rectifier diode compliant with RoHS standards. Browse more semiconductor components and Diodes suitable for varied industrial and electronic applications in the EnvMart catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 3 A.
The peak reverse repetitive voltage rating is 100 V.
The dimensions of the DO-201AD package are 9.5 mm in length, 5.3 mm in width, and 5.3 mm in height.
The operating temperature range for this diode is from -65°C to 150°C.
The forward voltage drop is 1 V, which helps in ensuring efficient conduction.
The peak non-repetitive forward surge current rating is 200 A.
This diode uses a through-hole mounting type.
The standard recovery time for the 1N5401G is more than 500 ns.
The peak reverse current is rated at 10 μA, which minimizes leakage.
The epoxy construction meets flame retardant UL94 V-0 safety standards.
This diode is suitable for general purpose rectification in power supplies, converters, inverters, and as freewheeling diodes.
The diode is manufactured in India.
