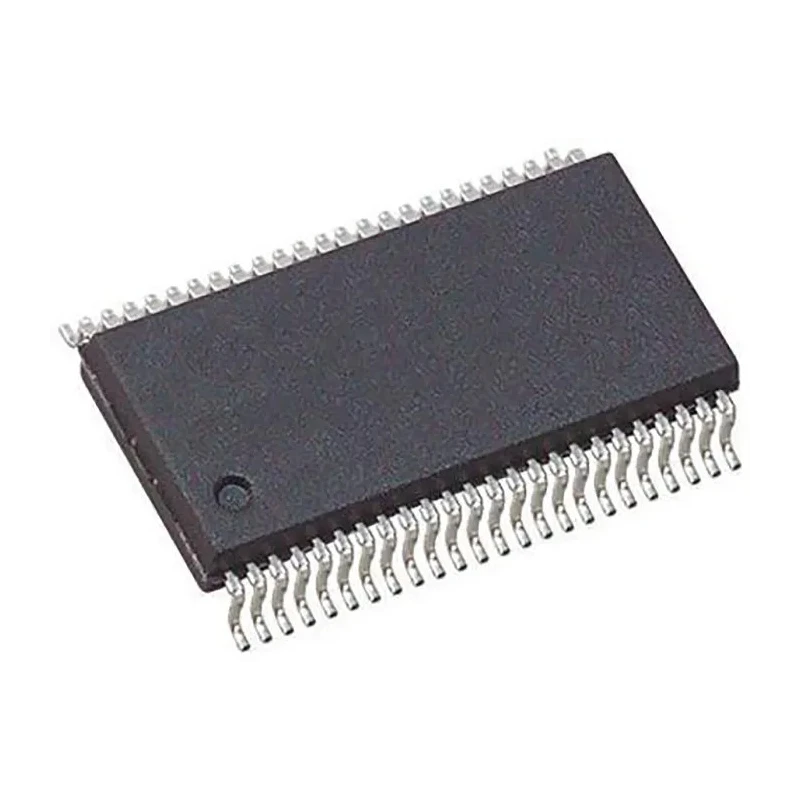

Texas Instruments 16-Bit Non-Inverting LVTTL Bus Transceiver, 48-Pin TSSOP SN74LVTH16245ADGGR

Texas Instruments SN74LVTH16245ADGGR is a high-performance 16-bit bus transceiver designed for reliable bidirectional data transfer with non-inverting LVTTL logic levels. The device is housed in a 48-pin TSSOP package optimized for surface mounting, making it suitable for a wide range of electronic component assemblies, including semiconductor applications and embedded systems.

Operating with a supply voltage range from 2.7V to 3.6V, this bus transceiver combines the advantages of low-voltage CMOS technology and BiCMOS logic, resulting in fast switching and low power dissipation. The maximum propagation delay time of 3.7ns at load capacitance enables high-speed data communication essential for modern digital systems.

With 16 channels, this component provides ample capacity for complex bus architectures in computing, communications, and control hardware. The non-inverting polarity and compatibility with LVTTL/TTL input levels ensure seamless interfacing with other components using standard logic voltages.

Key electrical parameters include maximum high level output current of -32mA and maximum low level output current of 64mA, supporting robust driving capabilities. The device features 3-state outputs to allow bus sharing and reduce power consumption when necessary. Additionally, the bus hold feature on the inputs reduces the need for large external pull-up resistors, improving design simplicity and reliability.

This component is rated for operation in industrial temperature ranges from -40°C to 85°C, suitable for commercial and industrial electronics systems. The compact height of 1.15mm and length of 12.5mm support space-efficient designs.

Operates from 2.7V to 3.6V supply voltage. High-speed BiCMOS logic technology. 16 communication channels for versatile bus applications. Non-inverting LVTTL bus transceiver function. Three-state output type for controlled bus driving.

Maximum propagation delay time of 3.7ns ensures fast data transfer. Input compatibility with LVTTL and TTL logic levels. Bus hold feature eliminates need for bulky pull-up resistors. Industrial temperature range rating for reliability in harsh environments.

Compact 48-pin TSSOP surface mount package.

This bus transceiver is ideal for use in electronic component manufacturing, power and connector semiconductor applications, logic IC designs, and embedded digital systems requiring efficient and fast bidirectional bus communication.
