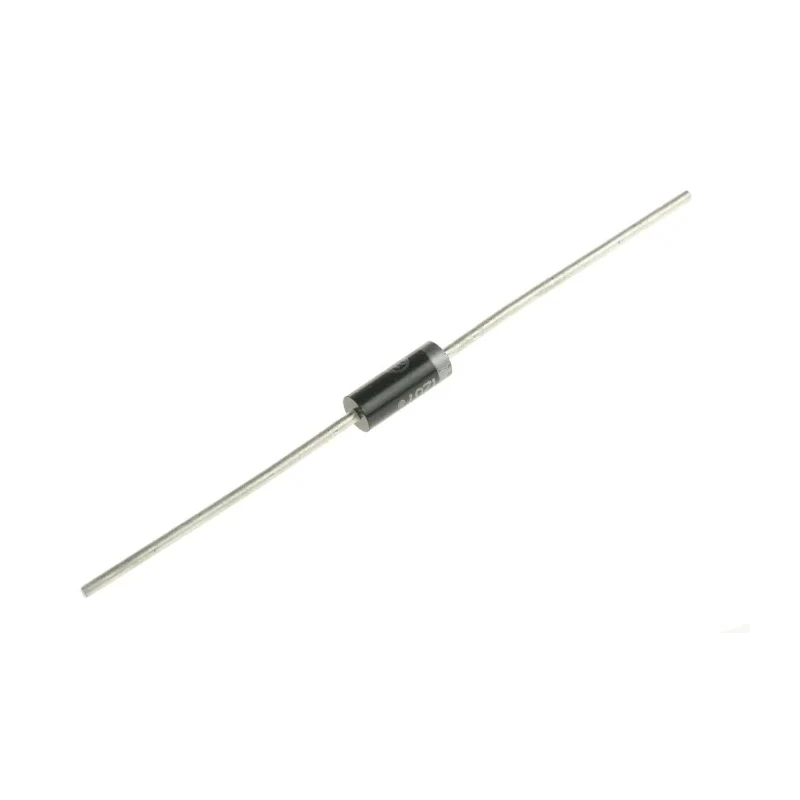

onsemi Zener Diode 33 V 5 W Voltage Regulator Through Hole 2-Pin DO-15 1N5364BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5364BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 40mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 33V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 10Ω |
Key Features
- Provides a nominal Zener voltage of 33 V with ±5% tolerance.
- Maximum power dissipation of 5 W for reliable voltage regulation.
- Features a single diode configuration with 2 pins for secure mounting.
- Operates within a wide temperature range from -65°C to 200°C.
- Equipped with a maximum reverse leakage current of 500 nA and impedance of 10 Ω.
- Compact DO-15 package measuring 8.89 mm in length and 3.68 mm in height.
- Suitable for use in voltage regulation and over-voltage protection in electronic circuits.
- Designed for through hole mounting ensuring solid mechanical and electrical connection.
Product Description
The onsemi 1N5364BRLG is a 33 V Zener Diode specifically designed as a voltage regulator with a power dissipation rating of 5 W. Its through hole 2-pin DO-15 package allows for easy and secure installation in electronic assemblies.
This diode features a nominal Zener voltage of 33 V with a tolerance of ±5%, making it ideal for applications requiring precise voltage clamping and stabilization. It can operate reliably over a wide temperature range from -65°C to 200°C, making it suitable for industrial, laboratory, and commercial electronics environments.
The device includes a single diode element and offers a maximum reverse leakage current of just 500 nA and a maximum Zener impedance of 10 Ω. Physical dimensions are compact, with a length of 8.89 mm and a height of 3.68 mm, ensuring efficient space utilization on circuit boards.
Typical use cases for this Zener diode include voltage regulation, over-voltage protection, and electrical noise reduction across various electronic components in power supplies and signal conditioning circuits.
The through hole mounting type provides a robust mechanical connection, beneficial for circuits exposed to vibration or mechanical stress. Nominal Zener Voltage of 33 V with ±5% tolerance. Maximum Power Dissipation of 5 W for reliable operation.
Single diode configuration suitable for voltage stabilization. 2-pin DO-15 Through Hole package for secure mounting. Temperature range from -65°C to 200°C for industrial reliability. Low maximum reverse leakage current of 500 nA.
Compact dimensions ensure efficient board usage. Ideal for industrial and laboratory voltage regulation applications.
This onsemi Zener Diode 1N5364BRLG is a critical component for engineers and technicians working on power regulation, control systems, and protection circuitry in electronic device manufacturing and repair.
Explore more on semiconductors and electronic components at EnvMart to find compatible and complementary parts to meet your project needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 33 V with a tolerance of ±5%.
It has a maximum power dissipation of 5 W, ensuring reliable voltage regulation.
The DO-15 package measures 8.89 mm in length and 3.68 mm in height.
The maximum operating temperature for this diode is 200°C.
The minimum operating temperature is -65°C, allowing for use in extreme conditions.
The maximum reverse leakage current is 500 nA.
This model uses through hole mounting, ensuring a secure mechanical and electrical connection.
It features a 2-pin configuration for installation.
The maximum Zener impedance is 10 Ω.
This Zener diode is suitable for voltage regulation and over-voltage protection in electronic circuits.
It has a single diode configuration, making it suitable for voltage stabilization.
This diode belongs to the 1N53 series.
