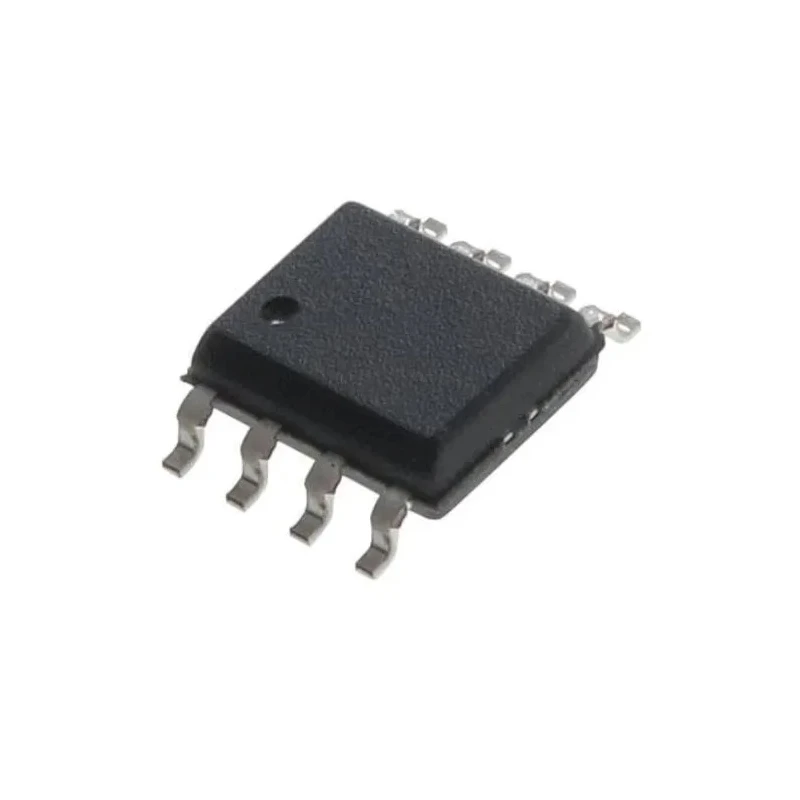

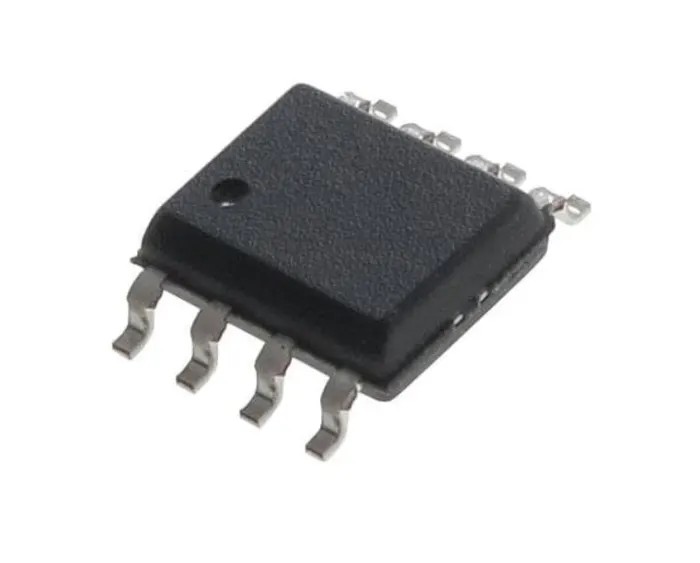

Microchip Operational Amplifier, 1 MHz Gain Bandwidth, 8-Pin SOIC, Dual Channel, 3-6V MCP6002-I/SN

Microchip MCP6002-I/SN is a high-performance operational amplifier designed for surface mount installation in an 8-pin SOIC package. It provides dual amplifier channels with a gain bandwidth product of 1 MHz, suitable for precise signal amplification tasks in electronic circuits. The device operates on a supply voltage range from 3 to 6 volts, which allows for flexible power management in a variety of industrial and commercial electronics applications.

This operational amplifier features a low input bias current of 19 pA and a minimal input offset voltage of 4.5 mV, enhancing measurement accuracy and reducing signal distortion. The slew rate of 0.6 V/μs enables it to quickly respond to rapid input signal changes, improving overall performance in dynamic signal environments.

The compact SOIC package measures 4.9mm in length, 3.9mm in width, and 1.25mm in height, making it suitable for dense PCB layouts. It can reliably operate in harsh conditions with an operating temperature range from -40°C to 85°C, ensuring durability and functionality in various industrial, lab instrumentation, and electronic equipment environments.

The MCP6002-I/SN supports an output current of 23 mA, capable of driving moderate loads, making it versatile for general analog signal processing and amplification. This part meets RoHS compliance, ensuring it adheres to environmental safety directives. However, it is not certified for automotive standards.

Ideal applications include power management circuits, signal conditioning, sensor interfacing, data acquisition systems, and embedded electronic designs requiring low noise and low power consumption amplifiers. The device is part of the MCP600x series renowned for reliability and performance by Microchip Technology.

Dual channel operational amplifier with 8-pin SOIC package. Gain bandwidth product of 1 MHz for accurate signal amplification. Wide supply voltage range from 3 to 6 volts for flexible usage. Low input bias current and offset voltage to maximize precision.

Compact dimensions and surface mount package suitable for dense PCB designs. Operating temperature range from -40 to 85 degrees Celsius for industrial robustness. Output current up to 23 mA for driving various loads effectively.

RoHS compliant and environmentally safe. Explore more Operational Amplifiers and semiconductor components within the Microchip product line on EnvMart for your electronic design and manufacturing needs.
