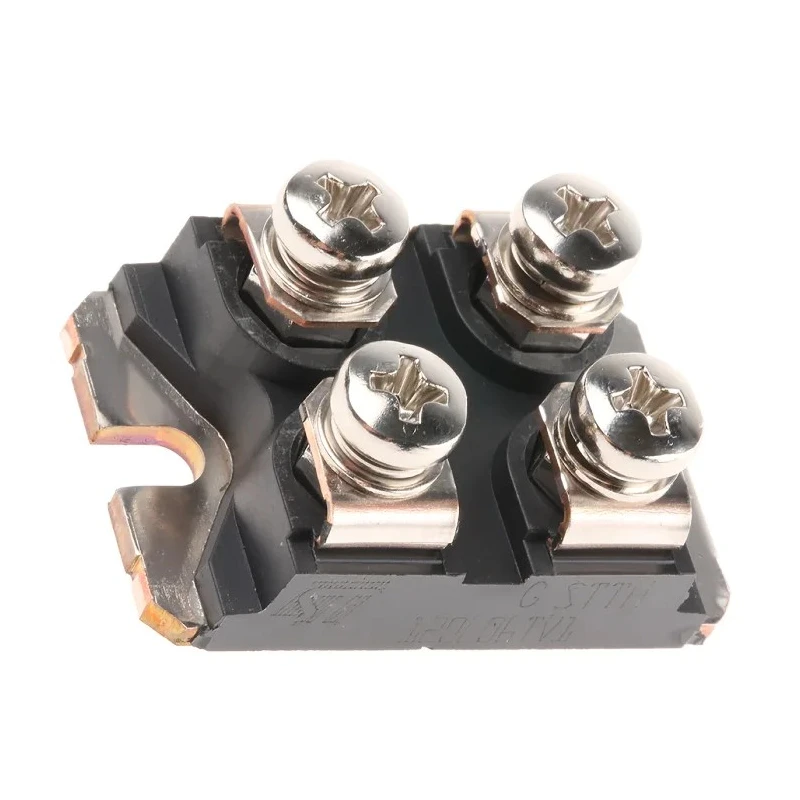

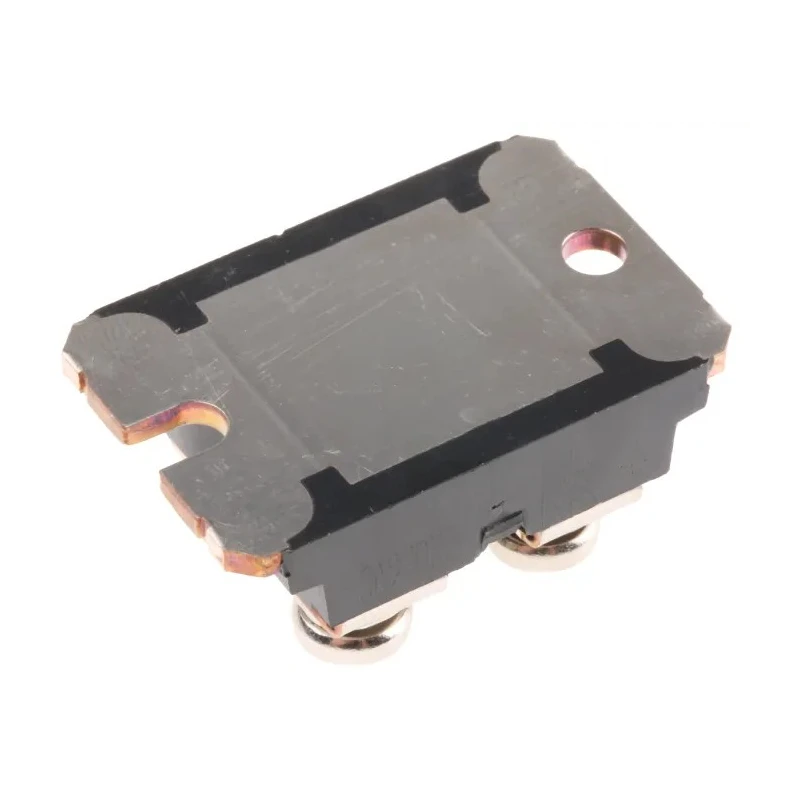

STMicroelectronics 600 V 60 A Switching Diode 4-Pin ISOTOP STTH120L06TV1
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4mm |
| Brand | STMicroelectronics |
| Height | 9.1mm |
| Length | 38.2mm |
| Model | STTH120L06TV1 |
| Width | 25.5mm |
| Mount Type | Panel |
| Series | STTH120L06TV |
| Maximum Operating Temperature | 150°C |
| Package Type | ISOTOP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Maximum Forward Voltage Vf | 1.55V |
| Peak Reverse Recovery Time trr | 105ns |
| STMicroelectronics Diode, STTA12006TV1Brand | STMicroelectronics |
Key Features
- Designed for high-speed switching applications with a peak reverse recovery time of 105 ns.
- Features a maximum forward voltage drop of 1.55 V under rated current.
- Capable of handling peak non-repetitive forward surge current up to 500 A.
- Operates reliably in temperature ranges from -55°C to 150°C.
- Complies with RoHS standards ensuring environmental compliance.
- Isolated diode configuration in a robust panel mount ISOTOP package.
- Extremely low peak reverse current of 50 µA for efficient performance.
Product Description
The STMicroelectronics STTH120L06TV1 is a high-performance switching diode designed for demanding electronic applications requiring robust rectification and switching capabilities. This diode supports a maximum continuous forward current of 60 A and a peak reverse repetitive voltage of 600 V, making it suitable for power conversion, industrial electronics, and power supply circuits.
Housed in a 4-pin ISOTOP package with panel mount capability, this diode provides efficient heat dissipation and mechanical stability for industrial and commercial electronics. Its isolated diode configuration enhances safety and ease of integration in complex circuit designs.
Key electrical parameters include a maximum forward voltage of 1.55 V and a peak reverse recovery time of only 105 ns, enabling rapid switching performance critical in power electronics. The diode supports a non-repetitive forward surge current of 500 A, allowing it to handle transient overloads effectively.
Operating over a broad temperature range from -55°C to 150°C, the STTH120L06TV1 ensures reliable performance in harsh environments. The device conforms to RoHS standards, reflecting compliance with global environmental directives.
High-speed switching diode with a 4-pin ISOTOP package. Maximum forward current: 60 A continuous rating. Peak reverse voltage: 600 V for robust voltage tolerance. Low forward voltage drop minimizes power loss. Superior surge current handling ensures transient robustness.
Wide operating temperature range suitable for industrial applications. Compact dimensions facilitate integration into power modules and assemblies. Compliance with RoHS directive ensures environmental safety.
This diode is ideally suited for power management circuits, industrial automation, and semiconductor applications requiring high reliability and efficiency. It enables designers to build compact, rugged power supplies and converters.
Explore the selection of STMicroelectronics semiconductor devices on EnvMart for advanced electronic component solutions.
Explore more products in our Semiconductor Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the STMicroelectronics STTH120L06TV1 is 60 A.
This diode can handle a peak reverse repetitive voltage of 600 V.
It is capable of managing a peak non-repetitive forward surge current of up to 500 A.
The maximum forward voltage drop under rated current is 1.55 V.
The peak reverse recovery time is 105 ns, which supports high-speed switching applications.
The dimensions of this diode are 38.2 mm in length, 25.5 mm in width, and 9.1 mm in height, with a diameter of 4 mm.
It operates reliably within a temperature range from -55°C to 150°C.
The STTH120L06TV1 is housed in a 4-pin ISOTOP package, suitable for panel mounting.
Yes, it complies with RoHS standards, ensuring environmental safety.
This model features an isolated diode configuration, enhancing safety and integration ease.
It is ideally suited for power management circuits, industrial automation, and semiconductor applications requiring high reliability and efficiency.
The peak reverse current is 50 µA, contributing to its efficient performance.
