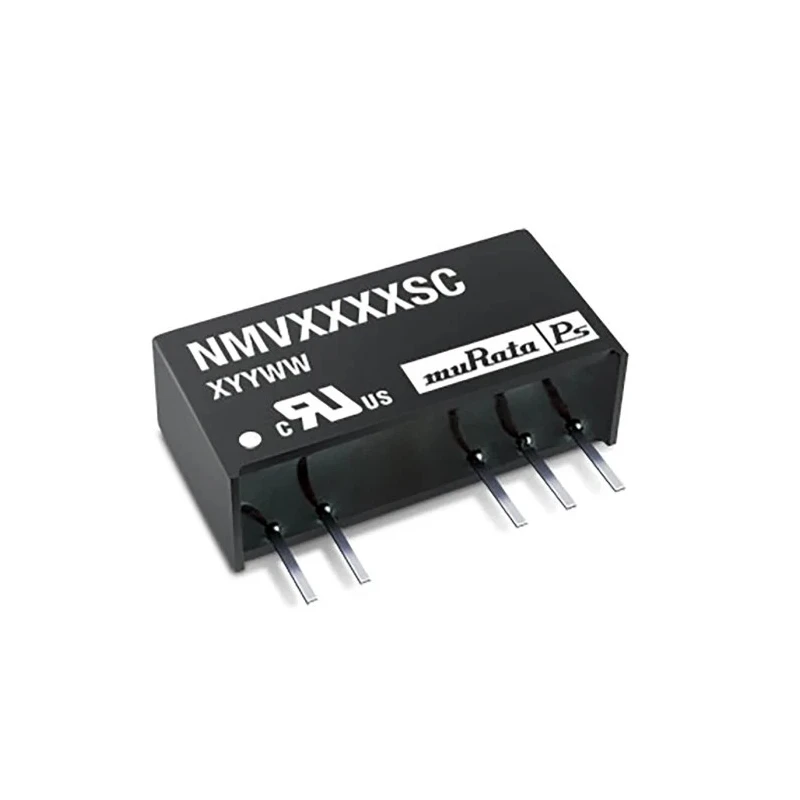

Murata Power Solutions NMV SIP7 2-Output DC/DC Converter 12V DC 42mA 1W Through Hole NMV1212SC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMV DC/DC Converter, 12V dc |
| Brand | Murata Power Solutions |
| Efficiency | 75% |
| Length | 19.5mm |
| Model | NMV1212SC |
| Depth | 10mm |
| Gross Weight | 2.1g |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | NMV |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1287000h |
| Number of outputs | 2 |
| Ripple and Noise | 19mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 42mA |
| Output Voltage Adjustment Range | 10.8/13.2 V |
| Isolation Voltage | 3kV dc |
| Output Voltage 2 | -12V dc |
Key Features
- High efficiency isolated DC/DC converter with 75% efficiency.
- Dual output with output voltages of 12V and -12V DC.
- Operates with input voltage range from 10.8V to 13.2V DC.

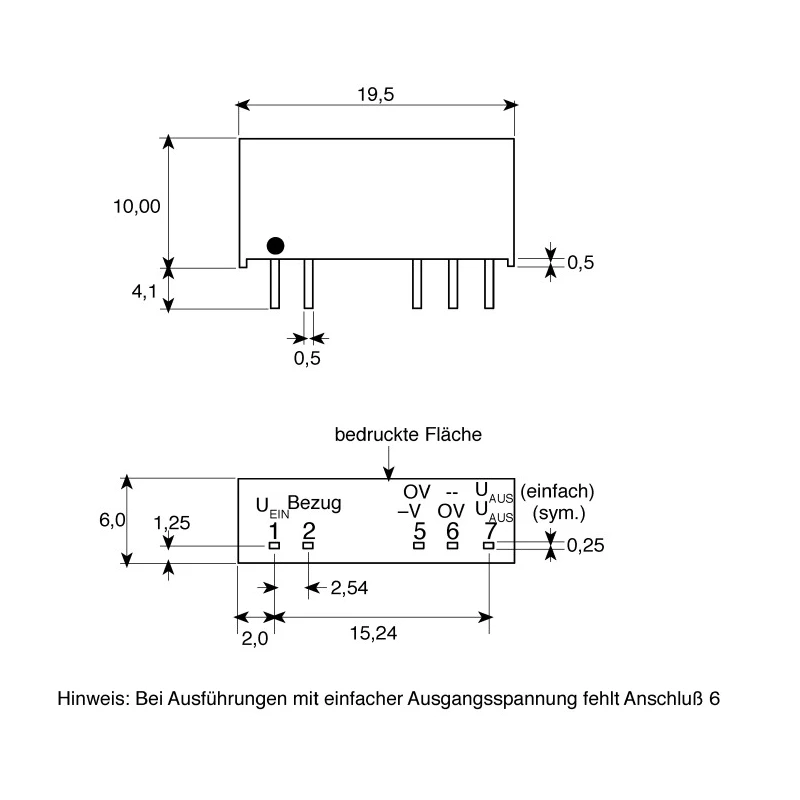

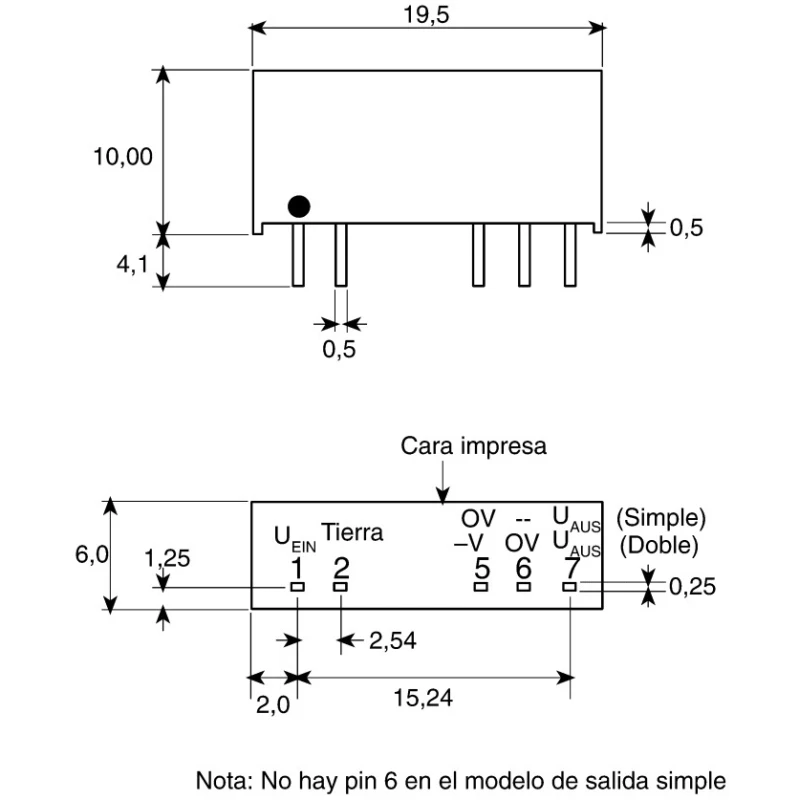

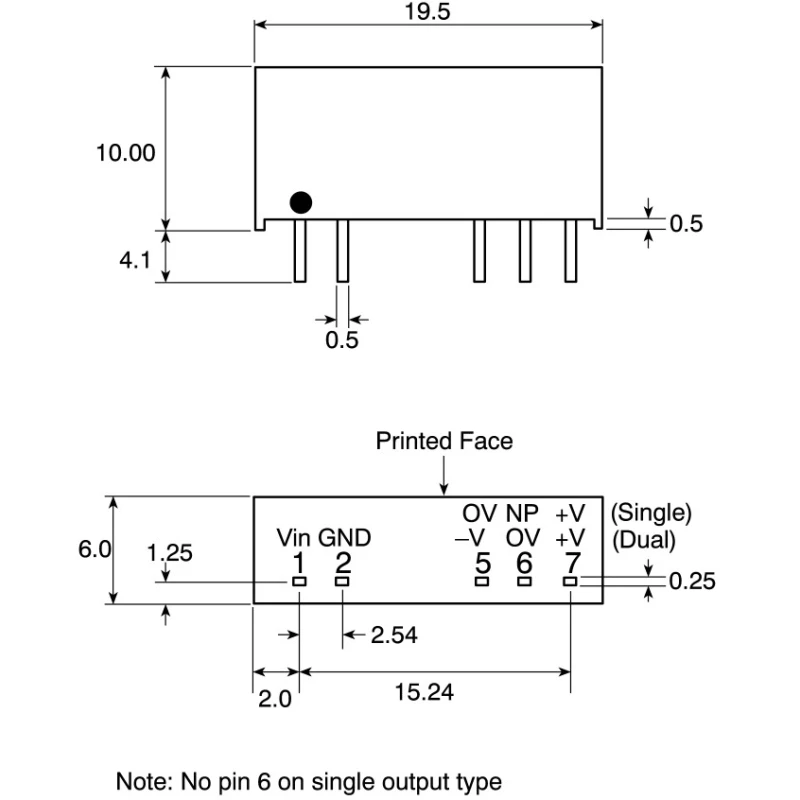

- Compact SIP7 plastic package measuring 19.5mm length, 10mm width and 10mm depth.
- 3kV DC isolation voltage ensures robust electrical isolation.
- Low ripple and noise of 19mV peak-to-peak for stable output.
- High reliability with MTBF of 1,287,000 hours at 25°C ambient temperature.
- No external components required due to internal SMD construction.
Product Description
Murata Power Solutions NMV1212SC DC/DC Converter is a 1W high-efficiency isolated power supply designed for applications requiring low power dual outputs. It delivers 12V and -12V DC output voltages with a nominal 42mA load current, operating from an input voltage range of 10.8V to 13.2V DC. This device features an SIP7 through-hole plastic package that enables easy PCB mounting and integration.
Designed to operate in harsh industrial and electronic environments, it supports a maximum operating temperature of 85°C and a minimum of -40°C. The unit ensures 3kV DC isolation between input and output, suitable for sensitive electronic circuits requiring noise suppression and electrical isolation.
The converter leverages internal surface mount device (SMD) technology and does not require external components for operation, simplifying design efforts. It achieves a typical efficiency of 75%, ensuring minimal power loss and thermally efficient operation. With a low ripple and noise specification of 19mV peak-to-peak, this DC/DC converter provides stable output ideal for instrumentation, telecommunications, industrial controls, and embedded systems.
Its high reliability is further supported by a mean time between failure (MTBF) rating of 1,287,000 hours based on MIL-HDBK-217F standards at 25°C. The package is rated UL 94V-0 for flame retardancy, aligning with safety standards.
This converter is RoHS compliant, allowing environmentally responsible deployments. High efficiency isolated DC/DC converter with 75% efficiency. Dual output with output voltages of 12V and -12V DC. Operates with input voltage range from 10.8V to 13.2V DC.
Compact SIP7 plastic package measuring 19.5mm length, 10mm width and 10mm depth. 3kV DC isolation voltage ensures robust electrical isolation. Low ripple and noise of 19mV peak-to-peak for stable output. High reliability with MTBF of 1,287,000 hours at 25°C ambient temperature.
No external components required due to internal SMD construction. RoHS compliant and uses UL 94V-0 flame retardant package material.
This product is suited for industrial, electronic components, power supply, telecommunications, and measurement applications. Browse the EnvMart catalog for more Murata Power Solutions DC/DC Converters and power supply components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with an input voltage range from 10.8V to 13.2V DC.
This model provides dual outputs of 12V and -12V DC.
It has a typical efficiency of 75%.
The maximum output power is 1W.
It features an isolation voltage of 3kV DC.
The package measures 19.5mm in length, 10mm in width, and 10mm in depth.
It can operate at a maximum temperature of 85°C.
It has a low ripple and noise specification of 19mV peak-to-peak.
No, it does not require external components due to its internal SMD construction.
The MTBF is rated at 1,287,000 hours at 25°C ambient temperature.
Yes, it is RoHS compliant, allowing for environmentally responsible deployments.
It is suitable for applications in instrumentation, telecommunications, industrial controls, and embedded systems.
