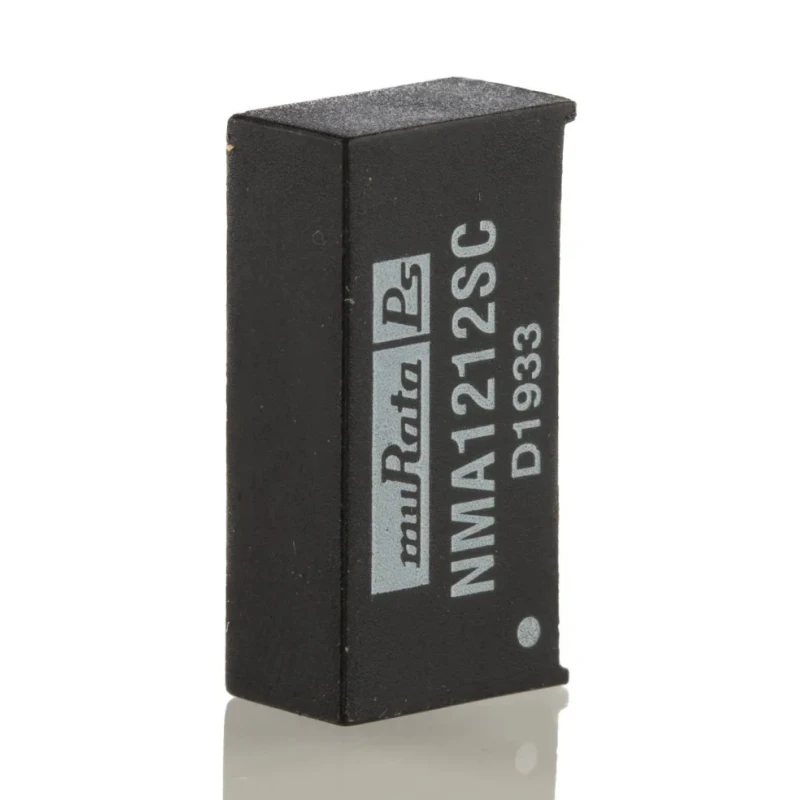

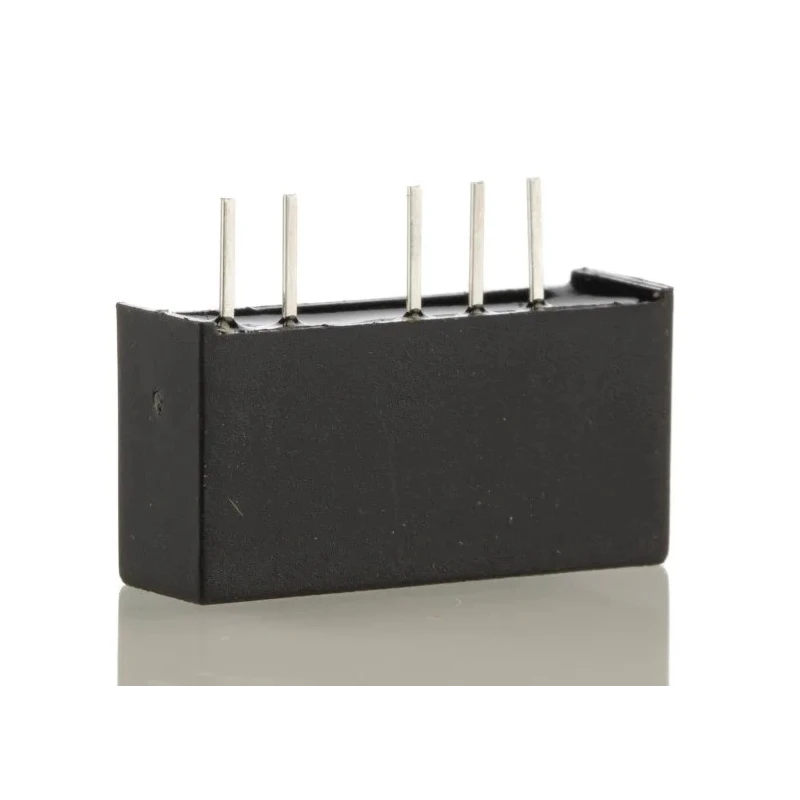

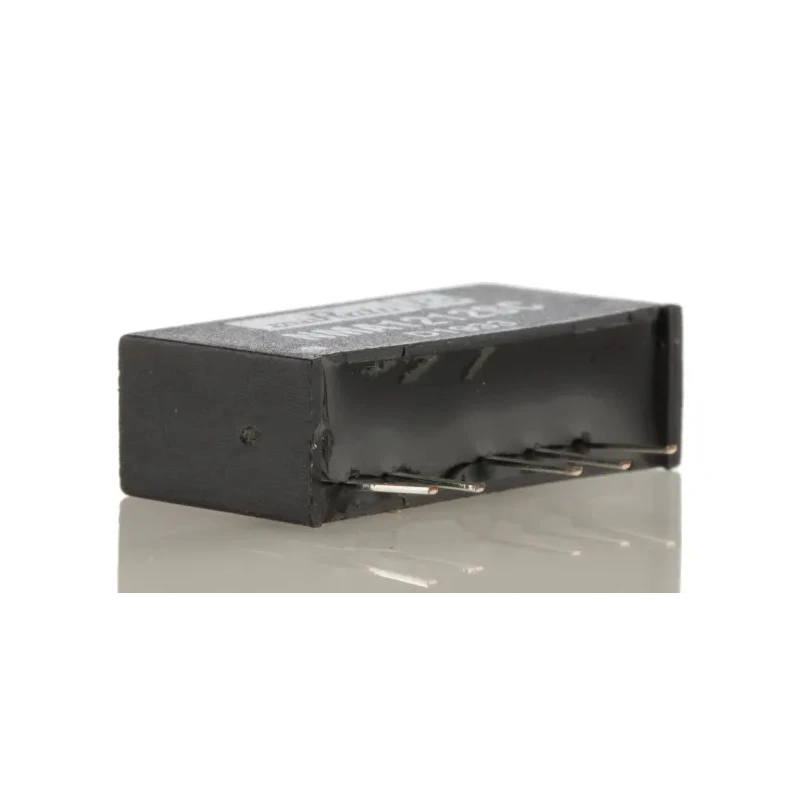

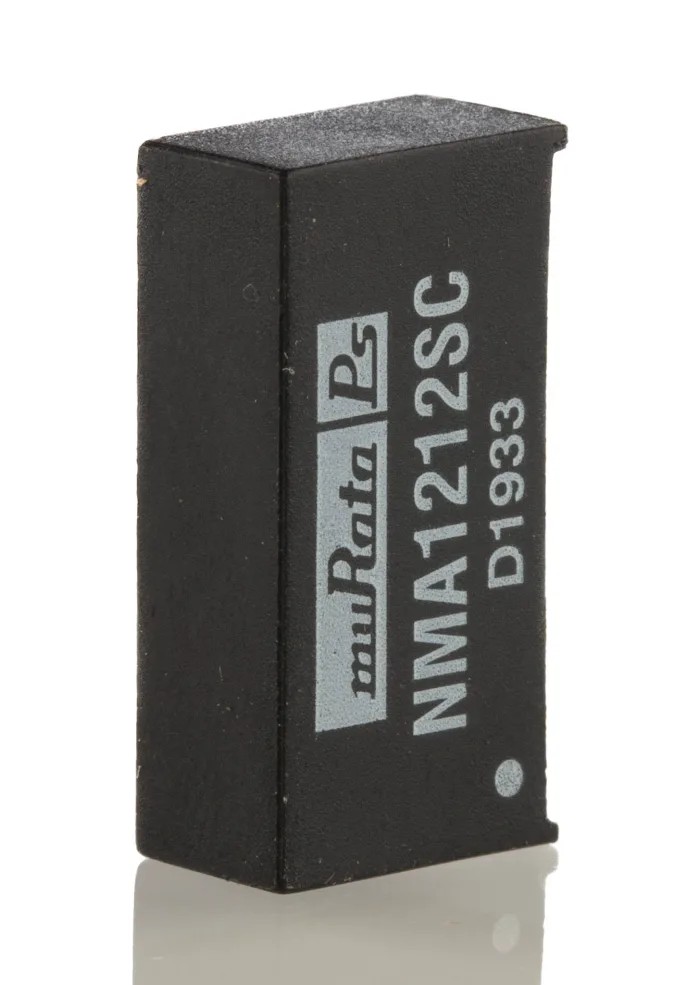

Murata Power Solutions SIP7 1W Dual Output Unregulated Isolated DC-DC Converter Through Hole NMA1212SC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMA DC/DC Converter, 12V dc |
| Brand | Murata Power Solutions |
| Efficiency | 75% |
| Length | 19.5mm |
| Model | NMA1212SC |
| Depth | 10mm |
| Gross Weight | 2.4g |
| Width | 19.5mm |
| Mount Type | Through Hole |
| Series | NMA |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 15mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 12, -12V dc |
| Output Current 1 | 42mA |
| Isolation Voltage | 1kV dc |
Key Features
- This converter features an input voltage range of 10.8 V to 13.2 V dc.
- It provides 1 kV dc isolation voltage ensuring electrical safety and noise reduction.
- The package type is DIP in a plastic SIP7 form factor with internal SMD construction.
- The efficiency of the converter is 75% with ripple and noise at 15 mV peak-to-peak.
- Operating temperature ranges from -40°C up to 85°C for reliable industrial use.
- It complies with RoHS standards and features UL 94V-0 rated package material.

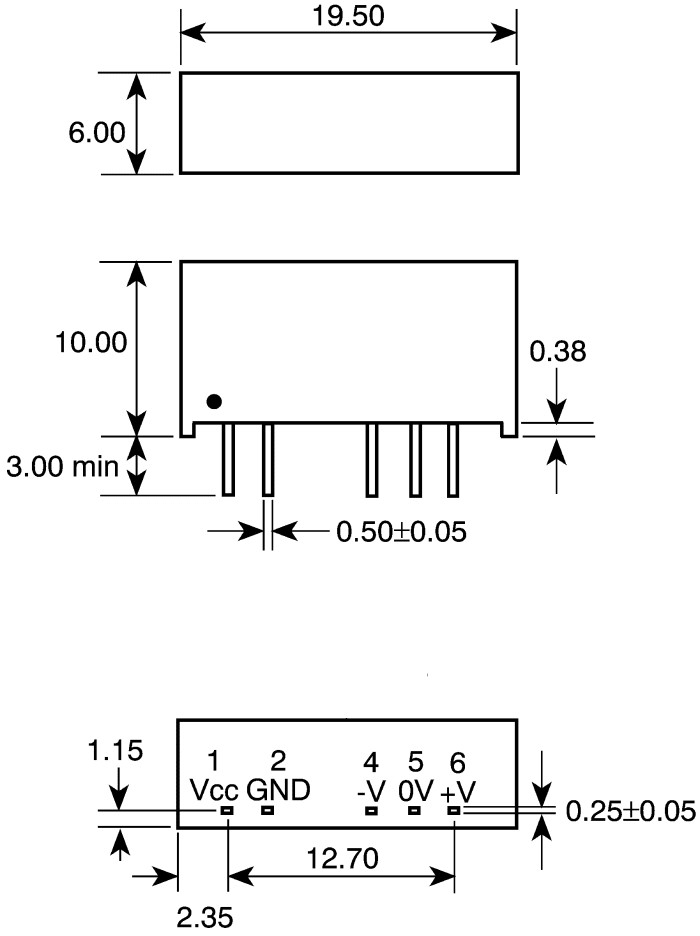

- Compact dimensions include 19.5 mm length, 19.5 mm width, and 10 mm depth.
- The converter requires no external components and has no derating in performance.
Product Description
Murata Power Solutions NMA1212SC is a SIP7 plastic package dual output DC-DC converter designed for through-hole PCB mounting.
This isolated converter provides unregulated output voltages of 12 V dc and -12 V dc with a maximum output current of 42 mA, powered from an input voltage range of 10.8 V to 13.2 V dc.
With 1 watt maximum output power and 1 kV dc input/output isolation, it is suitable for a variety of industrial applications including instrumentation, telecommunications, and control systems where electrical isolation and noise immunity are critical.
The converter achieves a typical efficiency of 75% and maintains ripple and noise levels as low as 15 mV peak-to-peak, ensuring stable power delivery for sensitive electronics.
Its robust design includes internal surface mount device construction housed in a UL 94V-0 rated SIP7 plastic DIP package, providing flame retardant protection and conformity with RoHS standards.
The product operates reliably over a wide temperature range from -40°C to 85°C, making it suitable for harsh environments or industrial automation systems. Input voltage range: 10.8 V to 13.2 V dc. Dual output voltages: 12 V dc and -12 V dc output at 42 mA current.
Isolation voltage: 1 kV dc for safety and interference reduction. Package: SIP7 through hole with dimensions 19.5 mm x 19.5 mm x 10 mm. Efficiency: 75% typical with a ripple and noise of 15 mV peak to peak. Operating temperature: from -40°C to 85°C.
RoHS compliant and UL 94 V-0 flame retardant packaging.
This DC-DC converter is widely used in industrial, electronic instrumentation, testing equipment, telecommunications power supplies, and embedded systems requiring compact size, high reliability, and electrical isolation.
Explore more DC-DC converters and power solutions to find the ideal product for your electronics and industrial design needs at EnvMart.
Explore more products in our DC/DC Converters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 10.8 V to 13.2 V dc.
This converter provides dual output voltages of 12 V dc and -12 V dc.
The maximum output power of this DC-DC converter is 1 watt.
The efficiency of this model is typically 75%.
It features an isolation voltage of 1 kV dc, ensuring electrical safety and noise reduction.
The dimensions of the SIP7 package are 19.5 mm in length, 19.5 mm in width, and 10 mm in depth.
The operating temperature range for this model is from -40°C to 85°C.
The ripple and noise level is specified at 15 mV peak-to-peak.
This model has two outputs.
It supports through-hole mounting.
Yes, it complies with RoHS standards and features UL 94V-0 rated packaging material.
The gross weight of this converter is 2.4 grams.
