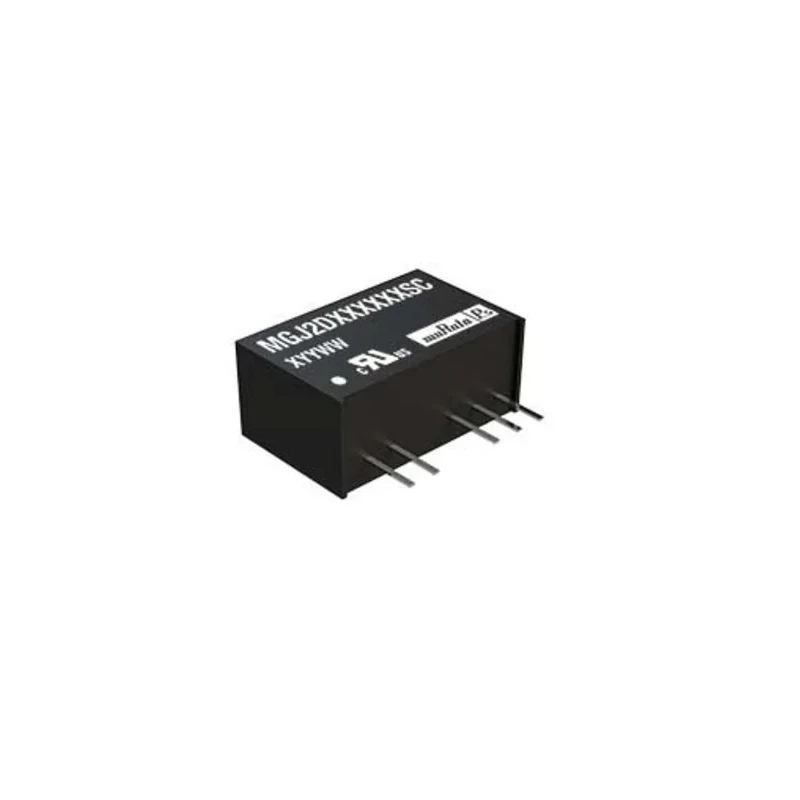

Murata Power Solutions 2W Dual Output Isolated DC/DC Converter Through Hole 4.5V dc 5.5V dc Input 105°C Max MGJ2

Free Delivery in India | Lowest Global Shipping Charges

Murata Power Solutions 2W Dual Output Isolated DC/DC Converter Through Hole 4.5V dc 5.5V dc Input 105°C Max MGJ2

Name: Murata Power Solutions 2W Dual Output Isolated DC/DC Converter Through Hole 4.5V dc 5.5V dc Input 105°C Max MGJ2
Brand: Murata Power Solutions
SKU: 376559
Price: 16.32 USD
Availability: InStock



Category DC/DC Converters Brand Murata Power Solutions Condition New

Specifications

Country of Origin	China
Brand	Murata Power Solutions
Efficiency	76%
Length	19.65mm
Model	MGJ2
Depth	12.65mm
Width	19.5mm
Mount Type	Through Hole
Series	MGJ2
Package Type	DIP
Minimum Operating Temperature	105°C
Number of outputs	2
Maximum Output Power	2W
Maximum Input Voltage	5.5V dc
Standards/Approvals	RoHS
Minimum Input Voltage	4.5V
Output Voltage 1	4.5, 5.5V dc
Isolation Voltage	5.2kV dc

Key Features

Provides dual asymmetric output voltages of 4.5V dc and 5.5V dc for optimal gate drive circuits.
Supports input voltage range from 4.5V to 5.5V dc with 2W maximum output power.
Features through-hole DIP package type for easy PCB mounting and integration.
Offers high isolation voltage of 5.2kV dc suitable for motor drives and inverters.
Operates efficiently with 76% efficiency at maximum load conditions.
Compact dimensions of 19.65mm length, 19.5mm width, and 12.65mm depth reduce PCB footprint.
Industrial temperature rating up to 105°C ensures reliability in harsh environments.
Compliance with RoHS standards for environmental safety.

Product Description

Murata Power Solutions MGJ2D051505SC is a 2W dual output isolated DC/DC converter optimized for industrial and commercial electronics applications requiring robust power conversion. It provides bipolar output voltages of 4.5V dc and 5.5V dc, making it ideal for gate drive circuits in bridge circuits such as IGBTs and MOSFETs.

This converter supports a wide input voltage range between 4.5V and 5.5V dc and comes in a through-hole DIP package, ensuring ease of mounting on printed circuit boards. The device features high isolation up to 5.2kV dc and ultra-low coupling capacitance, critical for applications demanding high dv/dt immunity and partial discharge performance.

The compact size (19.65mm length, 19.5mm width, and 12.65mm depth) with a footprint of 1.96cm² enables space-saving designs. With a maximum operating temperature of 105°C, this industrial-grade converter ensures long-term reliability and efficient operation at an efficiency of 76%.

This component meets RoHS regulations and is suitable for industrial, laboratory, manufacturing, HVAC, and power supply applications where isolated dual output DC/DC conversion is required. Applications include motor drives, power inverters, and bridge circuits where low EMI and high system efficiency are critical.

Provides dual asymmetric output voltages of 4.5V dc and 5.5V dc for optimal gate drive circuits. Supports input voltage range from 4.5V to 5.5V dc with 2W maximum output power. Features through-hole DIP package type for easy PCB mounting and integration.

Offers high isolation voltage of 5.2kV dc suitable for motor drives and inverters. Operates efficiently with 76% efficiency at maximum load conditions. Compact and space-saving dimensions reduce PCB footprint. Industrial temperature rating up to 105°C ensures robustness.

Complies with RoHS directives for environmental safety. Designed for high dv/dt immunity and minimum EMI in power electronics. Explore more DC/DC Converters and power supply solutions on EnvMart for reliable industrial-grade electronics components.
