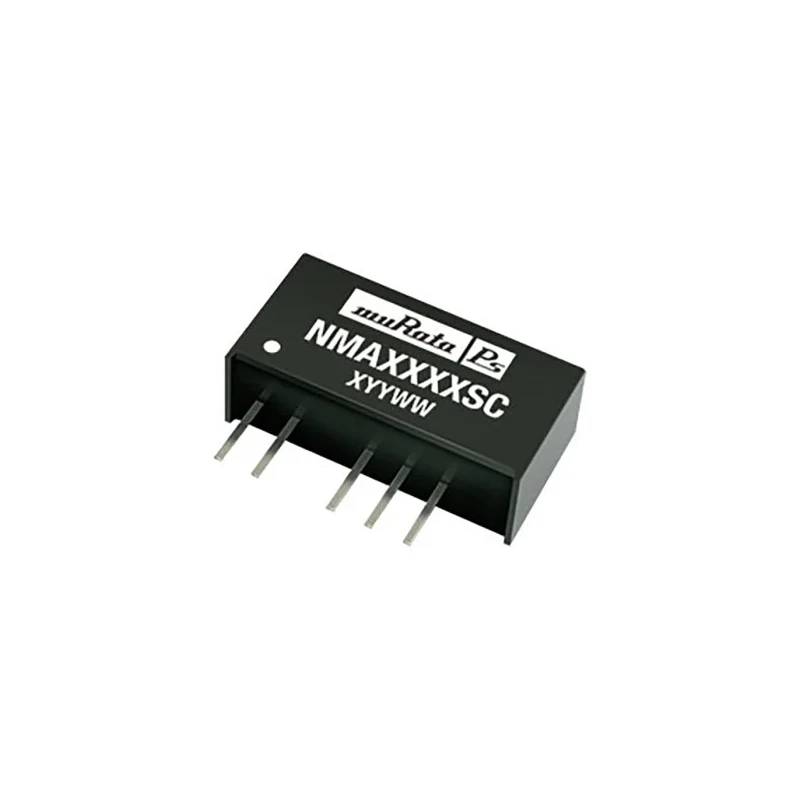

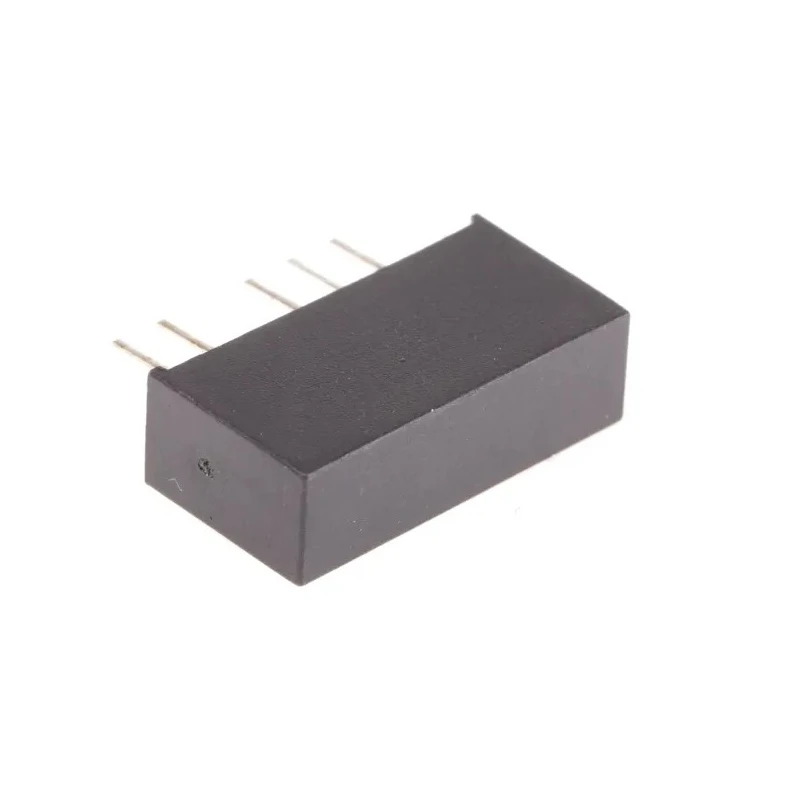

Murata Power Solutions NMA 1W SIP Dual Output Unregulated Isolated DC-DC Converter Through Hole Mount NMA0505SC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Efficiency | 69% |

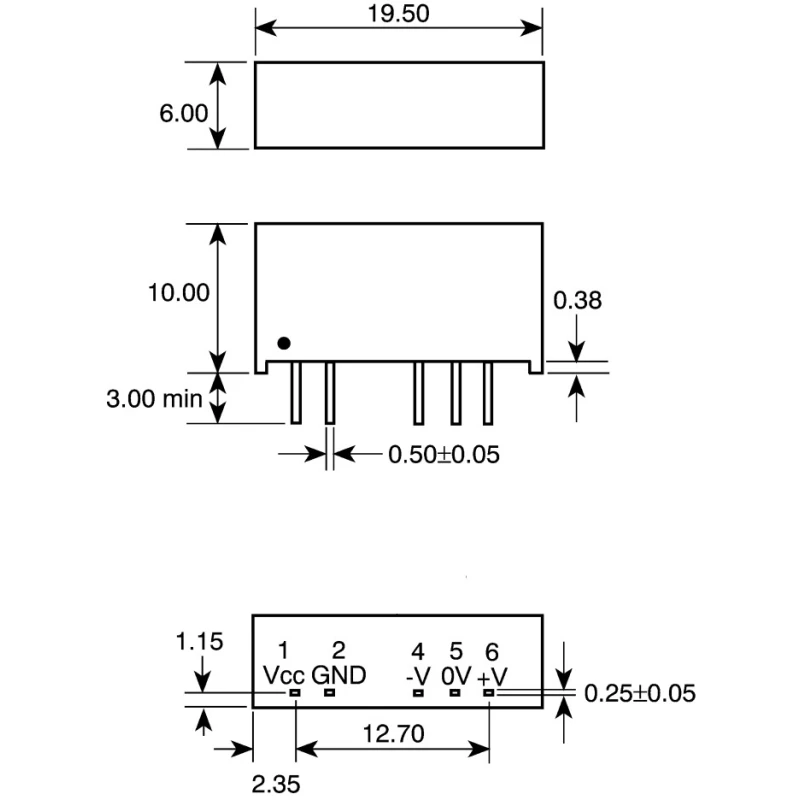

| Length | 19.5mm |
| Model | NMA0505SC |
| Depth | 10mm |
| Width | 19.5mm |
| Mount Type | Through Hole |
| Series | NMA |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 4.5, 5.5V dc |
| Isolation Voltage | 1kV dc |
| NMA0505S unregulated DC-DC,+/-5V 1WBrand | Murata Power Solutions |
Key Features
- Operates with input voltage range of 4.5V to 5.5V DC.
- Provides two isolated outputs at 4.5V and 5.5V DC respectively.
- Utilizes a DIP package type with SIP7 plastic and UL 94V-0 material.
- Offers high efficiency of approximately 69% without need for external components.
- Handles up to 1kV DC isolation voltage ensuring reliable signal and power separation.
- Compact dimensions of 19.5mm length, 19.5mm width, and 10mm depth.
- Designed to operate safely up to 85 °C maximum temperature.
- Internal SMD construction provides reliability and durability in industrial applications.
Product Description
Murata Power Solutions NMA0505SC is a high-efficiency 1W SIP dual output unregulated isolated DC-DC converter designed for industrial and electronic applications requiring reliable voltage conversion and isolation.
This model operates over an input voltage range of 4.5V to 5.5V DC, delivering two isolated outputs at 4.5V and 5.5V DC respectively. The converter features a through-hole DIP7 SIP package constructed with UL 94V-0 rated plastic, ensuring flame retardant properties.
It offers 1kV DC isolation voltage, enabling safe separation between input and output circuits, critical in sensitive equipment designs. With an efficiency rating of approximately 69%, this converter achieves efficient power transfer with minimal loss, eliminating the need for additional external components and simplifying system design.
Compact in size, with dimensions of 19.5mm length, 19.5mm width, and 10mm depth, and engineered with internal SMD construction, this product guarantees reliability and durability. The maximum operating temperature is rated at 85 °C, suitable for demanding environments.
Operation over 4.5 to 5.5V input voltage. Dual isolated outputs at 4.5V and 5.5V. High isolation voltage of 1kV DC for safety. Efficient power conversion with 69% efficiency. Flame retardant DIP7 SIP package (UL 94V-0 rated).
Compact form factor and robust internal build. RoHS compliant ensuring environmental standards. Designed for industrial and power supply applications.
This converter suits applications such as industrial automation, instrumentation, power supply modules, telecommunications equipment, and other electronic circuitry demanding clean isolated dual DC outputs.
Explore more options and variants in the DC/DC Converter category on EnvMart for diversified power and voltage converter solutions.
Explore more products in our DC/DC Converters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with an input voltage range of 4.5V to 5.5V DC.
This model provides two isolated outputs at 4.5V and 5.5V DC respectively.
The maximum output power is 1W.
It has an isolation voltage rating of 1kV DC, ensuring reliable signal and power separation.
The efficiency of this converter is approximately 69%.
The compact dimensions are 19.5mm in length, 19.5mm in width, and 10mm in depth.
It utilizes a through-hole DIP7 package type for mounting.
The maximum operating temperature is rated at 85 °C.
Yes, it is RoHS compliant, ensuring it meets environmental standards.
The package is constructed with UL 94V-0 rated plastic, providing flame retardant properties.
It is suitable for applications such as industrial automation, instrumentation, power supply modules, and telecommunications equipment.
It features internal SMD construction, which enhances reliability and durability in industrial applications.
