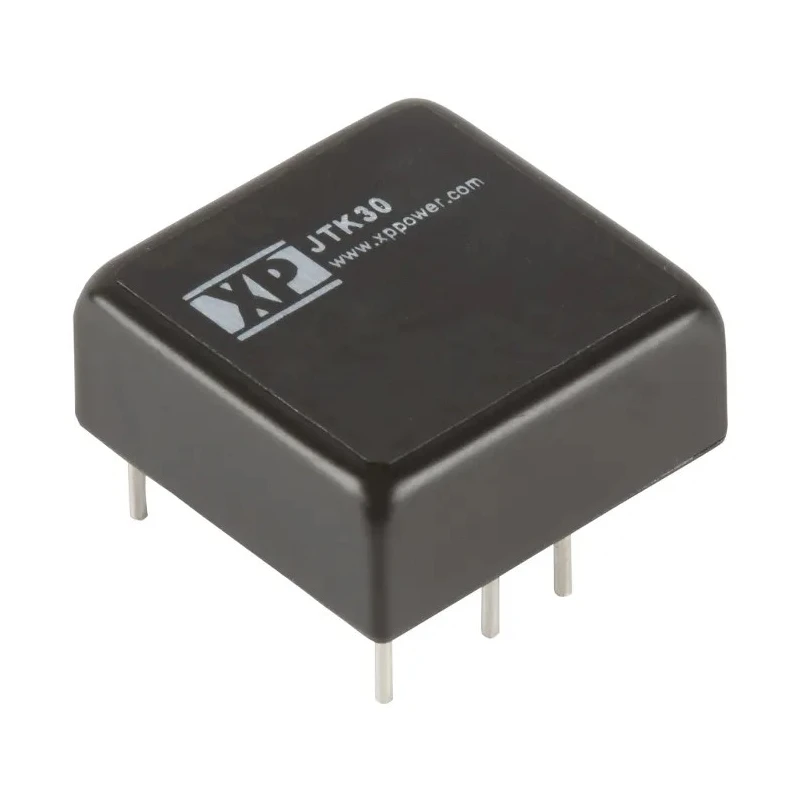

XP Power Isolated DC-DC Converter 15V DC Output 1A Dual Output 30W Through Hole JTK30

Free Delivery in India | Lowest Global Shipping Charges

XP Power Isolated DC-DC Converter 15V DC Output 1A Dual Output 30W Through Hole JTK30

Name: XP Power Isolated DC-DC Converter 15V DC Output 1A Dual Output 30W Through Hole JTK30
Brand: XP Power
SKU: 191428
Price: 87.23 USD
Availability: InStock



Category Power Supplies & Transformers Brand XP Power Condition New

Specifications

Country of Origin	Taiwan
Voltage	Converters / DC-DC Converters XP Power JTK30 DC/DC Converter, 15V dc/ 1 A, 36V d
Brand	XP Power
Efficiency	91%
Length	25.4mm
Model	JTK30
Depth	10.4mm
Width	25.4mm
Mount Type	Through Hole
Series	JTK30
Maximum Operating Temperature	100°C
Package Type	DIP
Minimum Operating Temperature	-40°C
MTBF	370000h
Number of outputs	2
Maximum Output Power	30W
Maximum Input Voltage	36V dc
Minimum Input Voltage	9V
Number of Pins	6
Output Voltage 1	15V dc
Output Current 1	1A
Output Voltage Adjustment Range	±13.5 V dc, ±16.5 V dc
Isolation Voltage	1.6kV dc
Output Current 2	-1A
Input Ratio	4:1
Output Voltage 2	-15V dc
Input Ratio 4	1

Key Features

Provides dual isolated outputs with ±15V DC voltage for versatile applications.
Operates with a wide input voltage range from 9V to 36V DC.
Compact DIP package measuring 25.4mm x 25.4mm x 10.4mm enables easy PCB integration.
High efficiency of up to 91% minimizes energy loss and heat generation.
Suitable for temperature ranges from -40°C to +100°C for industrial environments.
Offers 1600 VDC isolation voltage ensuring safety and noise immunity.
Includes remote on/off control functionality for system flexibility.
Designed with 6 pins and through hole mounting for robust mechanical stability.

Product Description

XP Power JTK30 DC-DC Converter model JTK3024D15 is a highly reliable, isolated power supply module delivering dual 15V DC outputs at 1 ampere each, with a maximum power rating of 30 watts. Designed for electronic components and industrial applications, this converter supports a wide input voltage range from 9V to 36V DC, making it suitable for varied power sources.

The unit features a small DIP through hole package measuring 25.4mm length and width, with a depth of 10.4mm. It ensures system safety with 1600 VDC isolation voltage and high efficiency reaching 91%, reducing power loss and thermal stress. The converter supports remote on/off control, enhancing automation flexibility.

Operating reliably in harsh environments, it withstands temperature variations between -40°C and +100°C. With a MTBF (mean time between failures) of 370000 hours, the product is engineered for long service life in industrial, laboratory, manufacturing, and power management applications.

This JTK30 series DC-DC converter is suitable for use in power supply circuits, voltage regulation, signal isolation, and other electronic systems requiring stable isolated power conversion with compact form factors.

Dual outputs with ±15V DC voltage range provide flexible power supply configurations. Wide input range of 9V to 36V DC accommodates multiple power environments. Compact 1 inch by 1 inch footprint for space-saving PCB design.

High isolation voltage of 1600 VDC prevents electrical interference. Remote on/off capability supports efficient system control. Thermally stable operation from -40°C to +100°C suits industrial usage. Through hole mounting ensures secure physical connection.

MTBF of 370,000 hours guarantees product durability and reliability. Set includes one XP Power JTK30 DC/DC Converter unit. This product is proudly made in Taiwan, Province Of China, maintaining high quality standards. Explore more power supplies and transformers in the Electronics & Electricals category at EnvMart, Trusted Industrial Solutions.
