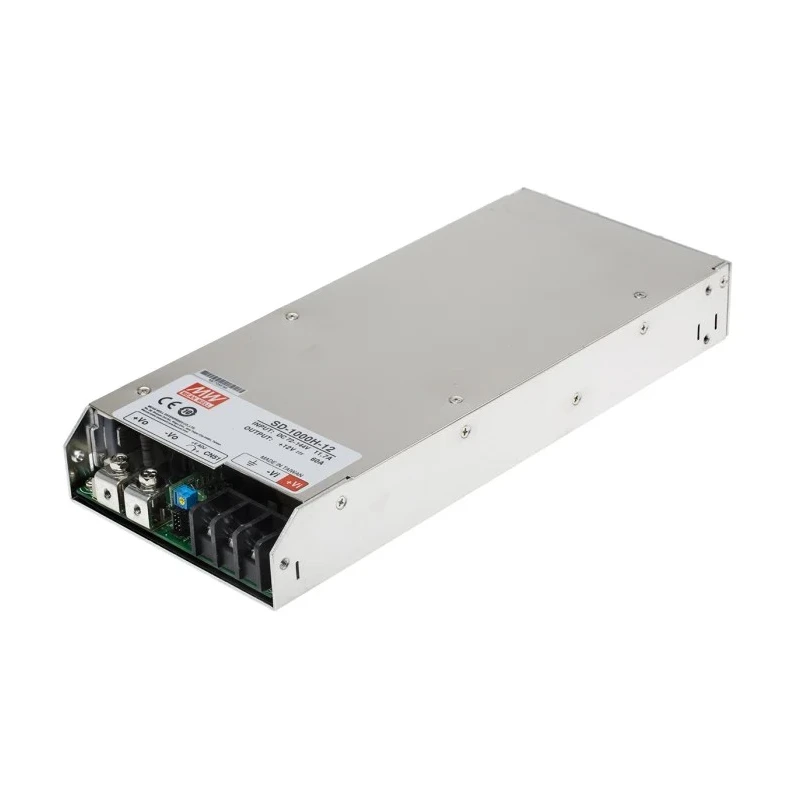

MEAN WELL 12V DC 60A 72V-96V DC Input 720W Surface Mount DC/DC Converter SD-1000H-12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL SD-100 DC/DC Converter, 12V dc/ 60 A, 96 |
| Brand | MEAN WELL |
| Efficiency | 85% |
| Length | 295mm |
| Model | SD-1000H-12 |
| Depth | 41mm |
| Gross Weight | 1.94kg |
| Width | 41mm |
| Mount Type | Surface |
| Series | SD-100 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| MTBF | 898200h |
| Number of outputs | 1 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 720W |
| Maximum Input Voltage | 96V dc |
| Standards/Approvals | EN 61000-4-2, EN 55022Class B, ENV 50204 |
| Minimum Input Voltage | 72V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 60A |
| Output Voltage Adjustment Range | 15 V |
| Isolation Voltage | 2kV ac |
| Ultra-wide 4 | 1 input voltage range |
Key Features
- High reliability with 1U low profile design at 41mm height.
- Built-in dual fans with speed control ensure efficient cooling.
- Adjustable output voltage with remote ON/OFF and sense control.
- Short circuit, over-load, over-voltage and over-temperature protection for safety.
- Conforms to EN 61000-4-2, EN 55022 Class B EMC standards.
- LED power indicator for easy status monitoring.
- Input/output isolation voltage rated at 2kV AC enhancing safety.
- Designed for operation between -20°C and 60°C ambient temperatures.
Product Description
MEAN WELL SD-1000H-12 DC/DC Converter is a high-performance, single output enclosed regulated isolated converter delivering 12V DC output at 60A with a maximum power of 720W. It supports a broad DC input voltage range from 72V to 96V, making it suitable for various industrial, commercial, and manufacturing power system applications.

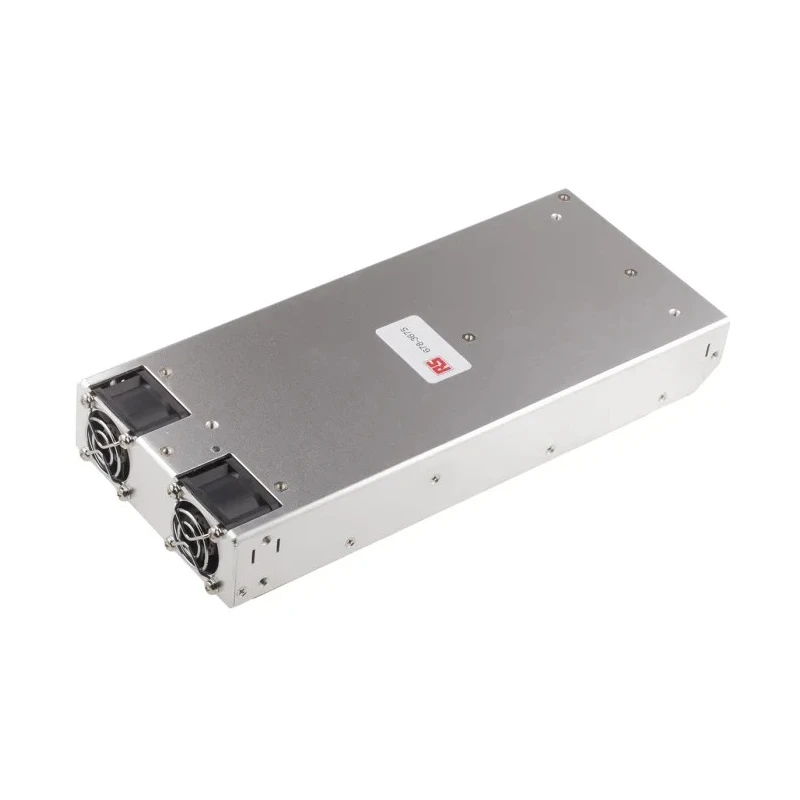

This surface-mount module features a compact and low profile design of just 41mm thickness, enabling integration into space-constrained environments. The converter incorporates forced air cooling through built-in dual fans with speed control, ensuring optimal thermal management for stable operation.
The converter offers precise voltage regulation with adjustable output voltage and includes remote ON/OFF control along with remote sensing capabilities to maintain load voltage accuracy. Safety features include short circuit, overload, over-voltage, and over-temperature protection to ensure reliability and operator safety.
Compliance with EMC standards such as EN 61000-4-2 and EN 55022 Class B ensures minimal electromagnetic interference, ideal for sensitive electronic environments. The device provides 2kV AC input/output isolation, enhancing safety in electrical systems.
This product is rated for operation within a temperature range of -20°C to 60°C and boasts a mean time between failure (MTBF) of 898,200 hours, demonstrating high reliability for continuous industrial use.
Its compact dimensions of 295mm length, 41mm width, and 41mm depth, along with a weight of 1.94 kg, provide ease of installation in a variety of applications including industrial power management, laboratory instrumentation, DC power system integration, and telecommunications equipment.
High reliability 1U low profile - 41mm. Ultra-wide 4:1 input voltage range. Adjustable output voltage with remote ON/OFF control. Built-in forced air cooling with dual fans. Comprehensive protection mechanisms. Compliance with relevant EMC standards.
2kV input/output isolation voltage. LED power-on indicator. Operating temperature range -20°C to 60°C. Compact dimensions and lightweight construction. Explore more MEAN WELL DC/DC converters and related power supplies on EnvMart for industrial and commercial power management solutions.
