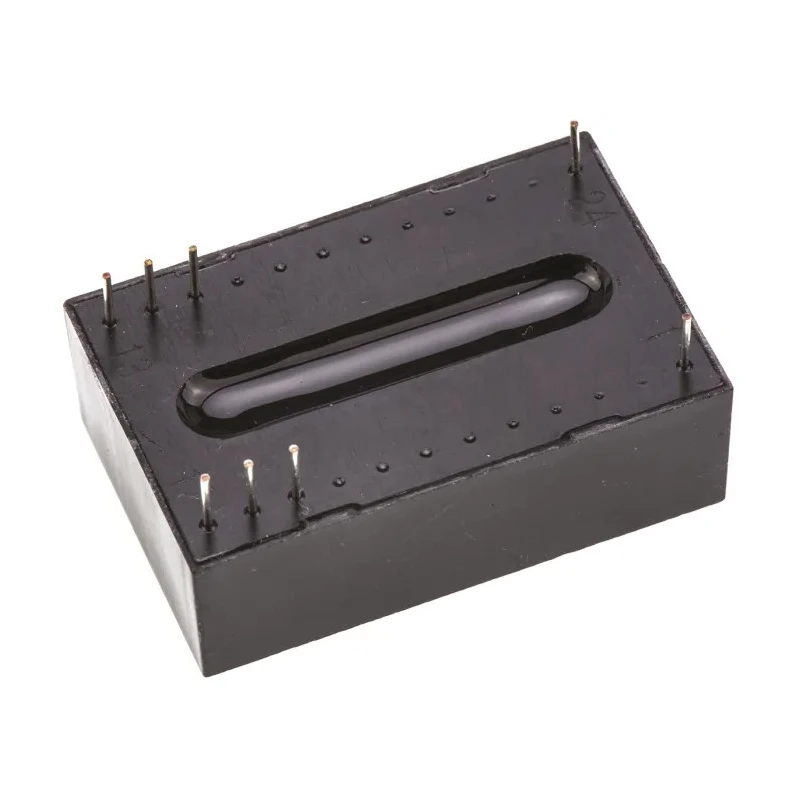

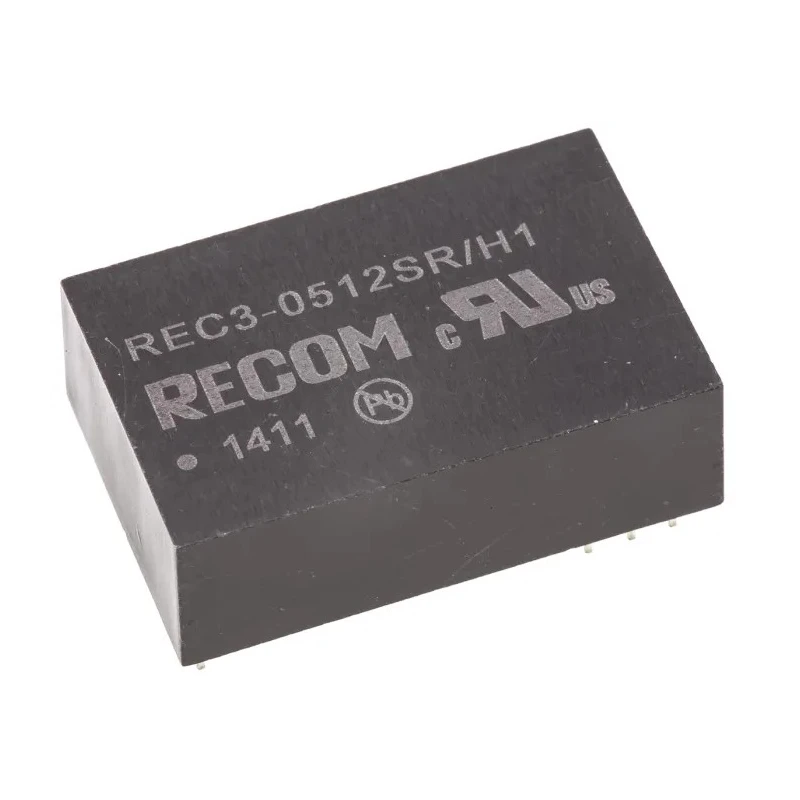

Recom DC/DC Converter Regulated Isolated 12V DC Output 250mA 3W PDIP24 Through Hole REC3

Recom REC3-0512SR/H1 is a high-quality DC/DC converter delivering a regulated isolated 12V DC output at a current of 250 mA with a maximum output power of 3 W. It is housed in a DIP24 through hole package, making it suitable for printed circuit board mounting in industrial and electronic applications.

This converter supports a minimum input voltage of 4.25V DC and a maximum of 5V DC, optimized for efficient power supply conversion. The unit provides excellent isolation at 500V AC to protect sensitive electronics and reduce noise interference.

Engineered to operate reliably in harsh environments, it has an operating temperature range from -40°C up to 80°C without derating, ensuring dependable performance in industrial, commercial, and laboratory settings. Its efficiency rating of 75% helps reduce energy loss and heat generation.

The device features low output ripple and noise of 100 mV peak-to-peak, ensuring stable and clean power delivery for sensitive loads. Continuous short circuit protection enhances device longevity and system safety.

With a mean time between failure (MTBF) of 145,000 hours as per MIL-HDBK 217F standard, this DC/DC converter offers robust reliability and long service life. It complies with international standards including CSA, IEC, and UL and is UL recognized.

The compact size with dimensions: length 32 mm, width 10.2 mm, and depth 10.2 mm, and a weight of approximately 12 grams makes it easy to integrate into tight spaces and standard PCB footprints.

Applications include industrial control systems, telecommunications, medical instruments, instrumentation and measurement, and other electronic equipment requiring isolated DC/DC power conversion.

Manufactured in Taiwan, Province Of China, the Recom REC3-0512SR/H1 is a trusted choice for engineers and technicians seeking a dependable small power DC/DC converter. This converter supports input voltage range from 4.25V dc minimum to 5V dc maximum.

Features 500V AC isolation ensuring safety and noise reduction. Compact package dimensions of 32mm length, 10.2mm width, and 10.2mm depth. Low ripple and noise output with 100mV peak-to-peak for clean power delivery. Operates reliably from -40°C to 80°C ambient temperature.

Efficiency rated at 75% for effective power conversion. Includes continuous short circuit protection for enhanced reliability. Mean time between failure (MTBF) is 145,000 hours according to MIL-HDBK 217F. Certified to standards including CSA, IEC, and UL with UL recognition.

Manufactured in Taiwan, Province Of China. Explore more DC/DC Converters and power supply solutions on EnvMart for industrial, commercial, and laboratory power applications.
