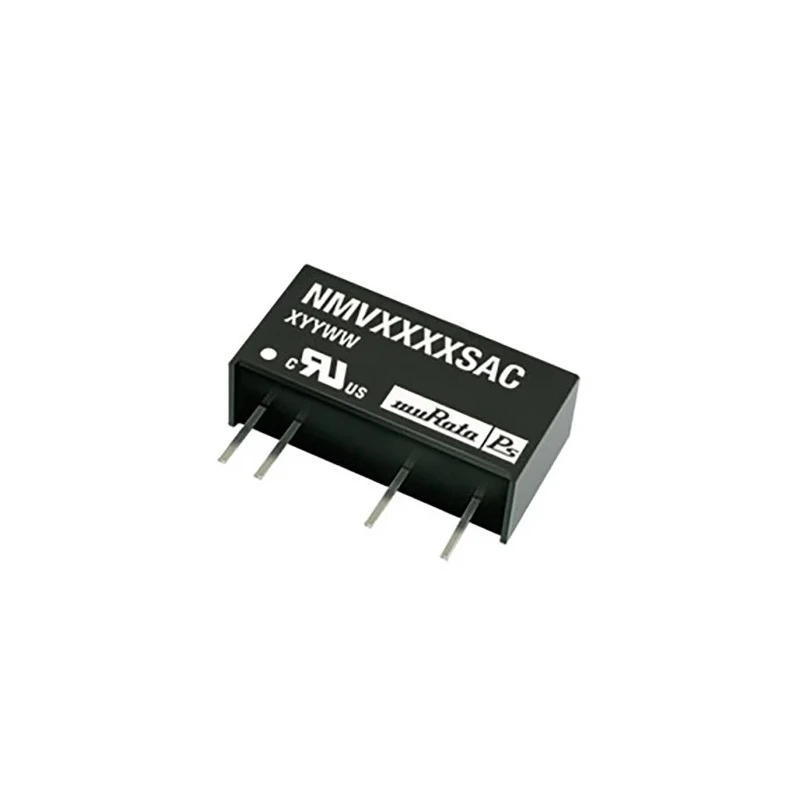

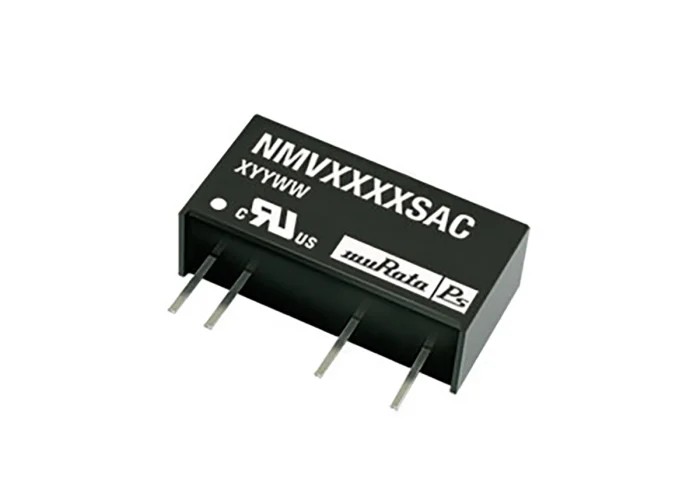

Murata Power Solutions NMV SIP Single Output 1W DC/DC Converter 15V DC Output 67mA Input 10.8-13.2V Through Hole NMV1215SAC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMV DC/DC Converter, 15V dc |
| Brand | Murata Power Solutions |
| Efficiency | 77% |
| Length | 19.5mm |
| Model | NMV1215SAC |
| Depth | 10mm |
| Gross Weight | 2.1g |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | NMV |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1462000h |
| Number of outputs | 1 |
| Ripple and Noise | 17mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 67mA |
| Output Voltage Adjustment Range | 10.8/13.2 V |
| Isolation Voltage | 3kV dc |
| Output Voltage 2 | -15V dc |
| NMV1215SA unregulated DC-DC,15V 1WBrand | Murata Power Solutions |
Key Features
- Offers a maximum output current of 67mA for reliable power supply.
- Designed with 3kV DC isolation voltage for device and system protection.

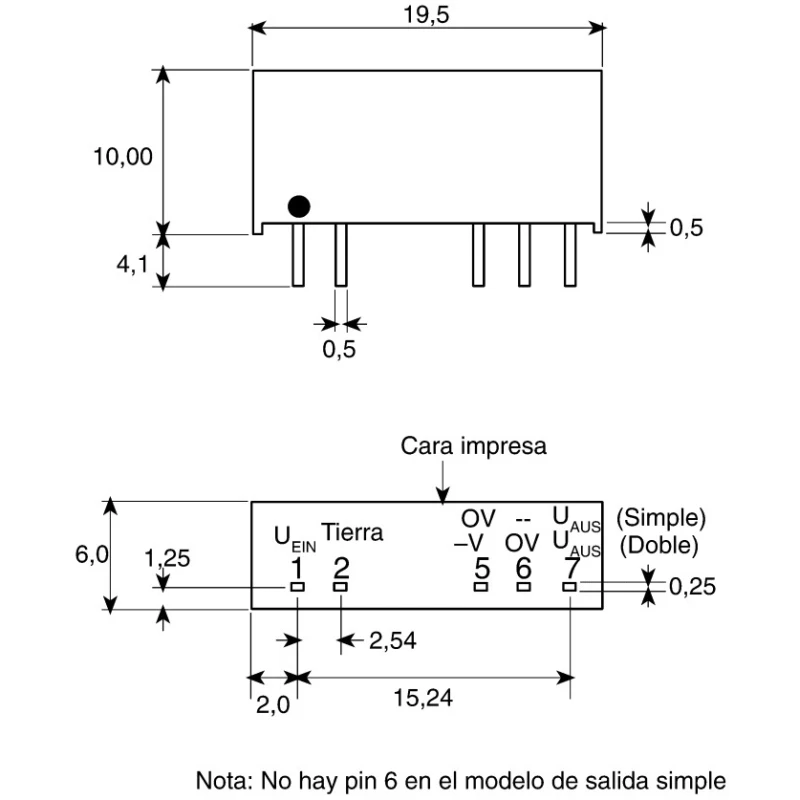

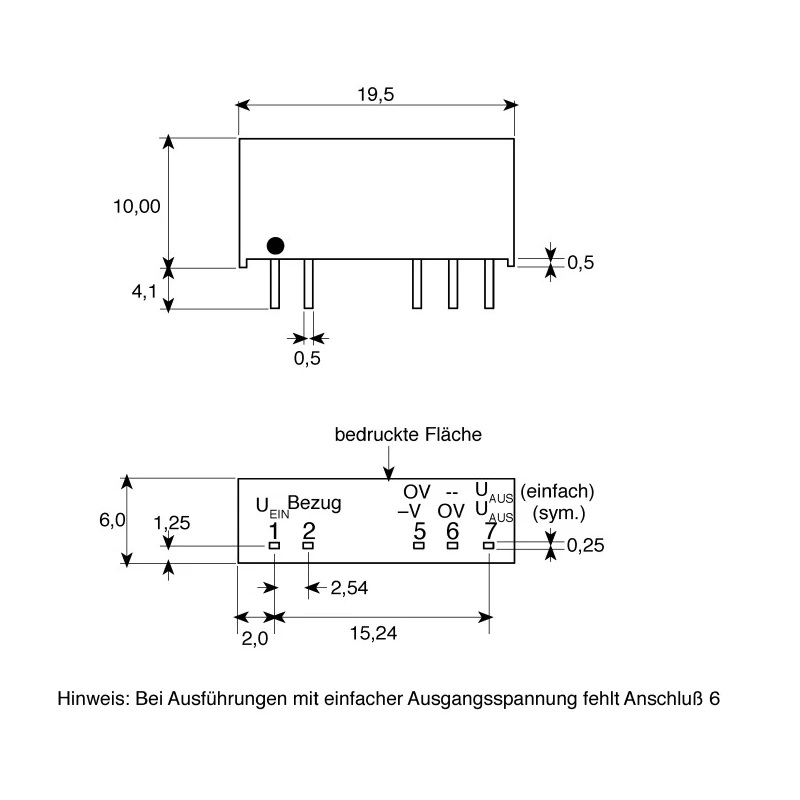

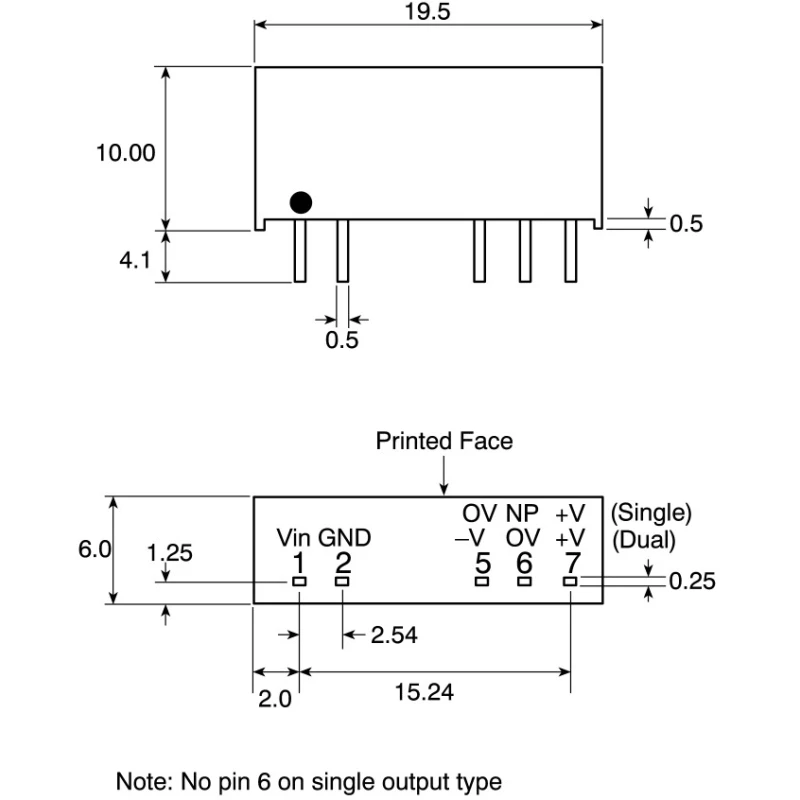

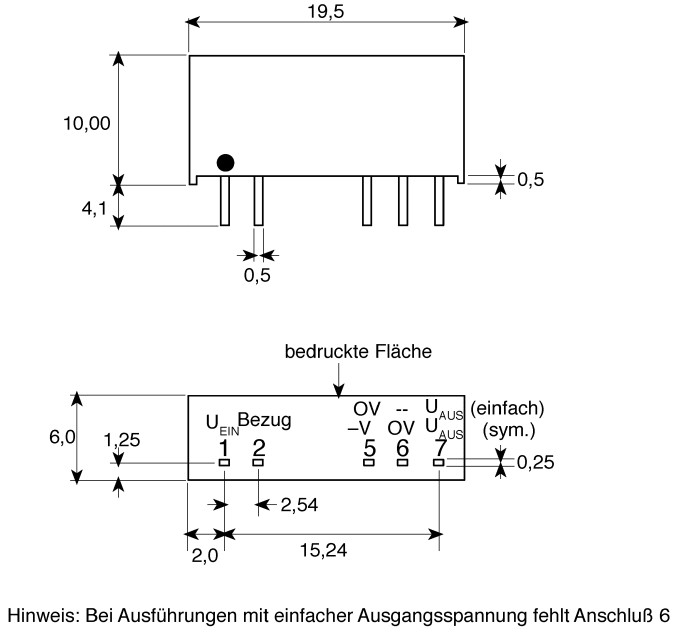

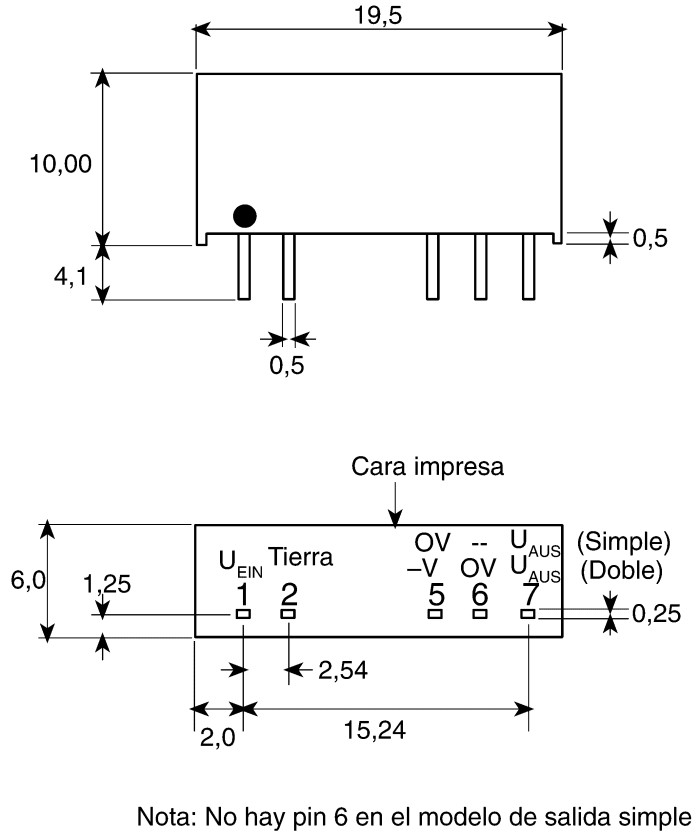

- Compact SIP7 plastic package with dimensions 19.5mm length x 10mm width x 10mm depth.
- Ensures high efficiency of 77% and stable operation up to 85°C maximum temperature.
- Unregulated, isolated output suitable for electronic component and power supply applications.
- Meets RoHS standards with UL 94V-0 flame retardant plastic material.
- High MTBF rating of 1,462,000 hours ensures long-term reliability.
- No external components required, simplifying PCB design and assembly.
Product Description
Murata Power Solutions NMV1215SAC is a compact 1W Single Input/Single Output DC/DC Converter featuring an unregulated isolated output. Designed for efficient power conversion, it operates at an input voltage range of 10.8 to 13.2V DC and provides a steady 15V DC output at up to 67mA current.
The converter is housed in a SIP7 through-hole plastic package measuring 19.5mm in length, 10mm width, and 10mm depth, making it suitable for space-constrained electronic modules. It features an input/output isolation voltage of 3kV DC, ensuring protection against electrical noise and surges, ideal for industrial, laboratory, and manufacturing applications.
This model offers 77% efficiency and can operate in a temperature range from -40°C to a maximum of 85°C, suitable for challenging environments. Its internal solid-state design with SMD construction and UL94V-0-rated plastic enhances durability and safety.
Additional benefits include no requirement of external components for operation and a high MTBF of 1.46 million hours under MIL-HDBK-217F (25°C) standard, providing exceptional reliability. The product is RoHS compliant, aligning with environmental standards for electronic assemblies.
Maximum output current: 67mA at 15V DC output voltage. Input voltage range: 10.8V to 13.2V DC. Isolation voltage: 3kV DC for enhanced safety. Compact SIP7 plastic package for through-hole mounting. High efficiency of 77% reduces power loss.
Operating temperature range from -40°C to 85°C. UL 94V-0 flammability rating on package material. MTBF: 1,462,000 hours ensuring longevity. RoHS compliant for environmental safety. Ideal for electronic components, power supplies, and industrial automation applications.
This reliable and efficient DC/DC converter is suitable for electronics engineers and manufacturers requiring stable voltage conversion in tight spaces. It supports various electronic designs in power supplies and embedded systems.
Explore more from Murata Power Solutions and similar DC/DC Converters in the Electronics & Electricals category on EnvMart for trusted quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NMV1215SAC provides a steady output voltage of 15V DC with a maximum output current of 67mA.
This model operates within an input voltage range of 10.8V to 13.2V DC.
It features an isolation voltage of 3kV DC, providing enhanced safety for the device and connected systems.
The NMV1215SAC has an efficiency rating of 77%, which helps reduce power loss during operation.
The SIP package measures 19.5mm in length, 10mm in width, and 10mm in depth.
It can operate in a temperature range from -40°C to a maximum of 85°C.
The NMV1215SAC has a single output.
The ripple and noise for this unit is specified at 17mV peak-to-peak.
It has a mean time between failures (MTBF) rating of 1,462,000 hours, indicating long-term reliability.
Yes, the NMV1215SAC is RoHS compliant, meeting environmental standards for electronic assemblies.
This unit is designed for through-hole mounting, making it suitable for various PCB designs.
No, it does not require any external components, simplifying the PCB design and assembly process.
