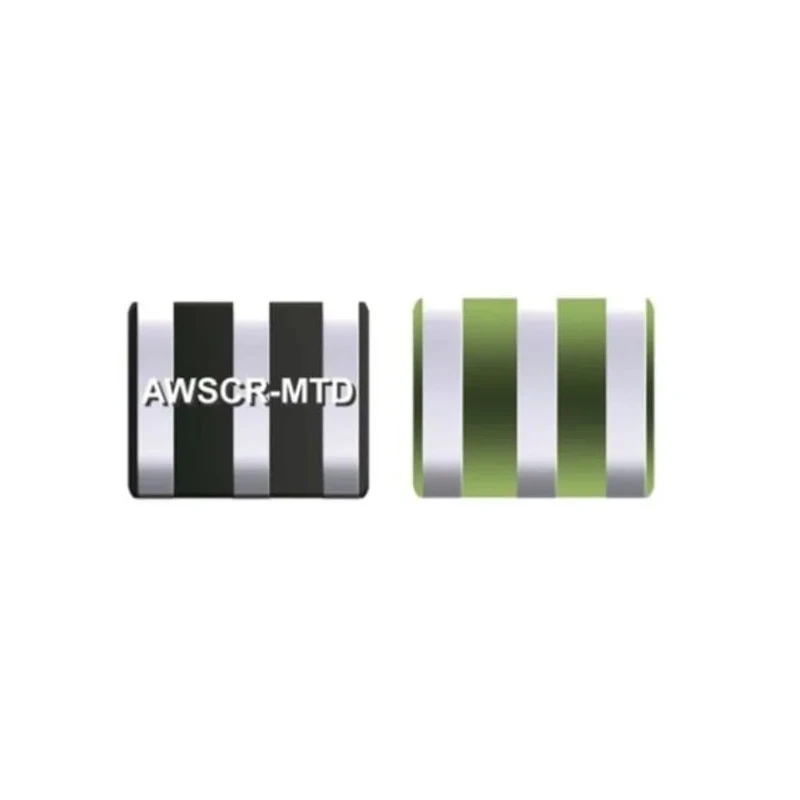

Abracon Ceramic Resonator 20 MHz 15 pF 3-Pin Surface Mount AWSCR-20.00MTD-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.2mm |
| Length | 4.7mm |
| Model | AWSCR-20.00MTD-T |
| Packaging | Tape & Reel |
| Width | 4.1mm |
| Mount Type | Surface |
| Series | AWSCR-MT |
| Maximum Operating Temperature | 125°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, ISO 9001, QS 9000 CERTIFIED |
| Pin Count | 3 |
| Load Capacitance | 15pF |
| Resonance Frequency | 20MHz |
Key Features
- Operates at a resonance frequency of 20 MHz with ±5% tolerance.
- Features a built-in load capacitance of 15 pF for improved stability.
- Robust surface mount package with dimensions of 4.7 mm length, 4.1 mm width, and 1.2 mm height.
- Designed for operation between -55°C and 125°C temperature range.
- Suitable for use in remote controls, microprocessor clocks, mobile phones, and consumer electronics.
- Complies with RoHS and ISO 9001 quality standards.
- Available in tape and reel packaging for automated assembly.
- Low resonant impedance ensures reliable oscillation in circuits.
Product Description
Abracon AWSCR-20.00MTD-T Ceramic Resonator is an industrial-grade surface mount component designed for precision frequency control in electronic applications. It operates at a resonance frequency of 20 MHz with a load capacitance of 15 pF, optimally engineered to provide stable timing signals.
The compact 3-pin package measures 4.7 mm in length, 4.1 mm in width, and 1.2 mm in height, suitable for high-density PCB layouts. It supports a wide operational temperature range from -55°C to 125°C, making it robust for various industrial and consumer electronics environments.
This resonator demonstrates low resonant impedance and includes built-in load capacitors, facilitating efficient oscillation and reducing the need for external components. It is IR reflow capable, supporting modern surface mount technology assembly lines.
Commonly applied in microprocessor clock circuits, remote control devices, DVD and CD-ROM drives, mobile phones, and other consumer electronic devices, it ensures reliable frequency stability and timing accuracy.
Operates at 20 MHz resonance frequency with ±5% frequency tolerance. Built-in 15 pF load capacitance reduces external component requirements. Compact surface mount design with dimensions 4.7x4.1x1.2 mm. Temperature tolerance from -55°C to 125°C ensures wide application suitability.
Certified to RoHS, ISO 9001, and QS 9000 standards ensuring quality compliance. Packaged on tape and reel for efficient automated PCB assembly. Low resonant impedance design for stable circuit performance. Compatible with IR reflow soldering for modern manufacturing processes.
3-pin configuration from the AWSCR-MT series.
With its combination of compact size, robust construction, and precise frequency characteristics, the Abracon AWSCR-20.00MTD-T Ceramic Resonator is ideal for use in electronic manufacturing sectors including industrial automation, telecommunications, consumer electronics, and computing.
Explore more high-quality Ceramic Resonators and related electronic components on EnvMart for your circuit design and production requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Abracon ceramic resonator operates at a resonance frequency of 20 MHz with a tolerance of ±5%.
This model features a built-in load capacitance of 15 pF, which helps improve stability and reduces the need for external components.
The dimensions of this ceramic resonator are 4.7 mm in length, 4.1 mm in width, and 1.2 mm in height.
It is designed to operate between -55°C and 125°C, making it suitable for various industrial and consumer applications.
The resonator is packaged on tape and reel, which is ideal for automated assembly processes.
It complies with RoHS, ISO 9001, and QS 9000 quality standards, ensuring quality and environmental compliance.
This model has a pin count of 3, suitable for surface mount applications.
It is commonly used in microprocessor clock circuits, remote control devices, and various consumer electronics such as mobile phones and DVD drives.
This resonator features low resonant impedance, which ensures reliable oscillation in electronic circuits.
Yes, it is compatible with IR reflow soldering, making it suitable for modern surface mount technology assembly lines.
This model is part of the AWSCR-MT series of ceramic resonators.
The country of origin for this resonator is India.
