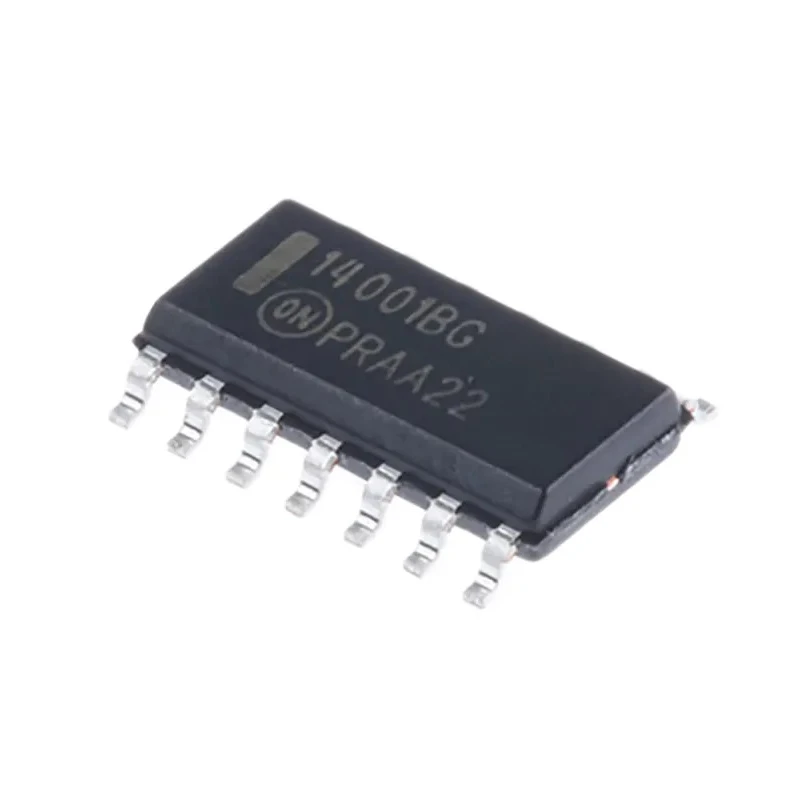

onsemi 4 2-Input NOR Logic Gate 14-Pin SOIC MC14001BDG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.5mm |
| Length | 8.75mm |
| Model | MC14001BDG |
| Mount Type | Surface |
| Output type | Buffer |
| Series | MC14001B |
| Input Type | CMOS |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 14 |
| Number of Elements | 4 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 18V |
| Logic Family | 4000 |
| Logic Function | NOR |
| Minimum Supply Voltage | 500mV |
| Maximum High Level Output Current | -4.2mA |
| Maximum Propagation Delay Time @ CL | 80ns |
| Maximum Low Level Output Current | 4.2mA |
| Number of Inputs per Gate | 2 |
| Wide operating voltage range | 3 to 18V |
| Quad 2 i/p NOR gate,MC14001BD SOIC14Brand | ON Semiconductor |
Key Features
- The product functions as a NOR logic gate with four 2-input gates in one integrated circuit.
- It features a 4000 series logic family and CMOS input type for efficient low power operation.
- The maximum propagation delay time at CL is 80ns, ensuring fast switching performance.
- The device operates within a wide voltage range of 3V to 18V, making it versatile for various applications.
- Operating temperature ranges from -55°C to 125°C, suitable for industrial and automotive environments.
- The package type is SOIC with 14 pins, designed for surface mount mounting.
- The output type is buffer with maximum high-level and low-level output currents of -4.2mA and 4.2mA respectively.
- This device meets automotive standard AEC-Q100, ensuring reliability in automotive applications.
Product Description
onsemi MC14001BDG 4 2-Input NOR Logic Gate 14-Pin SOIC is a quad 2-input NOR gate device from the 4000 series CMOS logic family. This surface-mount SOIC packaged device integrates four independent NOR gates, each with two inputs, designed for a wide operating voltage range from 3 to 18 volts and an operating temperature range from -55°C to 125°C.
This logic IC features a maximum propagation delay of 80 nanoseconds at standard load conditions, supporting fast signal processing. The device provides buffered outputs with a maximum high-level output current of -4.2mA and low-level output current of 4.2mA, ideal for driving digital circuits. Its 14-pin SOIC package measures 1.5mm in height and 8.75mm in length for compact integration into electronic systems.
The MC14001BDG logic gate complies with automotive standards AEC-Q100, ensuring robust performance in automotive and industrial environments. Designed for surface mounting, it facilitates efficient PCB assembly and improved production efficiency.
The device functions as a NOR logic gate with four 2-input elements in a CMOS design. Wide operating voltage from 3V to 18V enhances application flexibility. Industrial temperature range allows use in harsh environmental conditions.
Compact SOIC packaging facilitates PCB space optimization. Meets automotive quality standards, making it suitable for automotive electronics. Low propagation delay supports efficient digital signal processing. Buffered outputs provide reliable drive capabilities for digital loads.
Surface mount device supporting automated manufacturing processes. Typical applications include logic signal processing, digital control systems, and circuit design. This product is supplied new and packaged for ready insertion into electronic manufacturing equipment.
Ideal for use in industrial, automotive, and electronics manufacturing sectors, the onsemi MC14001BDG logic gate is a reliable component for modern digital circuit designs. Explore more semiconductor and Logic Gate products in the Electronics & Electricals category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 18V.
It operates within a temperature range of -55°C to 125°C, making it suitable for industrial and automotive environments.
Each gate in this model has two inputs, and there are four independent NOR gates integrated into the device.
The maximum propagation delay time at standard load conditions is 80 nanoseconds.
This model comes in a 14-pin SOIC package designed for surface mounting.
It provides buffered outputs with a maximum high-level output current of -4.2mA and a low-level output current of 4.2mA.
The input type for this logic gate is CMOS, which allows for efficient low power operation.
The package height is 1.5mm and the length is 8.75mm.
This device meets the automotive standard AEC-Q100, ensuring reliability in automotive applications.
It functions as a NOR logic gate, integrating four 2-input NOR gates in one integrated circuit.
The minimum supply voltage for this model is 500mV.
This model belongs to the 4000 series logic family.
