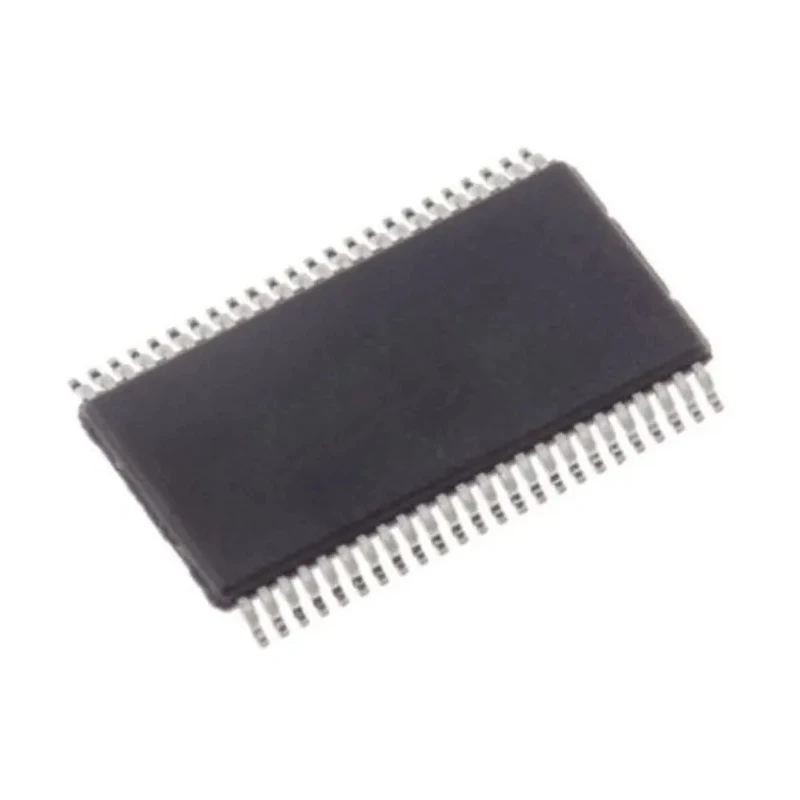

Renesas Electronics Bus Transceiver 16-Bit Non-Inverting 3 State 48-Pin TSSOP 74ALVC164245PAG

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics Bus Transceiver 16-Bit Non-Inverting 3 State 48-Pin TSSOP 74ALVC164245PAG

Name: Renesas Electronics Bus Transceiver 16-Bit Non-Inverting 3 State 48-Pin TSSOP 74ALVC164245PAG
Brand: Renesas Electronics
SKU: 338319
Price: 1.22 USD
Availability: InStock



Category Bus Transceivers Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	1mm
Length	12.5mm
Model	74ALVC164245PAG
Mount Type	Surface
Output type	3 State
Series	74ALVC
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	16
Pin Count	48
Maximum Supply Voltage	6V
Logic Family	74ALVC
Logic Function	Bus Transceiver
Minimum Supply Voltage	-0.5V
Maximum High Level Output Current	50mA
Maximum Propagation Delay Time @ CL	5.8ns
Maximum Low Level Output Current	-50mA
Output Level	3 State
Input Level	CMOS

Key Features

Supports dual supply voltages for level shifting between 3.3V and 5V systems.
Operates over a temperature range from -40°C to 85°C.
Maximum propagation delay time of 5.8 nanoseconds at CL.
Features CMOS input level with rail-to-rail output swing for noise margin enhancement.
Designed for asynchronous communication between data buses with 16 channels.
Offers output high level current up to 50mA and low level current down to -50mA.
Compact 48-pin TSSOP surface mount package with 1mm height and 12.5mm length.
Low static power consumption around 0.4µW.

Product Description

Renesas Electronics 74ALVC164245PAG bus transceiver is a 16-bit, non-inverting device with 3 state outputs designed for asynchronous communication between data buses. It supports dual supply rails enabling level shifting between 3.3V on the A port and 5V on the B port. This capability makes it an ideal choice for applications that require translation between different voltage levels, such as interfacing 3.3V logic with 5V systems.

The device operates reliably in a temperature range from -40°C to 85°C and exhibits a low maximum propagation delay time of 5.8 nanoseconds, ensuring fast data transfer. CMOS input levels combined with rail-to-rail output swing provide enhanced noise margins, contributing to signal integrity.

With 16 channels and a 48-pin TSSOP surface mount package measuring 12.5 mm in length and a height of 1 mm, the 74ALVC164245PAG enables compact PCB designs. It offers robust output currents of ±50mA to drive different load conditions efficiently while maintaining a very low static power dissipation of approximately 0.4 microwatts.

This transceiver is well-suited for a wide range of industrial, electronic, and communication applications that require level shifting, bidirectional data transfer, and compatibility with mixed-voltage systems. The TSSOP packaging aids modern surface mount assembly lines for compact and automated production processes.

Supports dual supply voltages facilitating 3.3V to 5V translation. High speed with maximum propagation delay of 5.8 ns under load. Wide operating temperature range from -40°C to +85°C. Features rail-to-rail output swing for noise robustness.

Low static power consumption reduces energy usage. 16 channels allow multi-line data bus interfacing. Compact 48-pin TSSOP package for surface mounting. Maximum output current ±50 mA suits varied load requirements. Reliable device for electronic system level communication and industrial controls.
