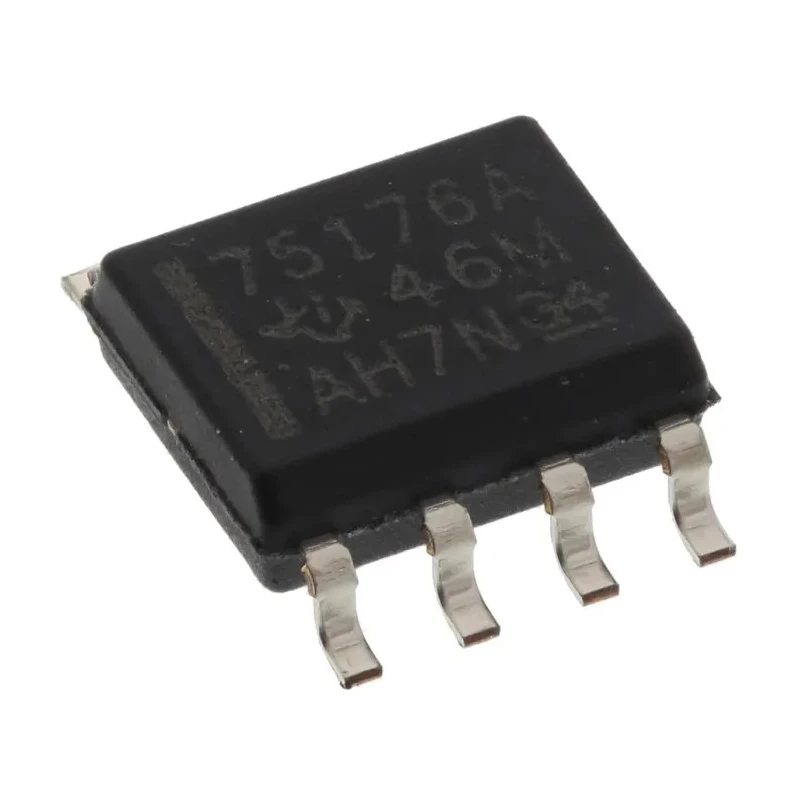

Texas Instruments Line Transceiver Differential Non-Inverting 8-Pin SOIC SN75176AD

Texas Instruments SN75176AD is a line transceiver designed for differential, non-inverting bus communication typical in RS-485 applications. Packaged in a compact 8-pin SOIC surface mount format, this IC offers a supply voltage range from 4.75 V to 5.25 V with low supply current consumption of 50 mA, optimizing power efficiency in embedded and industrial control systems.

The device supports a single channel with differential input and output, ensuring high signal integrity and noise immunity on communication buses. It delivers a maximum propagation delay time of 35 ns under standard load conditions and can handle output current loads of ±60 mA, enabling robust driving of long bus lines and facilitating high-speed data transmission.

Operating reliably in temperatures from 0°C up to 70°C, this line transceiver IC is suited to a variety of industrial, laboratory, manufacturing, communication, and automation environments. It is ideal for applications demanding increased noise resistance and reliable data communication on RS-485/RS-422 serial buses.

The package dimensions (5 mm length × 3.98 mm width × 1.75 mm height) provide a small form factor for space-constrained PCB designs. Operates at a supply voltage range between 4.75 V and 5.25 V. Supports differential input and output signals for improved noise immunity.

Non-inverting polarity ensures consistent and stable signal transmission. Compact 8-pin SOIC package offers facile surface mount assembly. Low 50 mA supply current reduces overall system power consumption. Wide operating temperature range of 0°C to 70°C suits diverse environments.

Maximum propagation delay time of 35 ns enables high-speed communication. Output current capacity of ±60 mA supports robust bus line driving. No automotive certifications indicating suitability for general industrial and commercial applications.

This RS-485 line transceiver from Texas Instruments is widely applicable across industrial automation, instrumentation, data acquisition systems, and communication networks requiring reliable differential signaling and fast data rates. It supports design optimization with its standardized SOIC package and precise electrical characteristics.
