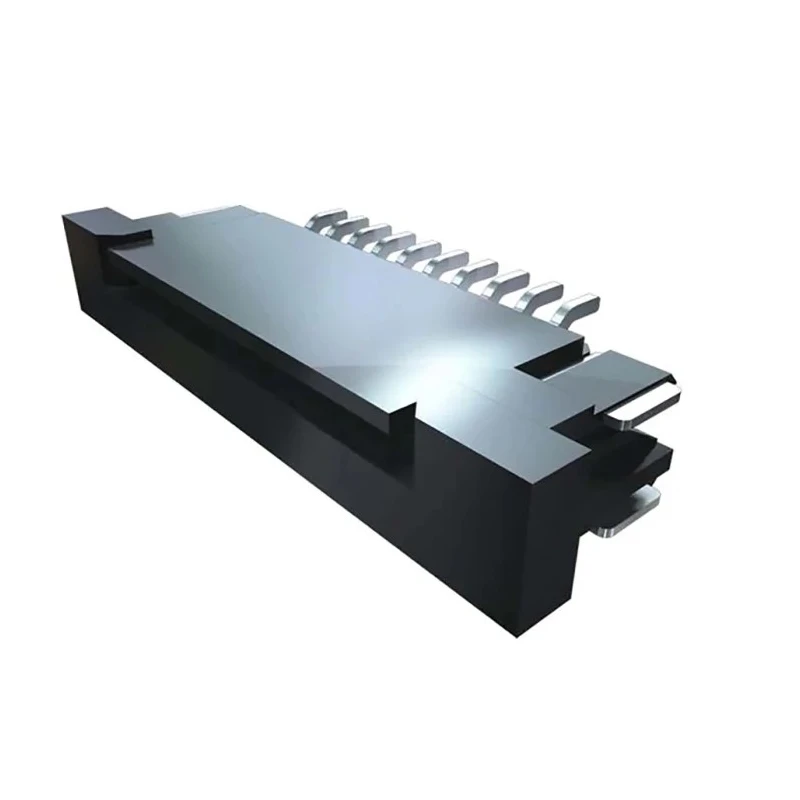

Samtec 1 mm Pitch 16 Way Horizontal Female Edge Connector, Solder, Surface Mount, 200V, ZF1-16-01-T-WT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Samtec |
| Orientation | Horizontal |
| Current | 2.9A |
| Model | ZF1-16-01-T-WT |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ZF1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | FFC |
| Minimum Operating Temperature | -30°C |
| Pitch | 1mm |
| Contact Plating | Matt Tin |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features a zero insertion force (ZIF) design for easy connector insertion and removal.
- Constructed with phosphor bronze contacts plated in matt tin for reliable electrical performance.
- Rated for a current of 2.9 amperes and voltage of 200 volts.
- Housing made from liquid crystal polymer ensuring durability and stability.
- Operating temperature ranges from -30°C to 80°C.
- Designed for horizontal orientation with bottom contact position.
- Compliant with RoHS standards for environmental safety.
- Ideal for flexible flat cable (FFC) applications requiring a compact 1 mm pitch.
Product Description
The Samtec ZF1-16-01-T-WT is a high-quality 16-contact female edge connector designed for flexible flat cable (FFC) applications, featuring a 1 mm pitch and horizontal orientation. Its zero insertion force (ZIF) mechanism facilitates easy connection and disconnection, minimizing wear and enhancing reliability in electronic assemblies.
Constructed with phosphor bronze contacts plated with matt tin, this connector offers excellent electrical conductivity and corrosion resistance. The liquid crystal polymer housing provides robust mechanical stability and performance even in demanding environments.
It supports a current rating of 2.9 A and an operating voltage up to 200 V, making it suitable for various PCB and wire housing applications in industrial, electronic component manufacturing, and power connector environments.
The connector is surface mount type with bottom contact position ensuring easy PCB integration in horizontal layouts. It operates safely within a temperature range of -30°C to +80°C, providing reliable function under varying environmental conditions.
This product complies with RoHS directives, confirming its environmental conformity and suitability for modern electronics applications requiring regulatory compliance. Zero insertion force design for easy mating and endurance.
Phosphor bronze contacts with matt tin plating for reliable performance. Compact 1 mm pitch suitable for dense PCB layouts. Liquid crystal polymer housing for thermal and mechanical stability. Surface mount with horizontal orientation for flexible PCB design.
Operating range from -30°C to 80°C ensures versatility. Rated for 2.9 A at 200 V for low-power electronic applications. RoHS compliant for environmental safety.
The Samtec ZF1-16-01-T-WT Edge Connector is widely used in electronics, power connectors, and industrial equipment requiring compact, reliable, and easy-to-install cable interconnections. This makes it suitable for electronic component manufacturing and assembly lines, laboratory equipment wiring, and commercial electronic devices.
Explore the extensive range of high-quality connectors and electronic components available at EnvMart to meet your design and production requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a current of 2.9 amperes and a voltage of 200 volts.
It features a surface mount design, which ensures easy integration onto PCBs.
This edge connector has a pitch of 1 mm, making it suitable for dense PCB layouts.
It is constructed with phosphor bronze contacts plated in matt tin and a housing made from liquid crystal polymer.
The operating temperature ranges from -30°C to +80°C, allowing it to function in various environments.
It is designed for horizontal orientation with a bottom contact position.
Yes, it is compliant with RoHS standards for environmental safety.
The connector features a solder termination type, ensuring a secure connection.
This model has 16 contacts, allowing for multiple connections in a compact design.
It is ideal for flexible flat cable (FFC) applications and various PCB and wire housing applications in electronic component manufacturing.
It features a zero insertion force (ZIF) design, which facilitates easy connector insertion and removal.
The connector is manufactured in India.
