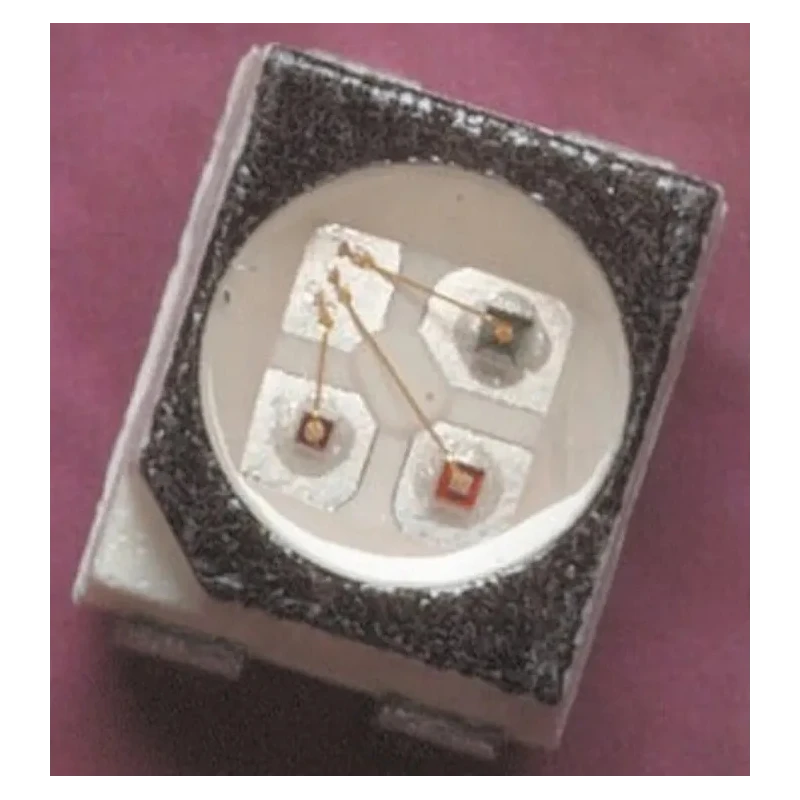

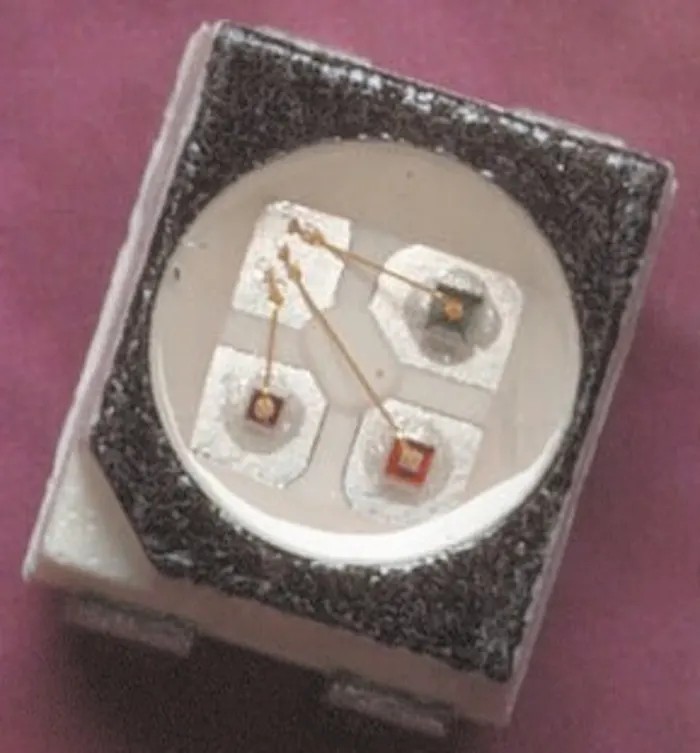

Broadcom 2.2 V Green, Red LED PLCC 4 Surface Mount Indicator HSMF-A203-A00J1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMF-A203-A00J1 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Number Of Leds | 2 |
| Maximum forward current | 20mA |
| Viewing angle | 120 ° |
| Package Type | PLCC 4 |
| LED Colour | Green, Red |
| Dominant Wavelength | 626nm |
| Forward Voltage | 2.2V |
| Number of Pins | 4 |
| LED Luminosity | 8 mcd |
| Maximum Power Dissipation | 52mW |
| Lens Dimensions | 3.2 x 2.8 x 1.8 mm |
| Lens Shape | Round |
Key Features
- This LED indicator features green and red colors for versatile signaling applications.
- It supports a maximum forward current of 20mA ensuring reliable operation.
- The LED has a wide 120° viewing angle for excellent visibility.
- Compact PLCC-4 package dimensions measure 3.2 x 2.8 x 1.8 mm for easy integration.
- High brightness of 8 mcd and dominant wavelength of 626nm improve display clarity.
- Constructed with enhanced silicone resin material for durability and high reliability.
- The flat top and round lens shape aid compatibility with light pipes.
- Designed for surface mount assembly in automotive, industrial, and office equipment.
Product Description
Broadcom HSMF-A203-A00J1 is a bi-colour light-emitting diode (LED) designed for surface mount applications. Operating at a forward voltage of 2.2 V, this LED features green and red colors emitted from two LEDs housed in the industry-standard PLCC-4 package measuring 3.2 x 2.8 x 1.8 mm. Its enhanced silicone resin construction results in high brightness and reliability suitable for demanding environments.
The LED indicator provides a wide viewing angle of 120°, making it highly visible from various directions. Its forward current rating of 20mA coupled with a power dissipation of 52mW ensures efficient and stable illumination. The 8 mcd luminosity and dominant wavelength of 626nm deliver bright and distinct light output.
The flat top surface with a round lens shape facilitates easy mating with light pipes, ideal for interior automotive lighting, industrial machinery indicators, office equipment displays, and home appliance signaling. Broadcom's HSMF series is known for its durability and consistent performance even in harsh interior environments. This product is supplied in Tape & Reel packaging, optimized for automated PCB assembly and surface mount technology processes.
This PLCC-4 surface mount LED features two distinct colors: green and red. Provides a wide 120° viewing angle for clear indication over broad areas. Compact lens dimensions and a round shape suit variety of lighting applications.
High reliability silicone resin material ensures long service life. Forward voltage of 2.2 V with maximum forward current of 20mA supports efficient powering. Dominant wavelength of 626nm contributes to excellent color purity.
Designed for automotive interior, office, industrial, and home appliance usage. Supplied in Tape & Reel packaging for easy surface mount assembly.
Broadcom LEDs are suitable for industrial, automotive, and consumer electronic applications requiring high reliability and clear bi-colour indication. Discover more components in the EnvMart LED category for diverse lighting solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED indicator is 2.2 V.
This model supports a maximum forward current of 20mA.
The PLCC-4 package dimensions measure 3.2 x 2.8 x 1.8 mm.
It has a wide viewing angle of 120° for excellent visibility.
The dominant wavelength of the emitted light is 626nm.
The LED has a luminosity of 8 mcd.
The maximum power dissipation for this model is 52mW.
This LED is supplied in Tape & Reel packaging, optimized for automated PCB assembly.
This LED is suitable for automotive interior lighting, industrial machinery indicators, office equipment displays, and home appliance signaling.
This model contains two LEDs, one green and one red.
The lens shape of this LED is round, which aids compatibility with light pipes.
The country of origin for this product is India.
