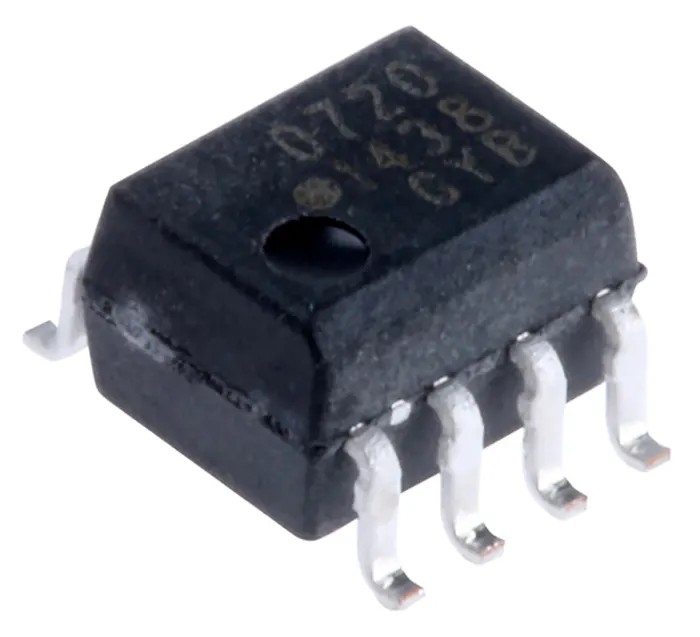

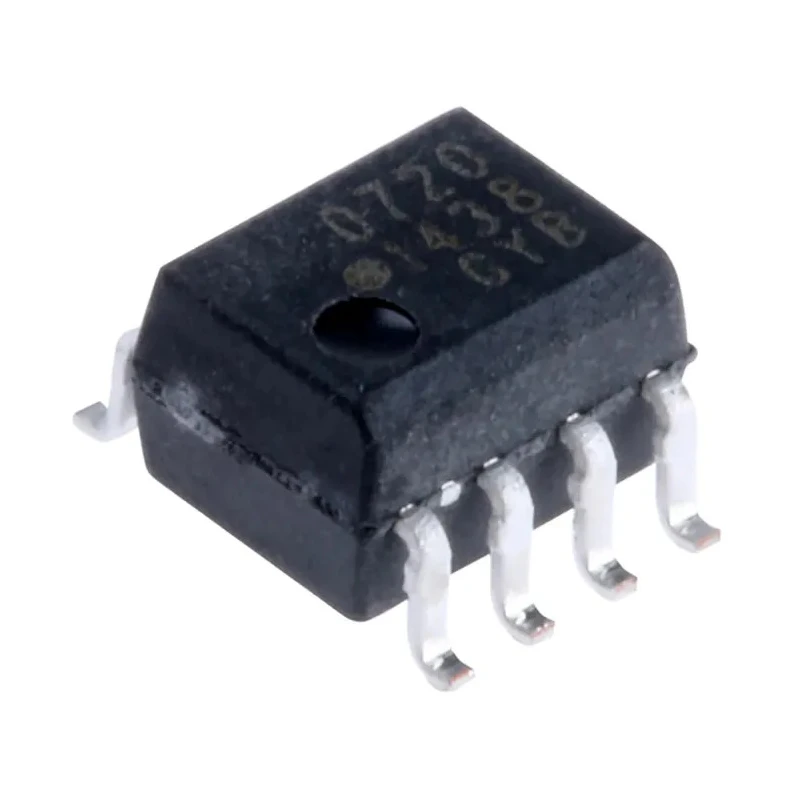

Broadcom DC Input Optocoupler Surface Mount 8-Pin SOIC Package HCPL-0720-000E

Broadcom HCPL-0720-000E is a high-speed DC input optocoupler designed for electrical isolation in electronic circuits. It features a single channel with an 8-pin SOIC surface mount package for compact PCB integration.

The device supports a maximum forward LED voltage of 6.5 V and an input current of up to 10 μA, making it suitable for sensitive signal applications. Its electrical isolation voltage rating of 3750 V AC ensures robust isolation between input and output sections, enhancing system safety and reliability.

Typical switching times include 9 nanoseconds rise time and 8 nanoseconds fall time, supporting high-speed digital communication. The logic output is compatible with CMOS logic gates, enabling ease of interface with modern digital electronics.

Operating in a wide temperature range from -40°C to 85°C, this optocoupler is suitable for industrial, instrumentation, and communication equipment applications requiring dependable signal isolation.

Optocoupler designed for DC input signal isolation. Surface mount package type SOIC with 8 pins. Maximum forward voltage of 6.5 volts for input LED. Single channel device suitable for digital isolation. Electrical isolation voltage of 3750 volts AC for safety compliance.

Provides logic output compatible with CMOS logic families. Typical rise and fall times of 9 and 8 nanoseconds respectively. Operating temperature range from minus 40°C to plus 85°C. Complies with UL 1577, CSA Notice 5, and IEC/EN/DIN EN 60747-5-5 standards.

This optocoupler is ideal for electronic component applications requiring reliable electrical isolation, including industrial control systems, data communication, and power supply circuits. Its compact surface mount form factor facilitates high-density PCB designs.

Explore more Optocoupler products and related electronic components in the Electronics & Electricals category at EnvMart.
