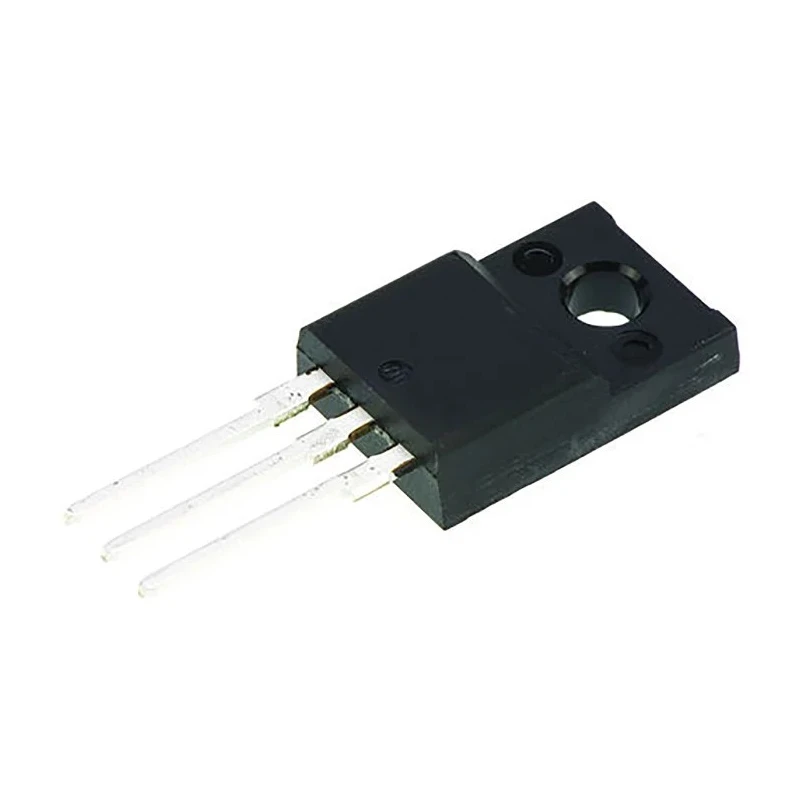

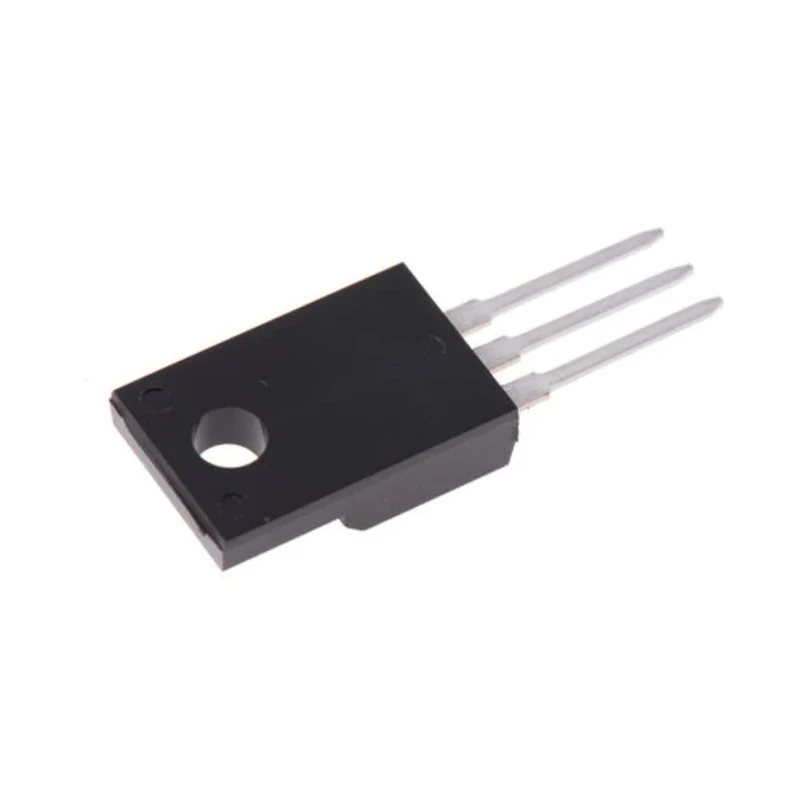

STMicroelectronics 60 V 10 A Schottky Diode 3-Pin TO-220ABFP STPS10L60CFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STPS10L60CFP |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220ABFP |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 220μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 0.52V |
Key Features
- Schottky barrier design with low 0.52 V forward voltage drop.
- Maximum continuous forward current of 10 A for reliable power handling.
- Peak reverse voltage rating of 60 V to protect circuits.
- Supports peak non-repetitive forward surge current of 180 A.
- Wide operating temperature range from -65°C to 150°C.
- 3-pin common cathode configuration for through-hole mounting.
- Compact TO-220ABFP package with dimensions 10.4 mm x 9.3 mm x 4.6 mm.
- Low peak reverse current of 220 μA to minimize leakage.
Product Description
STMicroelectronics STPS10L60CFP is a high-performance Schottky diode designed for power rectification and switching applications requiring robust current handling and low forward voltage drop. Boasting a maximum continuous forward current of 10 amperes and a peak reverse voltage of 60 volts, this 3-pin device in a TO-220ABFP package offers reliable performance in demanding electronic circuits.
The Schottky barrier rectifier technology ensures minimal forward voltage drop of 0.52 volts, enhancing overall energy efficiency and thermal management during operation. It supports a peak non-repetitive forward surge current of 180 amperes, allowing transient overcurrent handling during load changes or startup conditions.
The diode operates over a wide temperature range from -65°C to 150°C, making it suitable for industrial, power supply, automotive (non-automotive certified), and HVAC systems. The three-pin common cathode configuration facilitates easy through-hole mounting and soldering on PCBs.
With compact dimensions of 10.4 mm length, 9.3 mm height, and 4.6 mm width, the device fits efficiently in constrained spaces without compromising electrical performance. Its low peak reverse current of 220 microamperes reduces leakage current, improving reliability and longevity.
This STMicroelectronics Schottky diode is ideal for industrial electronics, power supplies, switching regulators, and rectifier circuits. Through-hole mounting provides mechanical robustness for assembly and maintenance.
It complies with standard semiconductor quality ensuring consistent operation and durability. The diode is not automotive certified but suitable for general industrial use. Discover more electronics components and power semiconductors in EnvMart’s extensive catalog for industrial and laboratory applications.
Explore more products in our Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the STMicroelectronics STPS10L60CFP Schottky diode is 10 A.
This diode has a peak reverse voltage rating of 60 V, which helps protect circuits from voltage spikes.
The forward voltage drop for this Schottky diode is low at 0.52 V, enhancing energy efficiency during operation.
It supports a peak non-repetitive forward surge current of 180 A, allowing it to handle transient overcurrent conditions.
The operating temperature range for this model is from -65°C to 150°C, making it suitable for various applications.
The STPS10L60CFP comes in a TO-220ABFP package with a common cathode configuration for through-hole mounting.
The dimensions of the STMicroelectronics STPS10L60CFP are 10.4 mm in length, 9.3 mm in height, and 4.6 mm in width.
The peak reverse current for this model is 220 μA, which helps minimize leakage current.
This diode is suitable for industrial electronics, power supplies, switching regulators, and rectifier circuits.
The STPS10L60CFP has a total of 3 pins.
The country of origin for the STMicroelectronics STPS10L60CFP is India.
This model is a Schottky rectifier, known for its low forward voltage drop and fast switching capabilities.
