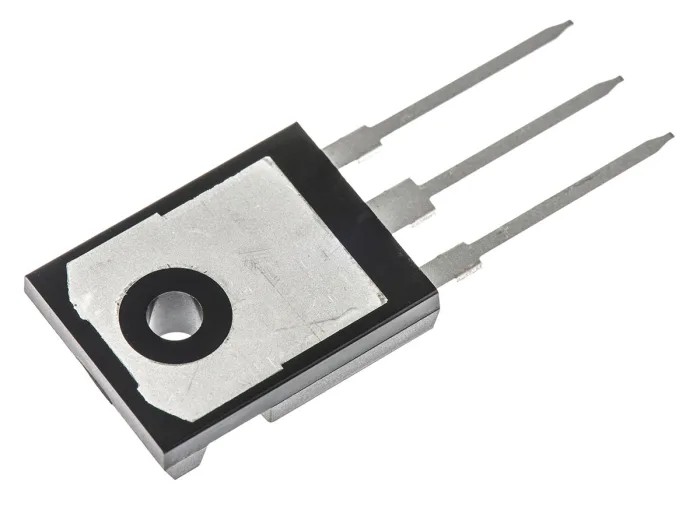

STMicroelectronics 300 V 30 A Switching Diode Through Hole TO-247 Package STTH3003CW
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STTH3003CW |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | STTH3003C |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 300V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 40μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 140A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 40ns |
| Vishay Diode, FEP16DTBrand | Vishay |
| Vishay 200 V 16 A Diode General Purpose 3-Pin TO-220AB FEP16DT-E3/45Brand | Vishay |
Key Features
- Maximum continuous forward current of 30 A for high power applications.
- Peak reverse repetitive voltage rated at 300 V ensuring reliability under voltage stress.
- Standard TO-247 package suitable for effective heat dissipation.
- Common cathode diode configuration optimized for switching performance.
- Peak forward surge current capacity of 140 A for transient overload tolerance.
- High operating temperature range from -65°C to 175°C for robust industrial use.
- Fast peak reverse recovery time of 40 ns to improve switching efficiency.
- Forward voltage drop of 1.25 V minimizing conduction losses.
Product Description
STMicroelectronics STTH3003CW is a high-performance switching diode rated for 300 V peak reverse voltage and 30 A maximum continuous forward current, packaged in a durable 3-pin TO-247 form factor for through hole mounting.
This diode offers a common cathode configuration ideal for power electronics circuits requiring reliable switching operations and high surge current tolerance. Its fast recovery time of 40 nanoseconds and low forward voltage drop of 1.25 V reduce power losses and improve overall efficiency in switching applications.
The device operates over a wide temperature range from -65°C up to 175°C, making it suitable for demanding industrial, manufacturing, and electronic power converter applications. The TO-247 package provides excellent thermal dissipation characteristics, supporting stable operation in high power environments.
Maximum continuous forward current of 30 A supports heavy load demands. Peak reverse voltage of 300 V ensures robust voltage blocking capability. Fast recovery switching diode ideal for power supply and inverter circuits.
Wide operating temperature range enhances durability and reliability. Standard through hole package for ease of installation and replacement. Conforms to industry performance standards with no automotive compliance. This diode is widely used in industrial power supplies, motor control, and electronic switching applications where efficiency and thermal management are critical.
Explore additional high-quality semiconductor components and switching diodes at EnvMart for all your electronic design and production needs.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 30 A, making it suitable for high power applications.
It has a peak reverse repetitive voltage rating of 300 V, ensuring reliability under voltage stress.
This diode is packaged in a TO-247 form factor, which is designed for through hole mounting.
The forward voltage drop is 1.25 V, which helps minimize conduction losses during operation.
It can handle a peak forward surge current capacity of 140 A, allowing for transient overload tolerance.
The operating temperature range is from -65°C to 175°C, making it suitable for robust industrial use.
The peak reverse recovery time is 40 ns, which improves switching efficiency in applications.
The TO-247 package has a pin count of 3.
It features a common cathode diode configuration, optimized for switching performance.
This model is classified as a switching rectifier, suitable for power electronics circuits.
The country of origin for this diode is India.
This diode is widely used in industrial power supplies, motor control, and electronic switching applications.
