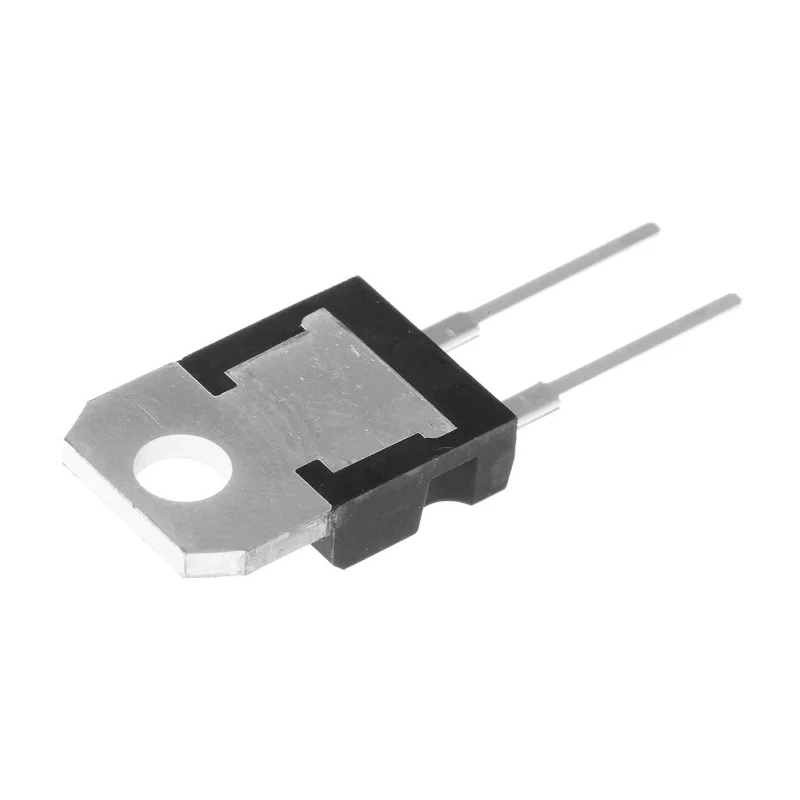

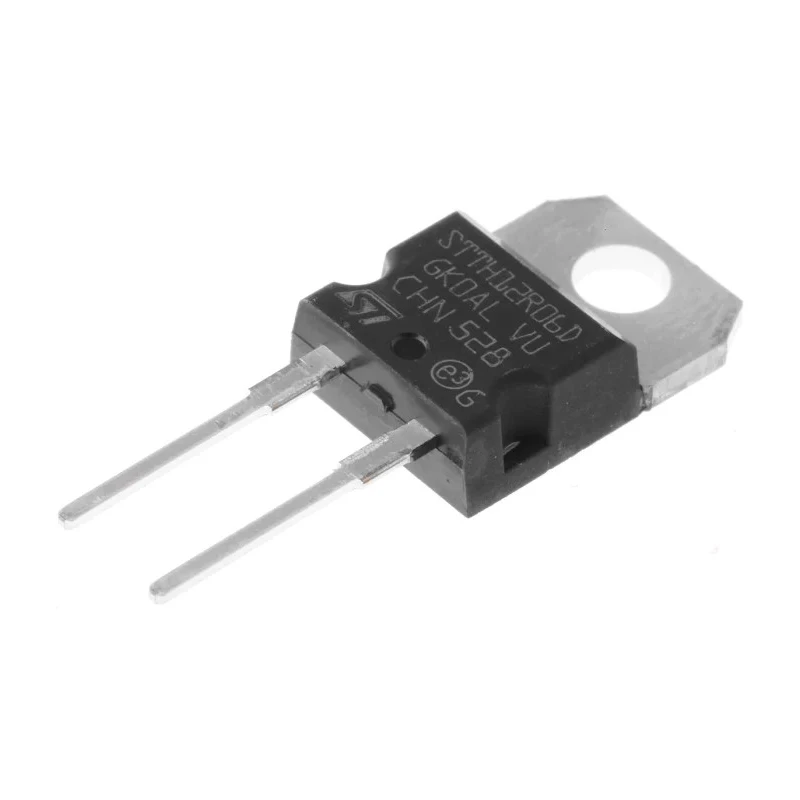

STMicroelectronics 600 V 12 A Switching Diode TO-220AC STTH12R06D
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.75mm |
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STTH12R06D |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STTH12R06 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 45μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 2.9V |
| Peak Reverse Recovery Time trr | 25ns |
Key Features
- Supports a maximum continuous forward current of 12 amperes.
- Peak reverse repetitive voltage rating of 600 volts ensures robust operation.
- Low peak reverse current of 45 microamperes guarantees minimal leakage.
- Fast switching capability with a peak reverse recovery time of 25 nanoseconds.
- Maximum forward voltage drop of 2.9 volts minimizes power loss.
- Wide operating temperature range from -65°C to 175°C for reliability in harsh environments.
- Complies with RoHS standards for environmental safety.
- Suitable for power rectification, switching circuits, and other high-current applications.
Product Description
STMicroelectronics STTH12R06D is a robust 600 V, 12 A single switching diode packaged in a 2-pin TO-220AC through-hole mount. This Semiconductor Diode is designed to deliver high efficiency and reliability in industrial and electronic circuit applications requiring fast switching and power rectification.
With a maximum continuous forward current of 12 amperes and peak reverse repetitive voltage of 600 volts, it handles significant electrical loads while maintaining low power dissipation. The peak forward voltage of 2.9 volts ensures efficient conduction with minimal voltage drop.
The device features a very fast peak reverse recovery time of just 25 nanoseconds and a very low peak reverse current of 45 microamperes, optimizing circuit switching performance and minimizing energy losses.
This diode operates reliably in a wide temperature range, from minus 65 degrees Celsius to a maximum of 175 degrees Celsius, making it suitable for demanding industrial environments including power supply circuits, motor drives, and switch-mode power supplies.
Its compact physical dimensions - 10.4 mm length, 4.6 mm width, 9.3 mm height, and a diameter of 3.75 mm - allow it to be easily mounted on standard through-hole PCB designs using the TO-220AC package format.
The STTH12R06D complies with RoHS environmental standards, assuring it is free from hazardous substances and suitable for use in environmentally sensitive applications. Supports up to 12 A continuous forward current. 600 V peak repetitive reverse voltage rating.
Fast switching with 25 ns peak reverse recovery time. Low leakage current at 45 μA peak reverse current. Wide temperature operation from -65°C to 175°C. Compact TO-220AC package for standard through-hole mounting. Compliant with RoHS standards.
This diode is ideal for industrial electronics, power conversion, automotive electronics, and other applications requiring efficient and reliable switching and rectification. Explore our comprehensive catalog at EnvMart for more semiconductor components by STMicroelectronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the STMicroelectronics STTH12R06D is 12 amperes.
This model has a peak reverse repetitive voltage rating of 600 volts.
The peak reverse recovery time is 25 nanoseconds, allowing for fast switching capabilities.
The maximum forward voltage drop for this diode is 2.9 volts, which minimizes power loss during operation.
The dimensions are 10.4 mm in length, 4.6 mm in width, and 9.3 mm in height, with a diameter of 3.75 mm.
It operates reliably in a wide temperature range from -65°C to 175°C.
The peak reverse current is 45 microamperes, ensuring minimal leakage.
This diode uses a through-hole mounting type, packaged in a TO-220AC format.
Yes, it complies with RoHS standards, ensuring it is free from hazardous substances.
It is suitable for power rectification, switching circuits, and other high-current applications.
The peak non-repetitive forward surge current rating is 100 amperes.
This diode has a pin count of 2.
