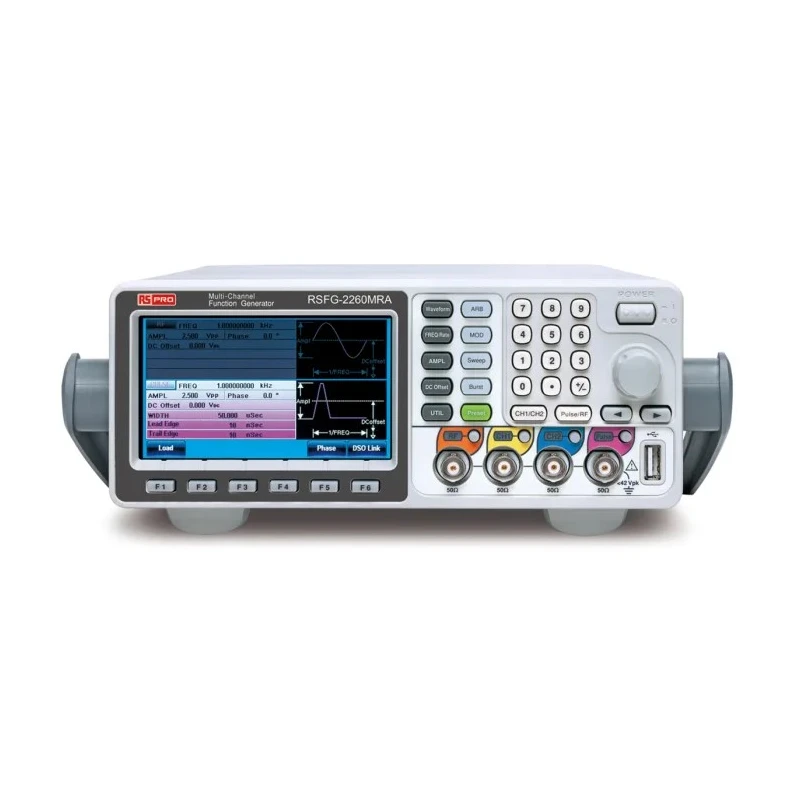

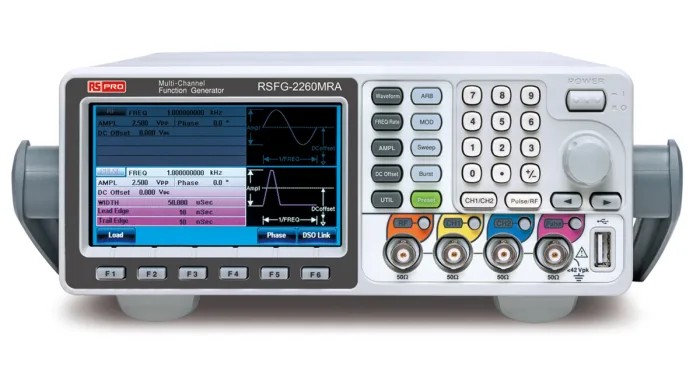

RS PRO Function Generator 25 MHz Max Frequency, 5 Channels, FM Modulation RSFG-2260MRA

RS PRO RSFG-2260MRA is a professional-grade function generator designed for industrial, laboratory, and educational applications requiring precise waveform generation up to 25 MHz frequency. Featuring 5 output channels, including dual arbitrary waveform channels, it supports complex waveform synthesis including sine, square, triangle, and customizable arbitrary waveforms. The device incorporates FM modulation and additional modulation schemes (AM, PM, FSK, PWM) for advanced signal testing.

The model includes a high-resolution 4.3 inch TFT colour display facilitating intuitive operation even for novice users. A built-in pulse generator lets users tailor pulse width, duty cycle, and rise/fall edge timing critical for trigger signal applications. Internal linear and logarithmic sweep functions allow dynamic frequency scanning suitable for various test scenarios.

This function generator offers RS PRO’s standard quality with a 50 Ω output impedance and 1kΩ input impedance, ensuring compatibility with a wide range of measurement equipment. The digital amplitude and offset capability enable precise signal adjustment for accurate experimentation and diagnostics. Designed to operate reliably between 0°C and 40°C, it features robust construction compliant with CE and IEC standards.

The RSFG-2260MRA interfaces via LAN and USB, providing seamless integration with computer-controlled test setups and waveform editing software, enabling users to edit and output from 66 built-in segments or custom waveforms. Its compact footprint measuring 266 mm by 293 mm by 107 mm, and lightweight design at 2.5 kg makes it convenient for laboratory bench use and portable testing.

Ideal for industrial manufacturing, electronic equipment testing, telecommunications, and RF lab environments, this function generator supports high-frequency applications including frequency counters (up to 150 MHz) and RF signal generation up to 320 MHz. Included features such as TTL output level of 4 V peak-to-peak and 20 dB attenuation add versatility for varied experimental setups.

Package contents include the RS PRO RSFG-2260MRA function generator unit and standard accessories for immediate deployment in professional test platforms. Offers 5 output channels including arbitrary and pulse outputs. Supports FM modulation along with AM, PM, FSK, and PWM modulation types.

Equipped with a clear 4.3 inch TFT colour display for easy navigation. Includes a built-in pulse generator with configurable pulse width and duty cycle. Supports internal linear and logarithmic sweep functions. Provides 50Ω output impedance and 1kΩ input impedance for compatibility.

Features digital amplitude and offset control for waveform precision. Operates reliably in temperature range from 0°C to 40°C. Interfaces include LAN and USB for versatile connectivity. Compact dimensions of 266mm length, 293mm width, and 107mm height.
