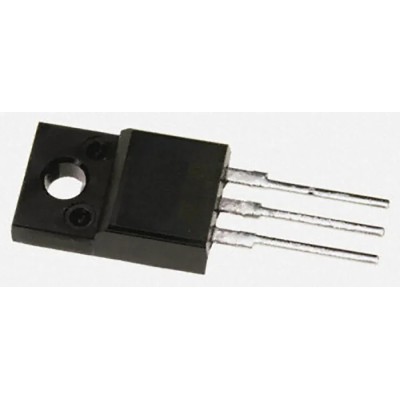

STMicroelectronics 45 V 30 A Schottky Diode 3-Pin Through Hole TO-220AB STPS3045CT

STMicroelectronics STPS3045CT is a high-performance 45 V 30 A Schottky diode housed in a 3-pin TO-220AB package for through-hole mounting. It is designed for efficient and reliable power rectification in various industrial electronic circuits.

This diode features a maximum continuous forward current of 30 A, making it suitable for demanding power applications. Its peak reverse repetitive voltage of 45 V ensures robust protection against voltage spikes.

The device exhibits a low forward voltage drop of 0.5 V, contributing to higher efficiency by reducing power losses. Operating temperature ranges from -65°C up to 175°C allow it to function reliably under harsh environments.

The diode supports peak non-repetitive forward surge currents of up to 220 A, allowing it to handle transient surges without damage. The common cathode configuration and 3-pin design facilitate flexible integration into circuits.

Its compact dimensions (10.4 mm length, 4.6 mm width, 9.15 mm height) allow efficient PCB layout while maintaining excellent thermal performance. The peak reverse current is limited to 200 μA, indicating superior leakage performance.

It is suitable for a wide range of industrial, automotive, power supply, and electronic manufacturing applications requiring high current rectification with fast switching speeds. Supports up to 30 amperes of continuous forward current.

Rated for 45 volts peak reverse voltage for robust operation. Low maximum forward voltage of 0.5 volts for energy-efficient operation. Wide operating temperature range from -65°C to 175°C. Handles surge currents up to 220 amperes safely.

Compact TO-220AB mounting package for easy installation. Common cathode 3-pin configuration for versatile circuit designs. Low peak reverse leakage current of 200 microamperes.

This Schottky Diode is offered new and ready to integrate into your semiconductor assemblies. It meets industrial standards for discrete semiconductors and is ideal for power & connector electronics sectors.
