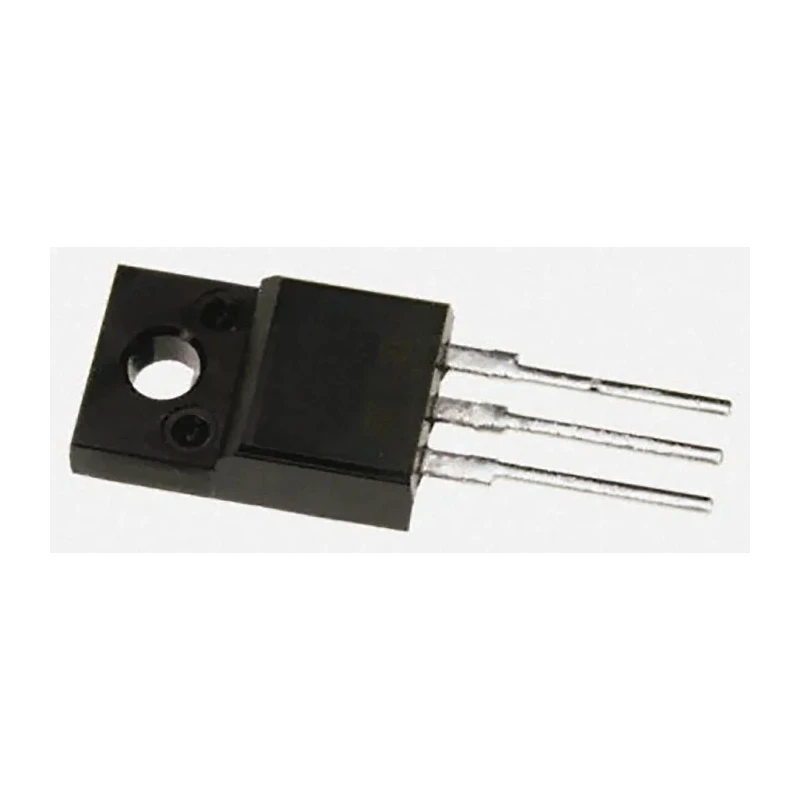

STMicroelectronics 45 V 30 A Schottky Diode, 3 Pin TO-220ABFP STPS30L45CFP

The STMicroelectronics STPS30L45CFP is a robust Schottky diode presenting a maximum continuous forward current of 30 A and a peak reverse voltage rating of 45 V, housed in a 3-pin TO-220ABFP package designed for through-hole mount applications.

With a low forward voltage drop of 0.5 V, this diode efficiently minimizes power dissipation, making it ideal for high-frequency rectification and power management in industrial, electronic, and power supply systems.

Engineered for durability, the diode features an extensive operating temperature range from -65°C to 150°C, ensuring consistent performance under harsh environmental conditions common in manufacturing and industrial setups.

Its peak non-repetitive forward surge current of 220 A provides significant robustness against transient overcurrent events, further enhancing reliability in demanding applications.

The common cathode diode configuration suits it for flexible rectifier circuit designs. The compact package dimensions of length 10.4 mm, height 9.3 mm, and width 4.6 mm allow for efficient placement on printed circuit boards in constrained spaces.

This Schottky Diode is a suitable component for electronics engineers and designers targeting power rectification in industrial and commercial electronic devices, power supplies, and switching power circuits.

The diode features a 3-pin TO-220ABFP package suitable for through-hole mounting. It has a low forward voltage drop of 0.5 V ensuring efficient power rectification. The device operates reliably between temperatures of -65°C to 150°C.

Its peak non-repetitive forward surge current rating is 220 A, providing high transient current capability. The diode configuration is common cathode, ideal for various rectifier applications. Compact dimensions of 10.4 mm length, 9.3 mm height, and 4.6 mm width facilitate easy PCB integration.

This component is designed without automotive certification and standards approvals. Peak reverse current is 400 μA, making it suitable for power electronics and industrial circuits. Explore a broad range of semiconductor components and other electronic devices designed for industrial, manufacturing, and electronic development purposes at EnvMart.
