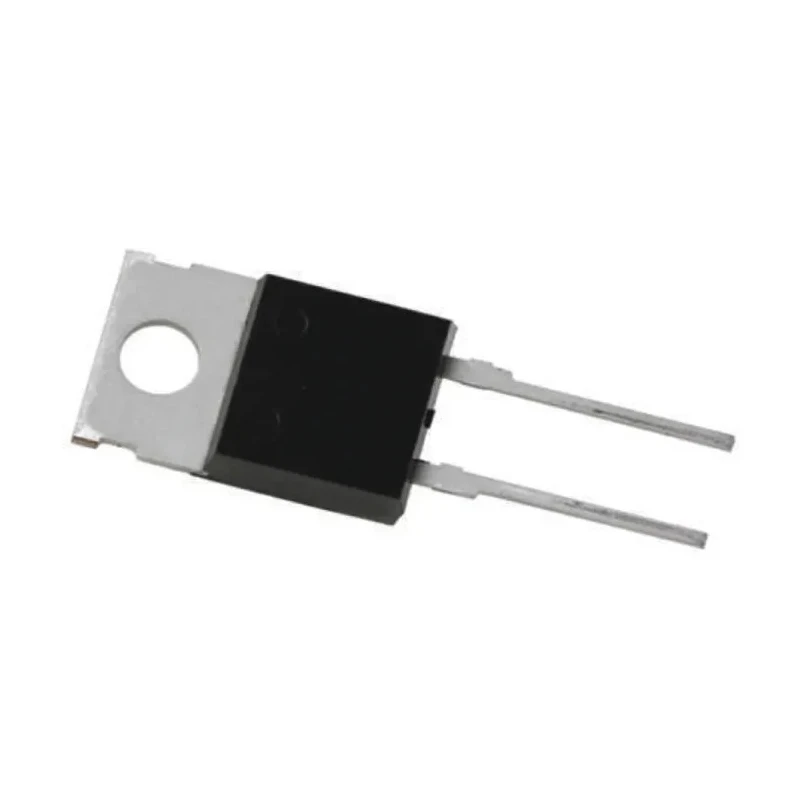

STMicroelectronics 600 V 8 A Switching Diode 2-Pin TO-220AC STTH8R06D
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3mm |
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STTH8R06D |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STTH8R06 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 30μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 2.9V |
| Peak Reverse Recovery Time trr | 45ns |
Key Features
- Supports a maximum continuous forward current of 8A.
- Maximum peak reverse repetitive voltage is 600V.
- Peak non-repetitive forward surge current rated at 80A.
- Maximum forward voltage drop is 2.9V ensuring efficient conduction.
- Low peak reverse current of 30μA for reduced leakage.
- Fast peak reverse recovery time of 45 nanoseconds improves switching performance.
- Operating temperature range from -65°C to 175°C for diverse environments.
- Compact TO-220AC industry-standard through-hole package.
Product Description
STMicroelectronics STTH8R06D is a high-performance switching diode designed for power applications requiring reliable and efficient rectification. Rated for a maximum continuous forward current of 8 amperes and a peak reverse repetitive voltage of 600 volts, it supports demanding industrial loads and switching circuits.
The diode’s peak forward surge current capability of 80 amperes enables it to withstand transient currents without damage, ensuring durability in harsh electrical environments.
Featuring a low maximum forward voltage of 2.9 volts and a peak reverse current of just 30 microamperes, the STTH8R06D minimizes power losses and leakage, contributing to energy efficient designs.
Its peak reverse recovery time of 45 nanoseconds enhances switching speeds, making it suitable for fast-switching power supply and motor control circuits. The diode operates reliably across a broad temperature range from -65°C to 175°C, suitable for a wide variety of industrial, automotive, and commercial applications.
Packaged in the robust TO-220AC through-hole format, it facilitates easy mounting on boards and heat sinks to manage thermal dissipation effectively. Manufactured in compliance with RoHS directives, it meets environmental safety standards without compromising performance.
Supports a maximum continuous forward current of 8A. Rated for 600V peak reverse voltage. Has peak surge current capability of 80A. Maximum forward voltage of 2.9V ensures low conduction losses. Low leakage current at 30μA for efficiency.
Fast recovery time of 45ns suitable for switching applications. Wide operating temperature range from -65°C to 175°C. Utilizes standard TO-220AC package for easy installation. Environmentally compliant with RoHS standards.
Ideal for industrial electronics, power supplies, and switching devices. Source category: Electronics & Electricals > Semiconductor > Schottky Diodes & Rectifiers. Explore more from STMicroelectronics at EnvMart.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 8A.
It is rated for a peak reverse repetitive voltage of 600V.
The diode can handle a peak forward surge current of 80A.
The maximum forward voltage drop is 2.9V, which helps ensure efficient conduction.
The peak reverse current is rated at 30μA, contributing to reduced leakage.
The peak reverse recovery time is 45 nanoseconds, improving switching performance.
The operating temperature range is from -65°C to 175°C, making it suitable for diverse environments.
It utilizes a TO-220AC package type, which is a standard through-hole format for easy mounting.
The dimensions are 10.4mm in length, 4.6mm in width, and 9.3mm in height.
Yes, it is manufactured in compliance with RoHS directives, ensuring environmental safety.
This model is classified as a switching rectifier, suitable for power applications.
The diode has a pin count of 2, which is typical for its package type.
